| Features |

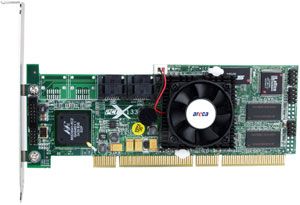

The ARC-1110 Serial ATA ll RAID host adapter is a high-performance PCI-X bus to SATA ll Disk Array host adapter. The controller can provide up to 4 SATA ll peripheral devices on a single host adapter. When properly configured, the SATA host adapter can provide non-stop service with a high degree of fault tolerance through the use of RAID technology and advanced array management features. It offers Areca the advantage of reduced engineering and development costs, by having the
The 4 port Serial ATA RAID Host adapter is low-profile PCI cards-ideal for 1U or 2U rack-mount system. It is used the same RAID kernel of its field-proven external RAID controller. |
| Architecture |
| |
Intel 80331 I/O processor |
| |
64-bit/133MHz PCI-X Bus compatible |
| |
128MB on-board DDR333 SDRAM with ECC protection |
| |
Write-through or write-back cache support |
| |
Support up to 4 Serial ATA drives |
| |
Multi-adapter support for large storage requirement |
| |
BIOS boot support for greater fault tolerance |
| |
BIOS PnP (plug and play) and BBS (BIOS boot specification) support |
| Features |
| |
RAID level 0, 1 (0+1), 3, 5 and JBOD |
| |
Multiple RAID selection |
| |
Online Array roaming |
| |
Online RAID level/ stripe size migration |
| |
Online capacity expansion and RAID level migration simultaneously |
| |
Instant availability and background initialization |
| |
Automatic drive insertion / removal detection and rebuilding |
| |
Greater than 2TB per volume set |
| |
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives |
| Monitors/Indicators |
| |
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer |
| |
SMTP support email notification |
| |
SNMP support for remote notification |
| |
I2C Enclosure management ready |
| RAID Management |
| |
Field-upgradeable firmware in flash ROM |
| In-Band Manager |
- Hot key boot-up McBIOS RAID manager via BIOS
- Support controller's API library for customer to write its own AP
- Support Command Line Interface (CLI)
- Browser-based management utility via ArcHttp Proxy Server
- Single Admin Portal (SAP) monitor utility
- Disk Stress Test (DST) utility for production in Windows
|
| Out-of-Band Manager |
- Push Button and LCD display panel
|
| Support |
Windows 2000/XP/Server 2003, Redhat Linux, SuSE Linux, FreeBSD |
| |
