C11C655051 | Epson Stylus Photo 1410 A3+ Inkjet Printer

PRINTER TYPE
PRODUCT NAME	Stylus Photo 1410
PRODUCT CODE	C11C655051
PRINTING METHOD	On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION	540 nozzles (90 per colour)
MINIMUM DROPLET SIZE	1.5pl
PRINT SPEED
BLACK TEXT (MEMO) A4	Approx. 15 PPM (Draft)*1
COLOUR TEXT (MEMO) A4	Approx. 15 PPM (Draft)*2
PHOTO 8" x 10"	111 sec+ (Photo)*3

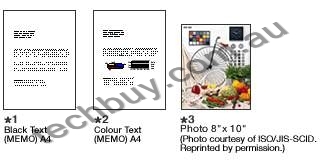

Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications.
"Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. The computer environment we test under is as follows: CPU: Pentium 4, 2.4GHz; RAM: 512MB; OS: Windows XP Professional; Interface/Connectivity: USB2.0 HighSpeed; Software: Word XP/PhotoShop7.0; Paper: Epson Premium Glossy Photo Paper, or Plain Paper *3 When printed on Epson Premium Glossy Photo Paper @ 720x720 dpi
RESOLUTION
	5760 x 1440 Optimised dpi using Resolution Performance Management (RPM) Technology
PAPER HANDLING
PAPER FEED METHOD	Friction feed with Paper Feeder
PAPER HOLD CAPACITY	Up to 120 sheets at 90gsm
PAPER SIZES	A3+, A3, A4, A5, A6, Letter, B5, Legal, Envelope, Half Letter, 4" x 6", 5" x 7", 8" x 10", 12" x 12", 3.5" x 5", 11" x 14", 11" x 17"
OPERATING SYSTEMS
PRINTER DRIVERS	Microsoft  Windows  2000 / XP/ XP-64bit / Vista* / Mac  OS X/ Tiger or 10.5*
* Drivers available are downloadable from Tech Epson
APPLICATIONS
(PRINTER SOFTWARE)	Epson Web-To-Page Epson Creativity Suite Epson Easy Photo Print Epson File Manager Epson Attach to Email Epson Print CD Epson PIF Installer Camera RAW Plug in for Creativity Suite
INTERFACES
	USB 2.0 Hi-Speed+ for PC/Mac  (cable included) PictBridge
+ To use the USB port, your PC must conform to PC98 specifications, and have Windows  2000/XP preinstalled. Consult the documentation provided with your PC for further information about USB connectivity. Note also that printing errors may occur if non-standard cables or more than two hub connections are used.
DIMENSIONS (stored)
	615mm (W) x 223mm (H) x 314mm (D)
WEIGHT
	11.5kg
WARRANTY
	12 months return to base	Standard
	Optional Additional 2 Year Warranty	3YW1410
	Epson Warranty
ENVIRONMENTAL CONDITIONS (OPERATING)
TEMPERATURE	10 ~ 35 C
HUMIDITY	20 ~ 80% RH
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE	AC 220 ~ 240V
RATED FREQUENCY	50Hz
DURABILITY
Dark storage: 200 years album storage
PAPER & INK
BLACK INK Black (T0811)	COLOUR INK Cyan (T0812), Magenta (T0813), Yellow (T0814), Light Cyan (T0815), Light Magenta (T0816)

High Capacity Black (T0811)		Approx.470 A4 pages
High Capacity Cyan (T0812)
High Capacity Magenta (T0813)		Approx.810 A4 pages (Composite Yield)
High Capacity Yellow (T0814)
High Capacity Light Cyan (T0815)
High Capacity Light Magenta (T0816)

Click here for additional yield information

PAPER & INK

The printer ships with full ink cartridges and part of the ink from the first cartridges is used for priming the printer. Yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature.

When an ink cartridge needs replacing, you cannot continue copying or printing even if the other cartridges do not need replacing.
Leave the cartridge that needs replacing installed in the printer until you have obtained a replacement. Otherwise the ink remaining in the print head nozzles may dry out.
To ensure ongoing print quality and trouble free operation, a variable amount of ink remains in cartridge after the Replace Cartridge indicator comes on.

Warning to Epson printer owners. Many well known third party companies claim their inkjet printing papers are compatible with all Epson inkjet printers. Epson has reports from many customers who have used third party's paper and have been very disappointed with the results. When the same customers have changed to genuine Epson paper, they have been amazed and pleased with the colour and quality of their prints. Epson recommends that you do not use any non genuine printing papers if you want to get the best results from your Epson printer. Epson printers are very carefully tuned to ensure Epson inks and Epson's patented MicroPiezo  printhead produce the best quality prints using carefully selected Epson paper.

All other brands of printing papers are not wholly compatible with the printer.

Link to for more information and independent studies on media durability by Wilhelm Research

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

The Epson Intellidge Ink System is designed to work perfectly in harmony with the printer and
your choice of media to ensure you get:

• the very best of print quality every print, every time
• and trouble-free, peace-of-mind printing every print, every time

The Epson Intellidge Ink System brings maximum benefits, maximum ink usage and the interchange of Epson cartridges suitable for this model.
The Epson Intellidge Ink System gives you easy-to-see, always available information about all your ink levels.

This printer is designed to be used only with
Genuine Epson Intellidge ink cartridges
Intellidge Ink cartridges are not designed for refill.

It's now easier for you to identify Genuine Epson cartridges.
Epson is gradually replacing the current hologram with the
new anti-counterfeit Color Shifting Label.

As an International ENERGY STAR Partner, Epson has determined that this product meets the International ENERGY STAR guidelines for energy efficiency. Epson is the registered trademark of Seiko Epson Corporation. Epson STYLUS, PerfectPicture, MicroPiezo, AcuPhoto Halftoning, QuickDry are the trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.
