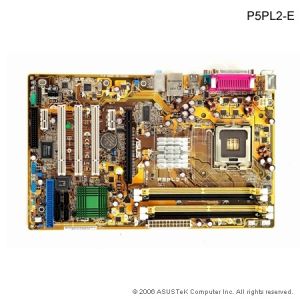

ASUS P5PL2-E Motherboard
LGA775, i945, 1066FSB, 4xDDR2-533, PCI-Ex16, 4xSATA-II, GigLAN, 6chl, ATX


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:71100
Usually Ships: No Longer Available Details
Brand:ASUS Web Site
Manuf No:P5PL2-E
 P5PL2E
Shipping Weight:2.5 KG How Much?
Date Added:27/3/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

Enhanced product of P5PL2 give you better performance.

- LGA775 socket for Intel® Core™2 Duo/Pentium D/Pentium 4/Celeron
- Intel 945+ ICH7
- FSB 1066/800/533MHz
- Dual-channel DDR2 533/400
- 1x PCI Express x16, 2XPCI Expressx1, 3xPCI
- 4x SATA 3Gb/s
- Realtek RTL8111B Gigabit LAN
- 6-channel HD Audio



LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world
Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability.

64-bit CPU support
64-bit computing, the next generation technology to replace current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.

Serial ATA 3Gb/s
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves.

ASUS Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.

6 Channel Audio & SoundMAX Digital Audio System
The SoundMAX Digital Audio System is the industry's highest performance and most reliable audio solution for business perfessionals, audiophiles, musicians, and gamers. SoundMAX Digital Audio System can output 5.1 channel surround sound and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG sound set, 5.1 Virtual TheaterTM and supports and major game audio technologies including Microsoft DirectXTM 8.0, Microsoft DirectSound 3D, A3D, MacroFX, ZoomFX, MultiDrive 5.1, A3D and EAX.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via an S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

ASUS CrashFree BIOS2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

Specification
CPU
Socket 775 for Intel Prescott/Smithfield/Cedermill/Presler/Conroe/CPU
Support Intel@ next generation 65nm(both Single & Dual Core) CPU
Support Intel@ EM64T/EIST/Hyper-Threading Technology
Chipset
Intel MCH 945
Intel ICH7
Front Side Bus
1066/800/533MHz
Memory
4x240pin DIMM, max.2GB Dual-channel DDR2 533/400
Supports non-ECC unbuffered memory
Expansion Slots
1 x PCI Express X16
2 x PCI E X1
3 x PCI(PCI2.2)
Storage
Intel ICH7 South bridge support
1 x UltraDMA 100/66/33
4 x Serial ATA ( 300MB/s)
Audio
Azalia CODEC: ADI1986A 6 channel High Definition Audio
Supports Jack Sensing & Enumeration
Supports S/PDIF out interface
LAN
Realtek RTL8111B Gigabit LAN
USB 2.0
8 x USB 2.0/USB1.1 ports
ASUS Features
ASUS CrashFree BIOS2
ASUS MyLogo
Overclocking Features
ASUS C.P.R(CPU Parameter Recall)
Adjustable CPU Voltage at 0.0125V increment
SFS(Stepless frequency Selection) from 200 MHz to 450MHz at 1MHz increment
4-step DRAM Voltage control
Back Panel I/O Ports
1 x Paralell Port
1 x Serial Port
1 x S/PDIF_OUT Port(coaxial)
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x 6 channel Audio I/O
1X RJ45
4 x USB2.0/1.1
Internal I/O Connectors
CPU / Chassis/Power Fan connectors
Chasis Intrusion
1 x SPDIF_out connnector
1 x Front Panel High Definination Audio connector
1 x game/MIDI connector
2 x USB connector supports additional 4 USB ports
1 x CD audio- in connector
1 x 24-pin EPS 12V Power connector
1 x 4-pin ATX 12V Power connector
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, SM BIOS 2.3, ACPIV2.0a,
ASUS EZ Flash, ASUS CrashFree BIOS 2 ,ASUS My Logo
Manageability
WOL/WOR by PME, WOR by Ring WO_USB, WO_KB/MS WOW
Support CD
Drivers
ASUS PC Probe II
ASUS AL Booster
ASUS LiveUpdated Utility
Adobe Acrobat Reader ver 7.0
Microsoft Direct X ver 9.0C
Accessories
1 x UltraDMA 100/66/33 cable
1 x USB2.0 CABLE
1 x User Mannual
2 x SATA Cable Kit (SATA/Power)
1 x I/O Shiled
Green ASUS
YES
Form Factor
ATX 12x7.5(30.5x19cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


3 Years
