ASUS M2A-VM Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, VGA+DVI, mATX
Cart
Quantity:
Add ASUS M2A-VM Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, VGA+DVI, mATX to your wishlist
Click here to write a review on ASUS M2A-VM Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, VGA+DVI, mATX

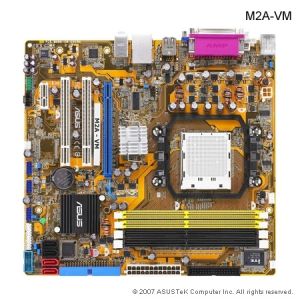

Large image is available
Product May Vary From Image

Our Price:
$105.95
RRP:$109.05
You Save:$3.10

Techbuy Part No:71105
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:M2A-VM
 M2AVM
Shipping Weight:2 KG How Much?
Date Added:27/3/2007
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

M2A-VM
Enjoy DVI Supported Playback of HD DVD and Blu-ray Discs
- The first integrated VGA MB supports Playback of HD DVD and Blu-ray Discs with HDCP compliant
- Support Dual-VGA output(DVI-D&RGB) and SurroundView
- Support AMD Socket AM2 CPU
- AMD 690G Chipset
- Integrated ATI Radeon X1250-based graphics
- PCI Express architecture
- Gb LAN
- DDR2 800
- 4*SATA 300MB/s RAID 0,RAID 1, RAID10

Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology.
Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability.
64-bit CPU support
64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
AMD 690G
The AMD 690G Northbridge is the latest AMD chipset designed to support 800/1000MHz HT(HyperTransport) interface speeds, Microsoft DirectX 9.0, Pixel Shader V2.0 and dual VGA outputs including DVI interface. It features the integrated ATI Radeon X1250-based graphics.

DVI Interface
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D and RGB and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc.
SurroundView
The Surroundview function provides four independent monitor display with an additioinal ATI VGA card for multi-tasking.

Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth.

Serial ATA 3Gb/s
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves.

Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
High Definition Audio
Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions technology that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meaning there will be no more confusion of Line-in, Line-out and Mic jacks.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

Max. 10 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.

ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
ASUS EZ Flash2
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

ASUS O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
ASUS Music Alarm
Wake up to the music of your choice instead of the irritating sound of an alarm clock. The ASUS Music Alarm gives you a personal wake-up call with your favorite CD music when system is off.

C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
MyLogo2
Turn your favorite photos into 256-color boot logos to personalize your system.

GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.




Specification
CPU

Support AMD Socket AM2 Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron
AMD Cool 'n' Quiet Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live! Ready
Chipset
AMD 690G
ATI SB600
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and Non-ECC,un-buffered memory
VGA
Integrated ATI Radeon X1250-based graphics
Maximum shared memory of 256 MB
Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)
(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)
Supports RGB with max. resolution 2048 x 1536 (@85Hz)
Dual VGA output support:
RGB & DVI
Note: DVI-D can not be converted to output RGB Signal to CRT.
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI

Storage
1 x UltraDMA 133/100
4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10
LAN
PCIe Gb LAN
Audio
ALC883 High Definition Audio 6-channel CODEC
Supports Jack-Sensing, Enumeration, and Jack-Retasking
Supports S/PDIF out interface
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment
Adjustable CPU Voltage at 0.0125V increment
ASUS C.P.R.(CPU Parameter Recall)
USB
10 USB2.0/1.1 ports
Special Features
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
ASUS O.C Profile
ASUS Music Alarm
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x DVI
1 x VGA
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
High Definition Front panel audio connector
COM port connector
CD audio-in connector
1 x S/PDIF output connector
CPU / Chassis/ Power Fan connectors
Chassis Intrusion connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
Support CD
Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Anti -virus software(OEM version)
Accessories
User' s manual
1 x Serial ATA cable
1 x SATA power cable
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O Shield
Form Factor
uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
