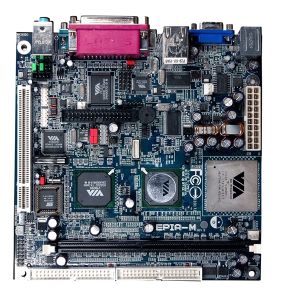

VIA EPIA-M10000 Mini-ITX Mainboard
  • 1.0GHz CPU, CLE266/VT8235, 1xDDR-266, 1xPCI, 2xIDE, USB2.0, LAN, 6Chl, VGA, Mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
71168
(?) Brand:
VIA
Manuf No:
M10000
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
M10000, SMB015, SMB-015
Model: EPIA M 10000 1.0GHz CPU with Active Fan

The VIA EPIA M-Series Mini-ITX Mainboard is a revolutionary, ultra-compact x86 platform optimized for today's killer digital applications. At just 17cm x 17cm, Mini-ITX is the world's smallest native x86 mainboard platform, and is fully compatible with MicrosoftR and Linux Operating Systems. Available with an embedded VIA Eden ESP processor core for fanless systems with ultra low-power requirements, or an embedded VIA C3 E-Series processor for more demanding digital multimedia applications, the EPIA M-Series is the perfect platform for a whole range of small form factor, low-power digital media devices and home entertainment centers.

The EPIA M-Series' VIA Apollo CLE266 chipset features an embedded MPEG-2 Accelerator for silky smooth digital video playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA M-Series ensures the high performance levels required of today's most popular digital media applications. The user's digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6 Channel AC'97 codec.


EPIA M Specifications
Chipset
  • VIA CLE266 North Bridge
  • VT8235 South Bridge
    • System Memory
  • 1 DDR266 DIMM socket
  • Up to 1GB memory size
    • VGA
  • Integrated VIA Unichrome AGP graphics with MPEG-2 Accelerator
    • Expansion Slots
  • 1 PCI
    • Onboard IDE
  • 2 X UltraDMA 133/100/66 Connector
    • Onboard Floppy
  • 1 x FDD Connector
    • Onboard LAN
  • VIA VT6103 10/100 Base-T Ethernet PHY
    • Onboard Audio
  • VIA VT1616 6 channel AC'97 Codec
    • Onboard TV Out
  • VIA VT1622 TV out
    • Onboard 1394
  • VIA VT6307S IEEE 1394 Firewire
    • Back Panel I/O
  • 1 PS2 mouse port
  • 1 PS2 keyboard port
  • 1 Parallel port
  • 1 RJ-45 LAN port
  • 1 Serial port
  • 2 USB 2.0 ports
  • 1 VGA port
  • 1 RCA port (SPDIF or TV out)
  • 1 S-Video port
  • 3 Audio jacks: line-out, line-in and mic-in; can be switched to 6 channel output
    • Onboard I/O Connectors
  • 1 USB connector for 2 additional USB 2.0 ports
  • 2 1394 connectors for 2 1394 ports
  • 1 Front-panel audio connector (Mic and Line Out)
  • 1 CD Audio-in connector
  • 1 Buzzer
  • 1 FIR connector
  • 1 CIR connector (Switchable for KB/MS)
  • 1 Wake-on-LAN connector
  • CPU/Sys FAN/Fan 3
  • 1 SMBUS connector
  • 1 Connector for LVDS module1 Serial port connector for a second com port
  • ATX Power Connector
    • BIOS
  • Award BIOS
  • 2/4Mbit flash memory
    • System Monitoring & Management
  • CPU voltage monitoring
  • Wake-on-LAN, Keyboard Power-on, Timer Power-on
  • System power management
  • AC power failure recovery
    • Operating Temperature
  • 0~50C
    • Operating Humidity
  • 0% ~ 93% (relative humidity; non-condensing)
    • Form Factor
  • Mini-ITX (4 layer)
  • 17 cm x 17 cm
    • * These specifications are subject to change without prior notice.
