 Transform your living room into a lavish theatre space with the HC1100 from Mitsubishi Electric. Featuring state of the art technology, this high definition projector generates stunning images with rich black tones and crystal clear picture quality. It has all the quality features you'd expect from a Mitsubishi home theatre projector, such as a high contrast of 3000:1 for exquisite dark and black images, a newly developed colour wheel for accurate reproduction of natural colour tones and a low fan noise level of just 25dBA for distraction free movie viewing.
With all these features and more, the HC1100 will take your home theatre experience to new heights.
KEY FEATURES
|

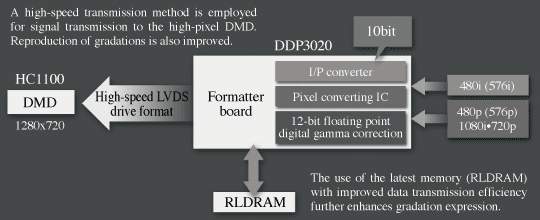

Newly Developed Panel Driver (DDP3020)
|
The HC1100's formatter board is equipped with a combined full 10-bit processing I/P converter and scaler, and a 12-bit floating point digital gamma controller. The result is approximately four times the number of gradations of a conventional 8-bit model, so even skin tones are faithfully reproduced.
|
|
|
|
High-speed LVDS (low voltage differential signal) drive
A high-speed memory (RLDRAM) with improved data transmission efficiency, and a high-speed LVDS drive provide subtle gradations of expression rivalling high-end models.
|
|
|
|
|
|
|
8-bit (256 steps)
|
|
10-bit (1024 steps): Approx. four times the number of gradations
|
|
|
|
|
|
|
|
|
State-of-the-Art DMD panel (DC2) providing a high contrast ratio of 3000:1
The HC1100 is equipped with the latest 720p DMD panel (DC2) featuring an expanded mirror operation angle of 12 degrees. This advanced panel's exceptional light usage efficiency provides a contrast of 3,000:1.
|
|
|
|
|
|
|
|
2000:1 contrast
|
3000:1 contrast
|
All-glass lens
|
|
|
|
|
10-bit I/P conversion circuit for fewer "jaggies"
A full 10-bit I/P conversion circuit significantly reduces noise, for smooth, beautiful images with fewer "jaggies" (stair-like lines).
|
|
|
|
|
|
|
Previous 8-bit
|
New 10-bit
|
|
|
|
|
BrilliantColor
A new colour processing algorithm and system-level colour signal image enhancement processing provides bright, vibrant reproduction of the neutral colours commonly found in videos and natural scenery.
|
|
|
|
D65 light standard (colour temperature: 6500K) reproduction
For more realistic colour reproduction of the visual source, the HC1100 is equipped with a colour wheel that reproduces the colour temperature considered to comprise standard light - D65 (6500 K).
|
|
|
|

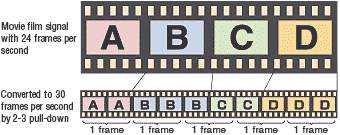

2-3 pull-down for high precision conversion of film sources
The HC1100 features 2-3 pull-down to significantly reduce "jaggies"in interlaced (480i or 576i) movie sources. In addition, the combination of several functions enables each mode -- either high brightness or high picture quality -- to be easily selected according to the image.
|
|
|
User Gamma Correction
|
|
In addition to the 3 modes of sports, video, and cinema, for times when the normal brightness function cannot address user preferences such as a desire to increase black level reproduction, brighten neutral colours, or suppress highlights when watching a movie, the gamma correction function makes it possible to independently fine-adjust only the black level, neutral colour, or white gradations.
|
|
|
|
Quiet operation of just 25dB and a long lamp life
Operating noise has been reduced to just 25dB by employing a low-noise fan and redesigning the shape of the colour wheel holder and lamp fins. Moreover, the optimal temperature control design used for the 200W light source lamp extends the lamp's useful life to a maximum of 3000 hours*.
|
|
|
|
|
Centre lens design and front exhaust for installation flexibility
In order to make it easier to align the projection angle with the centre of the screen, the lens is positioned in the centre of the unit. Hot air is expelled through a front exhaust for further installation flexibility.
|
|
|
HDCP*1 compatible HDMI*2 input terminals
The HC1100 is equipped with HDMI input terminals, the next-generation interface standard. Connecting the projector to a DVD player or other device with HDMI output makes it possible to take advantage of the characteristics of DLP full digital processing. Digital processing of all signals with no analogue conversion ensures that the image is projected with no deterioration. Colour gain control at the time of input is also possible. (when there is a colour difference)
|
|
|
|
Terminals on back of unit
|
|
|
*1 HDCP (High-bandwidth Digital Content Protection) is a copyright protection function for digital interfaces.
*2 HDMI (High-Definition Multimedia Interface) is a next-generation digital interface standard that features additional functions for home electronics, such as the copyright protection function HDCP (High-bandwidth Digital Content Protection), while maintaining compatibility with DVI (Digital Visual Interface) display interface technology.
* HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
|
|
|
|
Adjustable overscan
The overscan rate for images on DVDs and other media can be adjusted between 90% and 100% in one-percent increments (when a HDMI component is connected).
|
|
|
|
Trigger Terminal
The HC1100 is equipped with a screen trigger that synchronizes raising and lowering of an electrically-operated screen with the projector power switch, so projection can begin at the touch of a button.
|
|
|
|
Vertical and horizontal trapezoidal distortion correction
Digital trapezoidal distortion correction corrects screen distortion within 40 steps vertically and 25 steps horizontally (one step is equivalent to approximately one degree).
|
|
|
|
Backlit remote control with direct image quality adjustment
The image quality can be directly adjusted and the motor-driven iris opened or closed using the remote control. The remote control is also backlit for easy operation even in a dark room.
|
|
|
|
|
Projection system
|
DLP system
|
|
Panel specs
|
Panel size
|
0.62 DMD, aspect ratio 16:9
|
|
Number of pixels
|
1280 x 720 (DarkChip2)
|
|
Drive system
|
DMD reflection system
|
|
Array
|
Stripe pattern
|
|
Optical specs
|
Lens
|
Zoom/focus operation
|
Manual operation
|
|
f (mm)
|
23 ~ 27.6
|
|
Light source lamp
|
200W
|
|
Optical system
|
Time-division colour separation / composition system
|
|
Colour wheel spec
|
RGB RGB, 4-speed
|
|
Picture size (inches)
|
40 ~ 275
|
|
Images
|
Brightness (lm)
|
1000
|
|
Contrast ratio
|
3000:1 (full on/full off)
|
|
Resolution
|
PC input
|
VGA (640 x 480) -SXGA (1280 x 1024) (compressed)
|
|
Scanning frequency
|
Horizontal (kHz)
|
15 ~ 80
|
|
Vertical (Hz)
|
50 ~ 85
|
|
Input signal system
|
Video
|
NTSC, NTSC4.43, PAL (including PAL-M,N), SECAM, PAL-60, HDTV (480i/p, 576i/p, 1081i, 720p)
|
|
PC
|
PC/AT compatible machines, MAC, PC98
|
|
Input
|
Video
|
Analog RGB
|
Mini D-SUB15 pin
|
1 terminal
|
|
HDMI
|
HDMI terminal
|
1 terminal
|
|
Composite
|
RCA terminal
|
1 terminal
|
|
S
|
S terminal
|
1 terminal
|
|
Component
|
RCA terminal
|
1 RCA terminal (Component can be also input to D-SUB)
|
|
Serial / RS-232C standard
|
1 terminal (8 pins)
|
|
Functions
|
Function / other
|
Gamma mode
|
3 patterns + 2 users
|
|
Trapezoidal
|
Vertical keystone
|
40 steps (1 step = approx. 1 degree)
|
|
distortion correction
|
Horizontal keystone
|
25 steps (1 step = approx. 1 degree)
|
|
Power supply voltage
|
AC100-240V 50/60Hz
|
|
Power consumption (W)
|
280 (8W at standby)
|
|
Weight (kg)
|
2.9
|
|

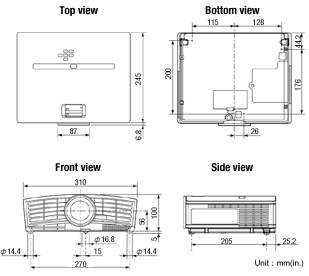

Main unit dimentions
|
Width (mm)
|
310
|
|
Depth (mm)
|
245
|
|
Height (mm)
|
100
|
|
Fan noise
|
25 dBA (Lamp Low Mode)
|
|
Note: For HC1100 zoom function, Zoom1/Zoom2 operates only on 480p and 576p, and does not function on 480i and 576i.
|
|
|
|
|
|
Included with the projector:
Power source cord (2.9m), remote control unit, AA-size batteries (x2), RGB signal cable, user's manual,
RS-232C cable, lens cap (attached to main unit)
Accessories (purchased separately):
7 Replacement lamp unit (VLT-HC910LP)
|
