Motherboards -> AMD Socket AM2 -> ASUS

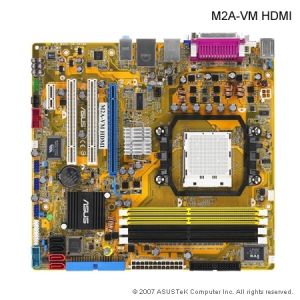

ASUS M2A-VM-HDMI Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, Firewire, DVI+VGA, HDMI, mATX
Cart
Quantity:
Add ASUS M2A-VM-HDMI Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, Firewire, DVI+VGA, HDMI, mATX to your wishlist
Click here to write a review on ASUS M2A-VM-HDMI Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 6Chl, Firewire, DVI+VGA, HDMI, mATX

Large image is available
Product May Vary From Image

Our Price:
$98.56
RRP:$149.05
You Save:$50.49

Techbuy Part No:72224
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:M2A-VM HDMI
 M2AVM HDMI
Shipping Weight:1.5 KG How Much?
Date Added:14/5/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

M2A-VM HDMI
Plays HD DVD and Blu-ray Discs with HDMI Support
- The first integrated VGA MB supports Playback of HD DVD and Blu-ray Discs with HDCP compliant
- Support Dual-VGA output and SurroundView
- Support AMD Socket AM2 CPU
- AMD 690G Chipset
- Integrated ATI Radeon X1250-based graphics
- DDR2 800
- 4*SATA 300MB/s RAID 0,RAID 1, RAID10
- 2*1394a ports
- Bundled HDMI/AV/S/SPDIF module


Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology.
Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability.
64-bit CPU support
64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
AMD 690G
The AMD 690G Northbridge is the latest AMD chipset designed to support 800/1000MHz HT(HyperTransport) interface speeds, Microsoft DirectX 9.0, Pixel Shader V2.0 and dual VGA outputs including DVI/HDMI interface. It features the integrated ATI Radeon X1250-based graphics.

HDMI Interface
HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.
DVI Interface
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D and RGB and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc.
YPbPr TV-out
The motherboard supports superior YPbPr TV-out functionality with a higher resolution to 1080i and 720p format, delivering high image quality.
SurroundView
Provide four independent monitors display with additional ATI VGA card for multi-tasking.
Dual-Channel DDR2 800
DDR2 800 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x8 bus performs much better in applications such as 3D gaming.

Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard SB600 southbridge allows RAID 0, RAID 1,RAID 10 configurations for four SATA connectors.

IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
High Definition Audio
Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions technology that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meaning there will be no more confusion of Line-in, Line-out and Mic jacks.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

Max. 10 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.

ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
ASUS EZ Flash2
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

ASUS O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
ASUS Music Alarm
Wake up to the music of your choice instead of the irritating sound of an alarm clock. The ASUS Music Alarm gives you a personal wake-up call with your favorite CD music when system is off.

C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
Q-Connector
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

MyLogo2
Turn your favorite photos into 256-color boot logos to personalize your system.

GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.




Specification
CPU
Support AMD Socket AM2 Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron
AMD Cool 'n' Quiet Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live! Ready
Chipset
AMD 690G
ATI SB600
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and Non-ECC,un-buffered memory
VGA

Integrated ATI Radeon X1250-based graphics
Maximum shared memory of 256 MB
Supports HDMI Technology with HDCP compliant with max. resolution 1920 x 1080p
(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)
Supports YPbPr component TV-out with max. resolutions 1280 x 720p and 1920 x 1080i
Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)
Supports RGB with max. resolution 2048 x 1536 (@85Hz)

Dual VGA output support:
RGB & DVI/HDMI
DVI & HDMI
TV-out(YPbPr/AV/S) & DVI/HDMI
(Simultaneous output for YPbPr, AV, S, and RGB is not supported)
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage
1 x UltraDMA 133/100
4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10
LAN
PCIe Gb LAN
Audio
ALC883 High Definition Audio 6-channel CODEC
Supports Jack-Sensing, Enumeration, and Jack-Retasking
Supports S/PDIF out on bundle card port
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment
Adjustable CPU Voltage at 0.0125V increment
ASUS C.P.R.(CPU Parameter Recall)
IEEE 1394
Supports 2 x 1394a ports
USB
10 USB2.0/1.1 ports
Special Features
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
ASUS O.C Profile
ASUS Music Alarm
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x IEEE 1394a
1 x DVI
1 x VGA
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
High Definition Front panel audio connector
COM port connector
CD audio-in connector
1 x S/PDIF output connector
CPU / Chassis/ Power Fan connectors
Chassis Intrusion connector
IEEE 1394 connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
Support CD
Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Anti -virus software(OEM version)
Accessories
User' s manual
2 x Serial ATA cables
2 x SATA power cables
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O Shield
ASUS 2in1 Q-ConnectorSystem panel connector,USB connector
HDMI/AV/S/SPDIF module
YPbPr cable
Form Factor
uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


3-year Manufact.
