| WL-100gE |
| Boost coverage area of 802.11g standard by 300% |
| WL-100gE provides the highest receiver sensitivity, increasing signal coverage range by 300%. |
|
|
|

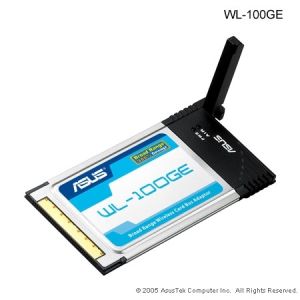

 WL-100gE Cardbus
- BroadRange - Boost coverage area of 802.11g standard by 300%
- 125* High Speed Mode - Enhance transfer speed of 802.11g standard by 35%
- Radio Power Control - Adjust output power for larger signal coverage
- EZSetup - Setup Wireless LAN in 2 easy steps
- WMM (Wi-Fi Multimedia) - Enhance wireless transfers of audio/video content
- Data Security - WPA2, WPA, WEP, ACL and SPI firewall
- PSP online game support
BroadRange - Boosts coverage area by 300%
|
| The WL-100gE adopts Broadcom's new BroadRange technology, which uses advanced digital signal processing techniques to provide the highest receiver sensitivity, increasing signal coverage range by 300%. |
 |
125* High Speed Mode - Enhance transfer speed of 802.11g standard by 35%With "Afterburner" technology, the WL-100gE boosts wireless transfer speeds by 35% compared with standard 802.11g speeds.
Radio Power Control - Adjust output power for larger signal coverage By scrolling the bar in ASUS Wireless homepage, users can adjust the output power for better sensitivity.
Partner with BroadRange routers for maximum range The WL-100gE, with BroadRange technology, can achieve maximum range extension through connection with BroadRange-capable wireless routers (WL-550gE).
WMM (Wi-Fi Multimedia) WWM provides multimedia enhancements for Wi-Fi networks to improve sharing of audio, video, and voice contents.
Automatic environment detection The system will automatically detect WLAN environments to select 802.11g for faster transfer or 802.11b for backward compatibility.
Rich add-on features and utilities
- Mobile control center: Integrate all tools and indicate real-time status on system tray.
- Wireless setting: Diagnose and configure wireless network settings with online trouble-shooting.
- Mobile manager: Support automatic roaming and network reconfiguration between different locations.
- Site survey: Easily explore wireless network topology. 1-touch setup wizard: High-speed wireless network is just a few clicks away.
|
|
|
|
Host interface
|
2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Encryption: WPA, WPA2, AES, 64/128-bit WEP
|
|
Network Standard
|
2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Encryption: WPA, WPA2, AES, 64/128-bit WEP
|
|
Data Rate
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
|
|
Network Architecture Types
|
2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Encryption: WPA, WPA2, AES, 64/128-bit WEP
|
|
RF Output Power
|
14 ~ 17 dBm (at nominal temp. range)
|
|
Range
|
Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 1000 ft (310 m) at 802.11b (11Mbps)
Indoor 80 ft (25 m), outdoor (LOS, Light-Of-Sight) 200 ft (60 m) at 802.11g (54Mbps)
The range may vary in different environments
|
|
Features
|
Operating Frequency:
2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Encryption: WPA, WPA2, AES, 64/128-bit WEP
|
|
Utilities
|
Mobile control center: Integrate all tools and indicate real time status information on system tray
Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature
Mobile manager: Support automatic roaming and network reconfiguration between different locations
Site survey: Explore your wireless networking topology through a handy way
|
|
Support OS
|
Windows 98, ME, 2000 and XP
|
|
Emission
|
ETS 300 328 and ETS 300 826; CE Mark; FCC Part 15C
|
|
|
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
|
