Introduction
In order to satisfy more customers' demand for high-end PSU, CoolerMaster is announcing the new series of PSU-Real Power Pro to continue Real Power series' well reputation. It complies with the newest Intel standard ATX 12V V2.2 and SSI standard EPS 12V V2.92simultaneously.
In addition to the stable and clean power, the advanced features of this Power Supply include Quad GPU compatibility , Quad CPU support, and an 85% efficiency rating. With the world's first technology of six + 12V rails, Real Power Pro proves to be a spectacular performer, espically for workstation and high-end graphic card system, which includes 4 connectors for the most powerfuel PCI Express VGA Card.
Features

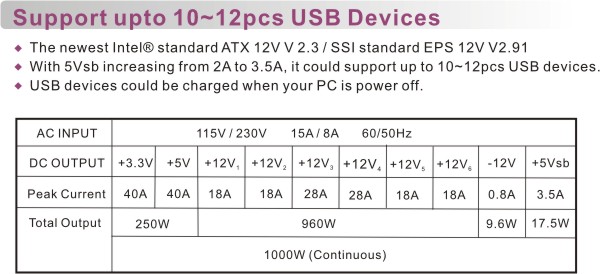

1.World's first six +12V rails for better power distribution in Quad-SLI
and 2 ways server system
2.Four 6 pin PCI-e connectors offer great future upgradeability
3.Two 8 pin PCI-e connectors are compatible with future graphic card
upgradeability
4.Compliance with the newest Intel standard ATX 12V V 2.3
5.Compliance with the newest SSI standard EPS 12V V2.92

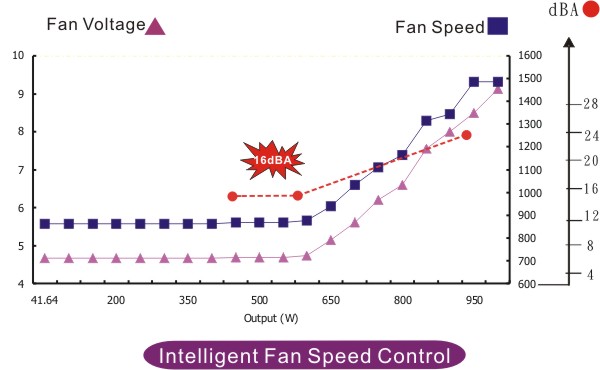

6.Ultra-silent operation with intelligent 135mm fan speed control (< 16dBA)
7.Eco-design for energy and money saving by Active PFC.(>0.99)/
high efficiency(>85%)
8.High Power Density (150*180*86 mm)
9.Power Failure Detector will light up when Over-Voltage, Under-Voltage,
Over-Temperature, Over-Current, Over-Loading, and Short circuit occur.
10.Five-year warranty
Specifications
| Model |
RS-A00-EMBA |
| Type |
ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92 |
| Dimension (W / H / D) |
Standard ATX 150 x 86 x 180mm |
| Input Voltage |
90~264V (Auto Range) |
| Input Current |
15A@ 115 Vac / 8A@ 230 Vac |
| Input Frequency Range |
47~63 Hz |
| PFC |
Active PFC(0.99) |
| Power Good Signal |
100~500 ms |
| Hold Up Time |
>17 ms |
| Efficiency |
83%(200W) / 85%(500W) / 81%(1000W) |
| MTBF |
>100,000 hrs |
| Protection |
OVP / OCP / OTP / OLP / Short / Full Protection |
| Output Capacity |
1000 Watts Continuous |
| Max. Output Capacity |
1,200 Watts |
| Operation Temperature |
0~50Nominal Input Voltage |
| Safety |
CE / cUL / TUV / NEMKO / BSMI / FCC / CCC / C-tick / GOST |
| Fan |
Ultra-silent 135mm fan with intelligent speed control |
| Certification |
nVIDIA SLI / 80 Plus |
| Connector |
M/B 24 Pin Connector x 1
CPU 4 Pin x 1
CPU 8 Pin x 1
PCI-E 8 Pin x2
PCI-E 6 Pin x 4
4 Pin Peripheral x 6
SATA x 8
4 Pin Floppy x 2
|
