Motherboards -> Intel Socket 775 -> ASUS

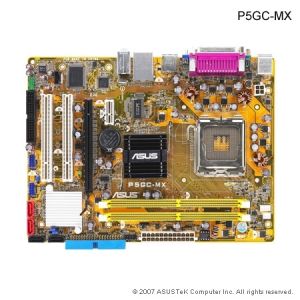

ASUS P5GC-MX Motherboard
LGA775, 945GC, 800FSB, 2x DDR2-533, PCI-Ex16, SATA-II, LAN, 6Chl, VGA, mATX


Large image is available
Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:72879
Usually Ships: No Longer Available Details
Brand:ASUS Web Site
Manuf No:P5GC-MX/1333
 P5GCMX/1333
Shipping Weight:2 KG How Much?
Date Added:18/6/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

P5GC-MX
Best Performance of All-in-one Solution MB
- Intel LGA775 Pentium CPU
- Intel Core2 Duo Ready
- Dual-Core CPU Support
- Intel 945GC/ICH7
- Dual channel DDR2
- 6-channel High Definition Audio
- EZ Flash


Best Performance of All-in-one Solution MB

P5GC-MX with Intel 945GC chipset inside supports Intel dual-core CPU and features 800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5GC-MX is the most affordable all in one solution platform for Intel Core2 Processor with Intel 945GC chipset inside.
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability.
Intel 945GC Chipset
The Intel 945GC graphics memory controller hub(GMCH) and the ICH7 I/O controller hub provide the vital interfaces for the motherboard. The GMCH features the Intel Graphics Media Accelerator 950, an integrated graphics engine for enhanced 3D, 2D, and video capabilities. The GMCH contains one 16-lane PCI Express port intended for an external PCI Express graphics card and provides the interface for processor in the 775-land package with 800/533MHz FSB, dual channel DDR2 at speeds of up to 533MHz.

Intel Graphics Media Accelerator 950
The Intel Graphics engine has new capabilities that provide a significant increase in graphics performance. DirectX 9 hardware acceleration, 400MHz core clock, and up to 224MB of video memory all together provide a full-value, high performance graphic solution to you. Through a dual-independent display technology, different content can be displayed on each monitor or stretched across both displays for more workspace.
Dual-Channel DDR2 533
Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

SATA 3Gb/s
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.

Max. 8 USB 2.0 ports supports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
EZ Flash
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.

CrashFree BIOS 2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

MyLogo
ASUS MyLogo personalizes and adds style to your system with customizable boot logos
Q-Fan
Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan. This motherboard with Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation
Compliance with the RoHS Directive
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.




Specification
CPU
LGA775 socket for Intel Core2 Duo / Pentium D / Pentium 4 / Celeron D Processors
Compatible with Intel 05B/05A/06 processors
Intel Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel 945GC / ICH7
Front Side Bus
800 / 533 MHz
Memory
2 x DIMM, max. 2GB, DDR2 533/400 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCI-E x16 @16
1 x PCI-E x1
2 x PCI 2.2
VGA
Intel Graphics Media Accelerator 950
Max. resolution:2048x1536@75Hz
Max. Vertical Refresh Rate:85Hz@ up to 1920x1440
Storage
Southbridge:
- 1 x UltraDMA 100/66/33
- 4 x Serial ATA 3Gb/s
LAN
PCIe 10/100M LAN controller
Audio
Realtek ALC883, 6-CH High-Definition Audio CODEC
USB
8 x USB2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS CrashFree BIOS 2
ASUS Q-Fan
ASUS EZ Flash
ASUS MyLogo
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x Serial port
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
6 Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU/ Chassis Fan connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME
O/S Compatibility
Windows Vista/XP/2000
Accessories
1 x UltraDMA 100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA Power cable
I/O Shield
User's manual
Support CD
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software
Form Factor
uATX Form Factor, 9.6"x 7.2" (24.5cm x 18.3cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.



Product Warranty


3 Years
