| WL-320gE |
| 850m Coverage Range Enable Strong WLAN Signal at All Corners |
| WL-320g Access Point Series Offers Client, Bridge, Repeater and Gateway Functions |
|
|
|
|
The WL-320gE wireless access point provides up to 850m of open space coverage range. The AP also enables client, bridge, repeater and gateway functions to offer versatile wireless solutions for different WLAN environments.
 Reception sensitivity and coverage range
With built-in high-power amplifier with 20dBm average transmit power and 5dBi high-gain antenna, the WL-320gE delivers excellent signal quality and coverage range up to 850 meters in open space. This is especially effective when in access point modes, which signal quality and coverage range play critical roles.
Enterprise Network Solution
The WL-320gE supports most enterprise network requirement, including SNMP, Multiple SSID and VLAN. SNMP standard (v3) support allows system administrators to manage multiple access points from remote locations. Furthermore multiple SSID and VLAN support offer a cost-effective solution to separate the physical environment into a virtual networking area with different security level for a wide range of application requirements.

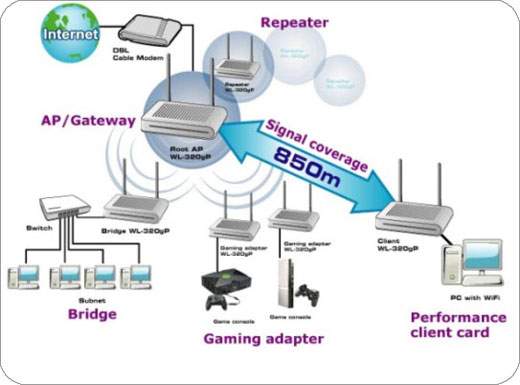

5-in-1 Wireless Solution
The ASUS WL-320gE AP works as a repeater, a bridge, a client and a gateway.
- Repeater mode: Repeat signal from root access point for those who are looking to extend signal range in spacious environments.
- Bridge mode: Connect up to four WLANs to enable network installation for multiple application mapping.
- Client mode: Unwire devices, including notebooks, PC and game consoles through RJ-45 cable connection.
- Gateway modes: Support DHCP, NAT, PPPoE, PPTP and firewall to deliver an excellent and flexible gateway solution.

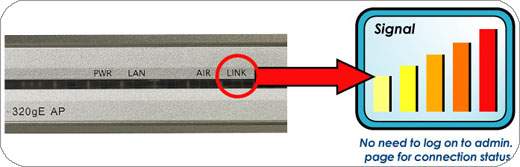

LED indicator
LED "LINK" indicates AP signal strength and client connection with blinks, steady glow or blank.

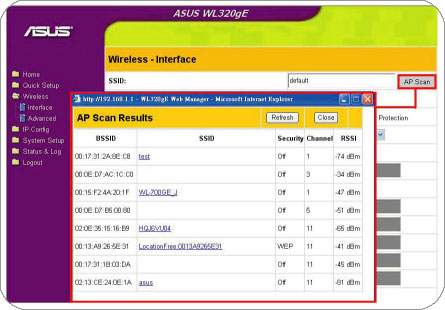

Site Survey
In Station and Repeater modes, "AP Scan" collects comprehensive AP information and selects the most appropriate AP for best connection
|
|
|
|
Interface
|
1 * RJ45 for 10/100 BaseT with auto cross-over function (MDI/MDI-X)
|
|
Antenna
|
External one dipole 5dBi antenna with Reverse-SMA antenna connector; Supports antenna diversity
|
|
Output Power
|
20dBm(FCC regulation) or 15dBm(CE regulation) in b/g mode with 1.5dB tolerance
|
|
Power
|
AC Input: 100V~240V(50~60HZ); DC Output: 5V with max. 2 A current
|
|
LED Indicator
|
PWR, LAN, AIR (Wi-Fi transmission), LINK (Wi-Fi Association)
Wireless Association:
- On: client associated (AP/Gateway/Bridge/Repeater mode), or associated to AP with strong signal (Client mode, RSSI >= -65 dBm)
- Flashing: (Client mode)
- < -89 dbmOn:200ms, Off:1000ms
- >= -89 dbm < -83 dbmOn:200ms, Off:800ms
- >= -83 dbm < -77 dbm On:200ms, Off:600ms
- >= -77 dbm < -71 dbm On:200ms, Off:400ms
- >= -71 dbm < -65 dbm On:200ms, Off:200ms
- Off: client not associated (AP/Gateway/Bridge/Repeater mode), or not associate to AP (Client mode)
|
|
Size
|
165 mm (L)* 110 mm (W)* 30 mm (H) excluding external antenna
|
|
Operating Frequency
|
2.4 - 2.5 GHz
|
|
Modulation
|
OFDM, CCK, DQPSK, DBPSK
|
|
Data Rate
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
|
|
Operation Channel
|
11 for N. America, 14 Japan, 13 Europe (ETSI)
3 (non-overlapping)
|
|
Range
|
Indoor 130ft (40m), outdoor (LOS, Light-Of-Sight) 2000ft (600m) at 11Mbps
Indoor 80ft (25m), outdoor (LOS, Light-Of-Sight) 500ft (150m) at 54Mbps
The range may vary by different environment
|
|
Management
|
- Operation mode: AP, Client, Bridge, Repeater, Gateway
- Multiple SSID and VLAN
- Guest SSID
- Site Survey (MAC, SSID, Security, Channel and RSSI)
- SNMP version 3.0
- DHCP server, DHCP client
- DNS Proxy, Automatic IP, PPPoE, PPTP login client support, Static IP, Big Pond login client support
- Static Route, NTP support, UPnP, DDNS
- Save/restore configuration files
- Upgrades via web browser
- Firmware restoration
- WMM
|
|
Utilities
|
Device Discovery:
Discover all ASUS AP/Gateway in network and help user to invoke Web Configuration page.
Firmware Restoration:
Restore firmware while system enters rescue mode.
Uninstall Utilities:
Uninstall ASUS WL-320gE Wireless AP Utilities.
|
|
Receiver Sensitity
|
B MODE (-97dBm@1Mbps,-96dBm@2Mbps,-95dBm@5.5Mbps,-92dBm@11Mbps)
G MODE(-94dBm@6Mbps,-93dBm@9Mbps,-91dBm@12Mbps,-90dBm@18Mbps,-86dBm@24Mbps,-83dBm@36Mbps,-77dBm@48Mbps,-74dBm@54Mbps)
|
|
Security
|
Firewall:
- NAT and SPI (Stateful Packet Inspection), DoS attack prevention, intrusion detection including logging
Built a firewall for Internet traffic protection and another one for wireless LAN
- Virtual DMZ
Filtering:
- Port, IP address, protocol and URL Keyword
Logging:
- Dropped packet, Accepted packet, Both Type, security event, Syslog
Encryption:
- 64/128-bit WEP
- WPA-PSK TKIP/AES, WPA2-PSK TKIP/AES, WPA TKIP/AES, WPA2 TKIP/AES
Authentication:
- MAC address, 802.1x RADIUS (TLS, TTLS, PEAP)
|
|
|
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
|
