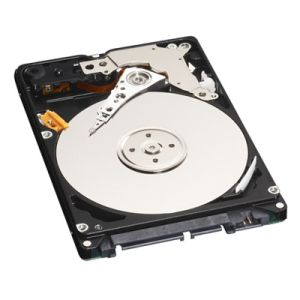

2.5-inch SATA Hard Drives
250 GB, 1.5 Gb/s, 8 MB Cache, 5400 RPM
High-performance
Low power consumption
Ultra-cool and quiet
WD Scorpio 2.5-inch drives offer high-performance, low power consumption and cool operation, making them ideal for notebooks and other portable devices.
|
|
|
WD Scorpio delivers best-in-class performance with low power consumption and cool operation. In addition, you'll get one of the quietest 2.5-inch drives on the market with real-time data protection technology to help keep your data safe.
Key Features
Massive capacity - Whether they are in an external drive or a notebook computer, WDs 250 GB 2.5-inch drives offer the most available capacity for space-hungry operating systems like Windows Vista, plus plenty of room left over for photos, music, and video.
Fast and efficient - With 5400 RPM spin speed and 12 ms access time, even the most demanding customer will appreciate the performance achieved by WD Scorpio drives.
Quiet - In a notebook drive, silence is golden. WDs exclusive WhisperDrive combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non- operational shock tolerance.
Tested for Compatibility - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.
|
Ideal For
Portable digital devices of all kinds, including notebook computers, external storage, digital media players, GPS and navigation systems, and other automotive and industrial applications.
|
 |
| Performance Specifications |
|
Rotational Speed |
5,400 RPM (nominal) |
|
Buffer Size |
8 MB |
|
Average Latency |
4.20 ms (nominal) |
|
| Seek Times |
|
Read Seek Time |
12.0 ms |
|
Track-To-Track Seek Time |
2.0 ms (average) |
|
| Transfer Rates |
|
Buffer To Host (Serial ATA) |
1.5 Gb/s (Max) |
|
Buffer To Disk |
600 Mbits/s (Max) |
|
|
| Physical Specifications |
|
Formatted Capacity |
250,059 MB |
|
Capacity |
250 GB |
|
Interface |
SATA 1.5 Gb/s |
|
|
| Physical Dimensions |
| English |
|
Height |
0.374 0.008 inch |
|
Length |
3.94 0.010 inch |
|
Width |
2.75 0.010 inch |
|
Weight |
0.26 Pounds |
|
| Metric |
|
Height |
9.5 0.20 mm |
|
Length |
100.2 0.25 mm |
|
Width |
69.85 0.25 mm |
|
Weight |
0.117 kg |
|
|
| Environmental Specifications |
| Acoustics |
|
Idle Mode |
24 dBA (average) |
|
Seek Mode 0 |
26 dBA (average) |
|
| Temperature (English) |
|
Operating |
41 F to 140 F |
|
Non-operating |
-40 F to 149 F |
|
| Temperature (Metric) |
|
Operating |
5 C to 60 C |
|
Non-operating |
-40 C to 65 C |
|
| Humidity |
|
Operating |
8-90% RH non-condensing |
|
Non-operating |
5-95% RH non-condensing |
|
| Altitude (English) |
|
Operating |
-1,000 feet to 10,000 feet |
|
Non-operating |
-1,000 feet to 40,000 feet |
|
| Altitude (Metric) |
|
Operating |
-305M to 3,050M |
|
Non-operating |
-305M to 12,200M |
|
| Vibration |
|
Operating |
|
Linear |
10-500 Hz, 1.0G (0 to peak) |
|
Random |
10-500 Hz (0.309 g / Hz) |
|
|
| Electrical Specifications |
| Current Requirements |
|
5 VDC |
|
Read/Write |
500 mA |
|
Idle |
400 mA |
|
Standby |
50 mA |
|
Sleep |
20 mA |
|
|
Power Dissipation |
|
Read/Write |
2.50 Watts |
|
Idle |
2.00 Watts |
|
Standby |
0.25 Watts |
|
Sleep |
0.10 Watts |
|
|
|
