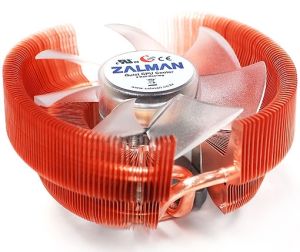

| CNPS8700 LED |
 |
| Compatible CPUs and Motherboards |
| |
| |
Socket |
CPU |
CPU Compatibility |
| Intel |
775 |
Celeron D |
Supports all speeds |
| Pentium 4 |
| Pentium D |
| Core 2 Duo |
| Core 2 Quad |
| AMD |
AM2 |
Sempron |
Supports all speeds |
| Athlon 64 |
| Athlon 64 X2 |
| Athlon 64 FX |
| 754 |
Sempron |
Supports all speeds |
| Athlon 64 |
| 939 |
Athlon 64 |
Supports all speeds |
| Athlon 64 X2 |
| Athlon 64 FX |
| Opteron |
| Dual-Core Opteron |
| 940 |
Athlon 64 FX |
Supports all speeds |
| Opteron |
| Dual-Core Opteron |
|
| |
 Notices for CPU installation |
 |

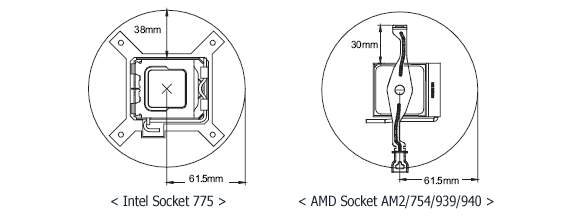

No motherboard components such as the PSU, disk drives, VGA card, and RAM with a height
greater than 39mm should be present within a 61.5mm radius from the center of the CPU. |
|
| |
| Specifications |
| |
FHS
| Dimensions |
120(L) X 123(W) X 67(H) mm |
| Weight |
475g |
| Base Material |
Pure Copper |
| Dissipation Area |
3,300cm2 |
Fan
| Bearing Type |
2 Ball-Bearing |
| Speed(1) |
1,150rpm 10% ~ 2,300rpm 10% |
| Noise Level(2) |
17.5dBA 10% ~ 33dBA 10% |
| |
| (1) |
The fan operates at 2,550rpm (35.5dBA) if directly connected to the motherboards power connector
without the use of Fan Mate 2. |
| |
| (2) |
Measured 1m distance away from source. |
FAN Speed Controller (FAN MATE 2)
| |
| |
- Dimensions |
: 70(L) x 26(W) x 26(H)mm |
| |
- Weight |
: 20g |
| |
- Output Voltage |
: 5V ~ 11V 2% |
| |
- Allowable Power |
: 6W or lower |
| |
- Connector |
: 3-Pin |
| |
|
|
|
| |
 |
| |
 |
| |
| 1. |
Compatible with all single, dual, and quad core CPUs for Intel socket 775 and AMD socket
AM2/754/939/940. |
| |
| 2. |
Compatible with Slim Tower / Low Profile Home Theatre PC Enclosures. |
| |
| 3. |
100% pure copper heatsink with aerodynamically optimized tunnel design for high performance cooling. |
| |
| 4. |
Patented curved heatpipe design for heat transfer performance of up to 4 heatpipes using just 2. |
| |
| 5. |
Ultra-thin 0.2mm fins for minimized weight and significantly reduced airflow resistance. |
| |
| 6. |

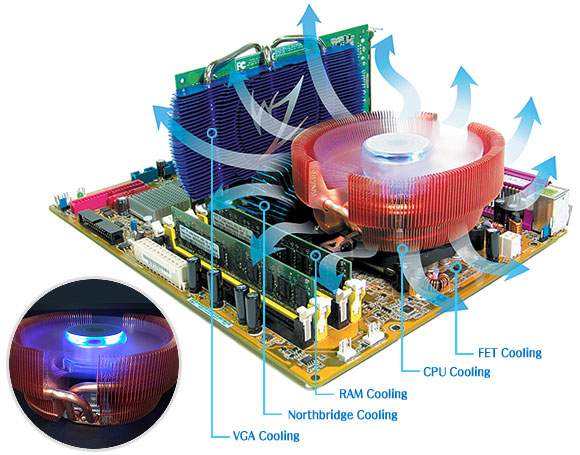

The 110mm fan inside the heatsink cools not only the CPU, but the VGA card, Northbridge, FET, and RAM as well. |
| |
| 7. |
Does not generate noise or vibration in Silent Mode. |
| |
| 8. |
The adjustable fan speed controller (Fan Mate 2) enables control of noise and fan performance. |
|
|
|
| |
 |
| |
|
|
Common Components
1) Cooler (CNPS8700 LED)
2) Thermal Grease
3) Fan Speed Controller (Fan Mate 2)
4) Double-Sided Tape (for Fan Mate 2 attachment)
5) Cable for Fan Mate 2
6) Users Manual
7) Clip
8) Clip Lever
Components for Intel Socket 775
9) Four (4) Clip Support Fixing Bolts
10) One (1) Clip Support for Socket 775
11) One (1) Backplate for Socket 775
Component for AMD Socket AM2/754/939/940
* No additional components
|
|
| |
 |
| |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
| |
1. Korean Patent Registration No. 10-0600448
2. Korean Design Registration No. 07-9753
3. Patent applications pending in over 20 nations around the world including the USA, EU, and Japan. |
| |
 |
| |
| 1. |
The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Sockets
AM2/754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the specified weight limit. Zalman is not responsible for any damage that occurs when moving a computer. |
| |
| 2. |
Check the components list and condition of the product before installation. If any problem is found, contact your place of purchase to obtain a replacement. |
| |
| 3. |
Excessive force exerted on the fan may damage the fan, resulting in damage to the system. |
| |
| 4. |
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. |
|
| |
