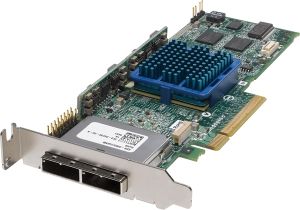

Adaptec RAID 3085 Controller - 8-Port External SAS, Low Profile - PCI-Ex8, Single OEM (No Cable)
RAID 0,1,1E,5,5EE,6,10,50,60

Choose an Adaptec Unified Serial controller to leverage cost-effective, high-capacity Serial ATA (SATA) disk drives or high-performance Serial Attached SCSI (SAS) drives, or both, in a single storage system. With Adaptec Unified Serial controllers, you can scale up to 60TB (using 500GB drives) and increase performance for SATA and SAS storage.

This card offers the industry's first redundant path failover to minimize downtime with externally attached drives. With an x8 lane, 800 MHz processing power and 256MB of memory, your large capacity solutions will maximize performance and scalability.

The Adaptec RAID 3085 is an 8-port controller that supports externally attached SATA and SAS drives and supports the next-generation PCIe connectivity. It features Adaptec RAID Code (ARC) with RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD, as well as Copyback Hot Spare and optional Snapshot Backup. With an MD2 low-profile form factor, this card will fit into any server, including high-density rack mount and blade servers.

The card has 256MB of DDR2 memory and a battery unit is optional.Adaptec Storage Manager provides one-view, centralized management for all Adaptec RAID controllers

Microsoft Windows
Red Hat Linux
SUSE Linux
Novell NetWare
SCO OpenServer
UnixWare
Sun Solaris
FreeBSD
VMware ESX Server

Management Utilities

Adaptec Storage Manager (ASM)
Java-based GUI Management Utility
Remote configuration, monitoring & notification
ASM OS Support: Windows, Linux, SCO, Solaris, NetWare
Microsoft VDS Support
SNMP, SMTP
Simultaneous remote firmware updates

ARCCONF
Command Line Interface

Adaptec BIOS Configuration Utility (ACU)
BIOS level configuration utility
Flashable BIOS support

Physical Size

2.5" H x 6.6" L (64mm x167 mm)

Operating Temperature (incl. battery)

0C to 40C (without airflow)
0C to 55C (with airflow

Operating Voltage

1 amp @ 3.3V

Regulatory Certification

FCC, C-tick, CE, VCCI

Accessories

Snapshot Backup Key (2228200)
Adaptec Battery Module ABM-800 (2248000-R)
