ThermalTake 1200W Toughpower - ATX 12V v2.2, EPS 12V 2.91, 140mm Fan, Modular Cables, SLI Ready, 80 PLUS Certified
5x SATA, 3x PCI-E 8-Pin, 3x PCI-E 6-Pin

No Longer Available

Part Number:

73457

(?) Brand:

ThermalTake Web Site

Manuf No:

W0133

Shipping Weight:

5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

W0133, SPTTW0133, SP-TTW0133



ATX 12V 2.2	EPS 12V	AMD / Intel Quad Core Support	PCI Express Connectors X6	S-ATA Connectors X8	Quad GPU Ready

	Stable 1200W continuous output (at 50 operating environment)
	Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior
	performance for PC system. (combined loading of 99A)
	NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.
	Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-CoreGPU
	technologies.
	Modularized Cable Management to eliminate clutter and improve airflow inside the case.
	Independent Voltage Circuit: offers unflappable current delivery under heavy load.
	Strict voltage regulation (3%): provides steady voltage for system.
	Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).
	Industrial grade components (capacitor, transformer, etc)
	High reliability: MTBF>120,000 hours.
	Quiet and reliable 14cm ball-bearing fan.
	Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power,
	and Short-Circuit protection.
	Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Total Output Connector:

20+4-pin Main
Connector X 1
4+4 pin power
connector X 1
8-pin power
connector X 1

4-pin Peripheral
Connector X 8
Floppy
Connector X 2

5-pin S-ATA
Connector X 8

8-pin PCI-E
Connector X 3

6-pin PCI-E
Connector X 3

	Technology Features:

High-Performance Quad +12V Rails, Triple Transformers and EPS Structure

Hi-Tech Black Coating

8 S-ATA Connectors

Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

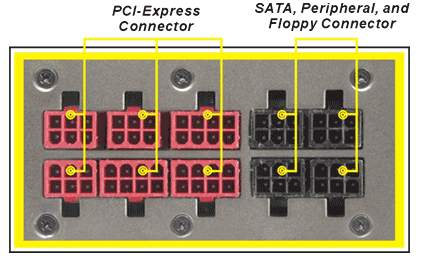

	Embedded Socket Design:

	Cable Application:


Intelligent Cable Management (W0132/W0133 only) : All cables are sleeved with black mesh cable sleeving Optimum air-flow currents within the chassis

Model	W0133
Power	1200W
Dimension	200mm(L)x160mm(W)x86mm(H)
Switches	ATX Logic on-off additional power rocker switch
PFC	Active PFC (PF > 0.9)
Cooling System	140mm Fan, 2300RPM 10%
Noise	16 dBA at 1300 RPM
P. G. Signal	100-500 ms
Efficiency	up to 87%
Hold-up Time	16ms

INPUT
Input Voltage	115 VAC ~ 230 VAC
Input Frequency Range	47 ~ 63 Hz
MTBF	120,000 hrs minimum (at 25 )
Input Current	15A

OUTPUT
Voltage	+12V1	+12V4	+3.3V	+12V2	+12V3	+5V	-12V	+5Vsb
Max/Min	20A/1A	36A/1A	30A/0.5A	20A/1A	36A/1A	30A/0.5A	0.8A/0A	3.5A/0A
Regulation *1	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+10,-10%	+3,-5%
Ripple & Noise *2	120mV	120mV	50mV	120mV	120mV	50mV	120mV	50mV
Max Output	600W			600W			9.6W	17.5W
Total Power	1200W
1. +5Vsb operate at 3.5A max load base on PS-ON mode. If PS-OFF +5Vsb only operate at 3A max load. 2. Add 0.1uF and 47uF capacitors across output terminal during ripple & noise test.

ENVIRONMENT
Operating Temp.	10 to 50
Storage Temp.	-20 to 70
Operating Humidity	20% to 90%, non-condensing
Storage Humidity	5% to 95%, non-condensing

PROTECTION
	DC rail	Trigger Point/Range
Over Voltage Protection	+3.3V trip point	4.5 Vmax
	+5.0V trip point	7.0 Vmax
	+12.0V trip point	15.6 Vmax
Over Current Protection	+3.3V	33A ~ 50A
	+5.0V	33A ~ 50A
	+12V1 & +12V2	22A ~ 35A
	+12V3 & +12V4	39A ~ 55A
Under Voltage Protection	+3.3V trip point	2.0 Vmin
	+5.0V trip point	3.3 Vmin
	+12.0V trip point	8.5 Vmin
Short Protection	All output to GND
