Cooling
->
CPU Coolers
->
Zalman
Zalman CNPS7500-Cu-LED (Copper) CPU Cooler with LED, 110mm 2-Ball Bearing Fan, for Intel Socket 478/775, AMD Socket A/754/939/940/AM2
Cart
Quantity:
Add
Zalman CNPS7500-Cu-LED (Copper) CPU Cooler with LED, 110mm 2-Ball Bearing Fan, for Intel Socket 478/775, AMD Socket A/754/939/940/AM2
to your wishlist
Click here to write a review on
Zalman CNPS7500-Cu-LED (Copper) CPU Cooler with LED, 110mm 2-Ball Bearing Fan, for Intel Socket 478/775, AMD Socket A/754/939/940/AM2
Large image is available
Product May Vary From Image
Our Price:
$56.20
RRP:
$65.00
You Save:
$8.80
Techbuy Part No:
73927
Usually Ships:
1-3 Days
Details
Brand:
Zalman
Web Site
Manuf No:
CNPS7500-CU-LED
CNPS7500CULED
Shipping Weight:
1.5 KG
How Much?
Date Added:
17/7/2007
Rating:
Not Rated
Currency:
AUD
Convert
Product Description
Compatible CPUs and Motherboards
Socket
CPU
CPU Compatibility
Intel
478
Celeron
Supports all speeds
Celeron D
Pentium 4
775
Celeron D
Supports all speeds
Pentium 4
Pentium D
Core 2 Duo
AMD
AM2
Sempron
Supports all speeds
Athlon 64
Athlon 64 X2
Athlon 64 FX
754
Sempron
Supports all speeds
Athlon 64
939
Athlon 64
Supports all speeds
Athlon 64 X2
Athlon 64 FX
Opteron
Dual-Core Opteron
940
Athlon 64 FX
Supports all speeds
Opteron
Dual-Core Opteron
Notices for Intel 478 socket based CPU installation

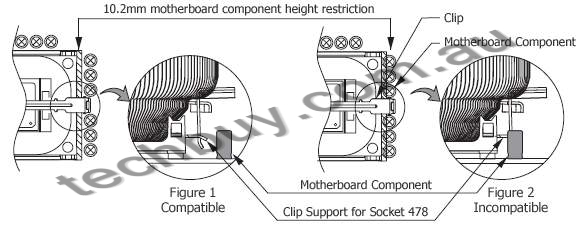

1) As shown in Figure 2, a motherboard that is not compliant with the "10.2mm motherboard component height restriction" standard, introduced by Intel, may create interference between components and the clip of CNPS7500 LED. Please do not install the CNPS7500 LED if this interference is observed.
2) No motherboard components with a height greater than 39mm, as well as the PSU, disk drives, VGA card, and RAM should be present within a 61mm radius from the center of the CPU.
Notices for Intel 775 socket based CPU installation
No motherboard components with a height greater than 39mm, as well as the PSU, disk drives, VGA card, and RAM should be present within a 61mm radius from the center of the CPU.
Notices for AMD AM2/754/939/940 socket based CPU installation
No motherboard components with a height greater than 39mm, as well as the PSU, disk drives, VGA card, and RAM should be present within a 61mm radius from the center of the CPU.
AMD sockets require Stock Retention Frame.
Specifications
FHS
Dimensions
121(L) X 121(W) X 67(H) mm
Weight
848g
Base Material
Pure Copper
Dissipation Area
3,500cm
2
Fan
Bearing Type
2 Ball-Bearing
Speed
(1)
1,150rpm 10% ~ 2,300rpm 10%
Noise Level
(2)
17dBA 10% ~ 32dBA 10%
(1)
The fan operates at 2,550rpm (34.5dBA) if directly connected to the motherboards power connector
without the use of Fan Mate 2.
(2)
Measured 1m distance away from source.
FAN Speed Controller (FAN MATE 2)
- Dimensions
: 70(L) x 26(W) x 26(H)mm
- Weight
: 20g
- Output Voltage
: 5V ~ 11V 2%
- Allowable Power
: 6W or lower
- Connector
: 3-Pin
Directions for Use
1.
Does not generate noise or vibration in Silent Mode.
2.
Pure copper base materials ensure excellent heat dissipation.
3.
Compatible with all single and dual core CPUs for Intel Socket 775/478 and AMD Sockets AM2/754/939/940.
4.
The high intensity blue LED installed silent 110mm fan inside the heatsink maximizes cooling performance.
5.
The adjustable fan speed controller (FAN MATE 2) enables control of noise and fan performance.
Common Components
1) Cooler (CNPS7500-Cu LED)
2) Thermal Grease
3) Fan Speed Controller (FAN MATE 2)
4) Double-sided Tape (for FAN MATE 2 attachment)
5) Cable for FAN MATE 2
6) Users Manual (in English and Korean)
Components for Intel Socket 775
7) One (1) Clip Support for Socket 775
8) One (1) Backplate for Socket 775
9) Four (4) Clip Support Fixing Bolts
10) One (1) Clip Lever
Components for Intel Socket 478
11) One pair of Clip Supports for Socket 478
* Component 10)
Component for AMD Socket AM2/754/939/940
* Component 10)
Product Warranty
12-month Manufacturer
