Product DetailsGo BackEmail to FriendPrint
Motherboards -> Intel Socket 775 -> ASUS

ASUS P5K-VM Motherboard
LGA775, G33, 1333FSB, 4x DDR2-800, PCI-Ex16, SATA-II, GigLAN, 8Chl, Firewire, VGA, mATX

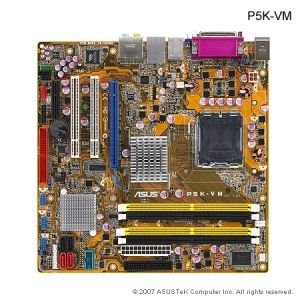

Large image is available
Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:73957
Usually Ships: No Longer Available Details
Brand:ASUS Web Site
Manuf No:P5K-VM
 P5KVM
Shipping Weight:2 KG How Much?
Date Added:17/7/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

P5K-VM
ASUS Super Memspeed Technology Enhances Memory Speed
- Intel LGA775 Platform
- Intel G33 chipset
- Dual-channel DDR2 1066/800/667 MHz
- 2x1394
- 12xUSB 2.0
- All High-quality Conductive Polymer Capacitors


ASUS Super Memspeed Technology Enhances Memory Speed

LGA775 Intel Quad-core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1333 / 1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.

LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
Intel G33 Chipset
The Intel G33 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.
Native DDR2 1066 Support
To attain top performance, ASUS engineers have successfully unleashed the true potential of DDR2 memory. While in DDR2 1066 mode, ASUSs exclusive technology offers a choice of FSB 1333 - providing great performance for 3D graphics and other memory demanding applications.
ASUS Super Memspeed Technology
Surpass the Limit with Easy Overclocking Automatically
To attain top performance, ASUS has managed to break through current FSB and DRAM ratio proportions by utilizing Super Memspeed Technology - the latest technology that provides even more precise overclocking options to unleash the true potential of DDR2 memory. Native DDR2 1066 maximizes system performance by eliminating the bottleneck when overclocking both the CPU and memory - providing great performance for 3D graphics and other memory demanding applications.
Save 50% CPU Power - AI Gear 2
Power Savings for Environment-Friendly Computing
AI Gear2 allows users to choose profiles to adjust CPU frequency and vCore voltage to minimize system noise and power consumption. For example, users can change the mode in real-time in the operating system to max power saving mode and can save up to 50% power for the CPU when using word processing applications.
Q-Fan
Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan. This motherboard with Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

AI Nap
Minimize noise and power consumption when temporarily away
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.

Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

C.P.R. (CPU Parameter Recall)
Protect your BIOS data when overclocking.
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

Uses 100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
LGA775 socket for Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 Processors
Compatible with Intel 05B/05A/06 processors
Support Intel next generation 45nm Multi-Core CPU
Chipset
Intel G33 / ICH9 with Intel Fast Memory Access Technology
Front Side Bus
1333 / 1066 / 800 MHz
Memory
4 x DIMM, max. 8GB, DDR2 1066*/800 / 667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* The chipset officially supports the memory frequency up to DDR3 1066MHz/DDR2 800. Due to the tuning by ASUS exclusive technology, this motherboard natively supports up to DDR3 1333/DDR2 1066MHz. Please refer to www.asus.com or user manual for Memory QVL
VGA
Intel Graphics Media Accelerator 3100 integrated
High-definition video processing with a maximum resolution of 2048 x 1536 bpp @75 Hz
Maximum shared memory of 256 MB
Supports Microsoft DirectX 9, OpenGL 1.5, Pixel Shader 2.0
Expansion Slots
1 x PCI-E x16
1 x PCI-E x4
2 x PCI
Storage
Southbridge
- 4 x SATA 3.0 Gb/s ports
JMicron JMB368 PATA and SATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
LAN
Marvell88E8056 PCI-E Gigabit LAN controllers
PCIe Gb LAN controller featuring AI NET2
Audio
Realtek ALC 883, 8-channel High-Definition Audio CODEC
- Support Jack-Sensing, Enumeration, Multi-streaming
- Coaxial S/PDIF out ports at back I/O
- ASUS Noise Filter
IEEE 1394
VIA VT6308S controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
USB
12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS AI Lifestyle Features
ASUS AI Lifestyle Features:
- AP Trigger
- ASUS AI Gear2
- ASUS AI Nap
- ASUS Q-Fan
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
ASUS Super Memspeed Technology
vCore: Adjustable CPU voltage at 0.0125V increment
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tunning from 667MHz up to 1333MHz for DDR2
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x Parallel port
1 x S/PDIF Out (Coaxial)
1 x IEEE1394a
1 x RJ45 port
6x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
1 x AP Trigger connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
O/S Compatibility
Windows Vista/XP
Accessories
UltraDMA 133/100/66 cable
FDD cable
2x Serial ATA cables
1 x 2-port Serial ATA power cable
I/O Shield
User's manual
3 in 1 Q-connector
Support CD
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
Form Factor
uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.




Product Warranty


1 Year Return to Base
