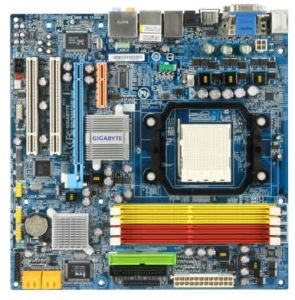

Gigabyte GA-MA69GM-S2H Motherboard
AM2, 690G, 4x DDR2-800, PCI-Ex16, SATA-II, RAID, GigLAN, 8Chl, Firewire, VGA+DVI, HDMI, mATX


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:74074
Usually Ships: No Longer Available Details
Brand:Gigabyte Web Site
Manuf No:GA-MA69GM-S2H
 GAMA69GMS2H
Shipping Weight:2 KG How Much?
Date Added:20/7/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

GA-MA69GM-S2H (rev. 1.0)
AMD 690G chipset
  1. Supports AMD Athlon64/ Sempron Socket AM2 platform
  2. Dual-Channel DDR2 800 for outstanding system performance
  3. Integrated ATI Radeon X1250-based graphics
  4. Ultimate graphics performance with PCI-E x16 interface
  5. Integrated SATA 3Gb/s with RAID function
  6. Features high speed Gigabit Ethernet and IEEE 1394
  7. Integrated ALC889A 8-Channel High Definition audio with 106 dB Signal to Noise ratio, fully support Blu-ray/ HD DVD playback
  8. Integrated DVI/ HDMI interface with HDCP
  9. TV out cable with S-video/ YPbPr interface
  10. Supports Windows Vista Premium

Overview

  Introduction
GIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with innovative features- Safe, Smart Technologies. The new S series motherboards GA-MA69GM-S2H; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!
  Smart
The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  Safe
Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE new S series socket AM2 solutions all enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new...more
  AMD Validated Solution (AVS) qualified
AMD Validated Solutions (AVS) takes the guesswork out of building and selling high-quality, reliable commercial solutions based on AMD64 technology. GIGABYTE has teamed with AMD to offer best-of-breed commercial platforms with high quality, high efficiency, and services support to meet the AVS commercial stable infrastructure.
  AMD AthlonTM 64 FX/ 64 X2 / 64 Processor
The leading-edge performance and unparallel technology of AMD Athlon64 socket AM2 series processor has built its strength on the well-known AMD64 framework which consisted of 64-bit computing platform, HyperTransport Technology, and integrated memory controller. The latest Athlon64 socket AM2 processor brings the power and multitasking performance on the desktop platform and ensures superior performance on mission critical business applications.
  AMD 690G Chipset
The brand new AMD 690G chipset features ATI Radeon X1250-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX9, Pixel Shader V2.0, ATI Avivo Technology, ATI SurroundView Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  Superior Dual channel DDR2 800 Architecture
AMD Athlon TM 64 series processor achieves the milestone for desktop computing with the CPU-integrated memory controller. This platform supports dual channel DDR2 800 memory architecture with high bandwidth of up to 12.8 GB/s and shorter memory accessing latency thus delivering the greatest memory performance.
  PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices
  HDMI Interface
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
    ALC889A with DTS Connect Enables a Superior Audio Experience



Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.




Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.

7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
  Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
  SATA 3Gb/s & RAID
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The SATA RAID allows multi-disk designs to be set up as RAID 0, 1, 0+1 based on users priority of protection/ performance, and which even makes more accessible by introducing the innovative windows-based facility.
  IEEE1394 motherboard
This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.

Specification
CPU
  1. AMD Socket AM2 Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon 64 / Sempron processors
Chipset
  1. North Bridge Chipset: AMD 690G
  2. South Bridge Chipset: ATI SB600
  3. Super I/O chip: ITE IT8716
  4. Integrated Peripherals
    1. Realtek RTL8110 Gigabit Ethernet
    2. Realtek ALC889A Audio Codec
Memory
  1. 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
  2. Supports dual channel DDR2 800/667/533/400 DIMMs
  3. Supports 1.8V DDR2 DIMMs
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
Internal I/O Connectors
  1. 1 24-pin ATX power connector
  2. 1 4-pin ATX 12V power connector
  3. 1 floppy connector
  4. 1 IDE connector
  5. 4 SATA 3Gb/s connector
  6. 1 CPU fan header
  7. 1 system fan header
  8. 1 front panel header
  9. 1 front audio header r
  10. 1 CD In connector
  11. 1 SPDIF In/Out header
  12. 1 TV Out header
  13. 2 IEEE 1394a header
  14. 3 USB 2.0/1.1 header for additional 6 USB 2.0/1.1 ports by cables
  15. 1 Parallel port header
  16. 1 Serial port header
  17. 1 Power LED header
  18. 1 Chassis Intrusion header
Expansion Slots
  1. 1 PCI Express x 16 slot
  2. 1 PCI Express x 4 slot
  3. 2 PCI slot
Back Panel Connectors
  1. 1 PS/2 keyboard port
  2. 1 PS/2 mouse port
  3. 1 D-Sub port
  4. 1 DVI-D port (Note 2)
  5. 1 HDMI port
  6. 1 Optical SPDIF Out port
  7. 1 IEEE 1394a port
  8. 4 USB 2.0/1.1 port
  9. 1 RJ-45 LAN port
  10. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
(Note 2) The DVI-D port does not support D-Sub connection by adaptor.
Power
  1. ATX power connector and ATX 12V connector
Form Factor
  1. Micro ATX form factor; 24.4cm x 24.4cm
H/W Monitoring
  1. System voltage detection
  2. CPU / System temperature detection
  3. CPU / System fan speed detection
  4. CPU / System warning temperature
  5. CPU fan failure warning
  6. Supports CPU Smart Fan function   (Note 3)
(Note 3) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
BIOS
  1. 1 4Mbit flash ROM
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Other Features
  1. Supports @BIOS
  2. Supports Download Center
  3. Supports Q-Flash
  4. Supports EasyTune (only supports Hardware Monitor function) (Note 4)
  5. Supports Xpress Install
  6. Supports Xpress Recovery2
  7. Supports Xpress BIOS Rescue
(Note 4) EasyTune functions may vary depending on different motherboards.
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.


Product Warranty


1 Year Return to Base
