ATEN VS-481 Video Switch - 4-Port HDMI

IMG 1 of 1
No Longer Available
Part Number:
74336
(?) Brand:
ATEN
Manuf No:
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, VS481, VS-481
Features:

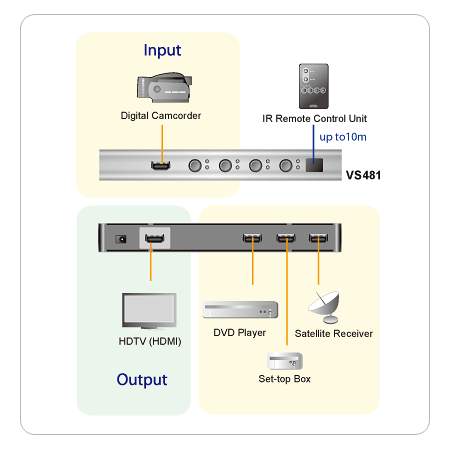

The VS-481 4-Port HDMI Switch allows you to quickly and easily share your HDMI display device with four HDMI input sources.

The VS-481 allows convenient switching between digital devices such as DVD players, Satellite receivers and digital camcorders. The VS481 allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.
  • Economical solution for home theatre integration.
  • Easy switching among four digital video signals (e.g. DVD and Satellite receiver) by remote control or front panel pushbuttons.
  • LED indication of video source channels.
  • Supports HDTV resolution of 480p, 720p, 1080i and 1080p & Supports VGA, SVGA, SXGA (1280x1024) and UXGA (1600x1200).
  • Plug-and-play. No software installation required. Installs in minutes.
  • HDMI certified.
  • HDCP 1.1 Compliant.
  • Remote Control or Front Panel pushbuttons source selection.

Specifications :

Device Connections 4
Port Selection Pushbutton, IR Remote Control
Connectors Display HDMI Out 1 x HDMI Type A Female (Black)
Device HDMI In 4 x HDMI Type A Female (Black)
Power 1 x DC Jack (Black)
Switches Port 4 x Pushbutton
LEDs On Line 4 (Orange)
Selected 4 (Green)
Video 1600x1200, DDCB
Power Consumption DC 5.3 V, 2 W
Environment Operating Temp. 0 - 50 C
Storage Temp. -20 - 60 C
Humidity 0-80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.45 kg
Dimension ( L x W x H ) 20.00 x 8.00 x 2.50 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
