IMG 1 of 1
No Longer Available

Part Number:
74676
(?) Brand:
Manuf No:
KFN4-D16/1U
KFN4D16/1U
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
KFN4-D16/1U, KFN4D16/1U

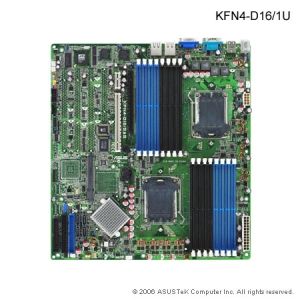

KFN4-D16/1U
The Cost Effective 1U Rack Server with Powerful Computing
This serverboard is based on AMDs latest Socket F platform, with 2 next-generation AMD Opteron processors (Socket 1207) and nVIDIA nForce 2000 Professional chipset support ready. The 16 DIMM slots support dual channel ECC Reg. DDR2-667 up to 64GB, which is able to meet your critical computing environment demands.



The Cost Effective 1U Rack Server with Powerful Computing

This serverboard is based on AMD's latest Socket F platform, with 2 next-generation AMD Opteron processors (Socket 1207) and nVIDIA nForce 2000 Professional chipset support ready. The 16 DIMM slots support dual channel ECC Reg. DDR2-667 up to 64GB, which is able to meet your critical computing environment demands.

Immediate CPU Performance Scale Up
Support Dual AMD Socket F processors, with Dual-core ready and 64bit operating system. 2 CPU Sockets provide almost 4 CPU performance!

High performance with ECC memory protection
Support up to 16 DIMM, 64GB DDR2-667 ECC Registered memory space. DDR2-667 provides better performance over last generation Opteron DDR 400 platform
Highly memory capacity to meet your critical computing environment needs

Superb network performance with server connectivity
Dual PCI-E Gb LAN feature moves network data more efficiently
Teaming and fail over function provide more flexible and reliable server connectivity

IPMI2.0 for Online & Offline Management
Out-of-band Management via ASMB3 with SOL support
ASWM 2.0 provides in-Band web-based Management capability for your server

Intelligent SmartFan 2
Proactively fine-tune fan speed base on System thermal condition for better acoustic

KFN4-D16/1U Specifications

Processor

AMD Opteron 2000 series processors (up to 2.8GHz)

Chipset

nVIDIA CK804 Professional

Memory

Dual Channel ECC Reg. DDR2 667 DIMM, maximum up to 64GB / 16 slots

Expansion

1 * PCI-E x16 (x8 link)
1 * HTX

LAN Chip

2 * Broadcom5721 PCI-E Gb LAN

Form Factor

12" x 13"







Specification
Processor / System Bus
2 * socket 1207
AMD OpteronTM 2000 Series processors (up to 2.8GHz)
Core Logic
nVIDIA CK8-04 Professional
Form Factor
12" * 13"
Chassis Support
N/A
ASUS Features
Smart Fan: Smart Fan II
Rack Ready (Rack and Pedestal dual use): V
ASWM2.0: V
Memory
Total Slots: 16
Capacity: Maximum up to 64GB
Memory Type: Dual Channel ECC Reg. DDR2 667
Memory Size: 512 MB, 1 GB, 2GB, 4GB
Expansion Slots (follow SSI Loacation #)
Total Slots: 2
Slot 1: 1 * PCI-E x 16 (x8 link)
Slot 2: 1 * HTX
Additional Slot 1: 1 * SODIMM socket for ASMB3-SOL
Storage
IDE Controller
IDE: Dual Channels Bus Master IDE support UltraATA 100/133

SATA Controller
nVIDIA CK8-04 Pro:
4 * SATA Ports, RAID 0, 1, 01, 5, JBOD
Networking
LAN: 2 * Broadcom 5721 PCI-E LAN
Graphic
VGA: ATI ES1000 32MB DDR SDRAM
Onboard I/O Connectors
Floppy Connector: 1 PSU Connector24-pin SSI + 8-pin ATX 12V
Management Connector: 1 * SODIMM socket for ASMB3-SOL
USB Connectors: 1 (suppot 2 x USB)
Fan Header: 6 * Fan
SMBus: 1 * SMbus
Chassis Intruder: 1
Front LAN LED: 2
Serial Port Header: 1
Rear I/O Connectors
External Serial Port: 1
External USB Port: 2
VGA Port: 1
RJ-45: 2
PS/2 KB/Mouse: 1
Management Solution
Software: ASWM2.0
Out of Band Remote Management: ASMB3
Monitoring
CPU Temperature: V
FAN RPM: V
Safety
N/A
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Anti-virus Software
N/A
OS Support
N/A
Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Optional Parts
N/A
Product SKUs
N/A

* The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
