All stock codes associated to this product
WAGL102, WAGL102(ACCESSPT), WAGL102100AUS, WAGL102-100AUS, 1170821, XWAGL102100AUS, XWAGL102-100AUS, 606449052930
PROSAFE™ DUAL BAND LIGHT WIRELESS ACCESS POINT
WAGL102

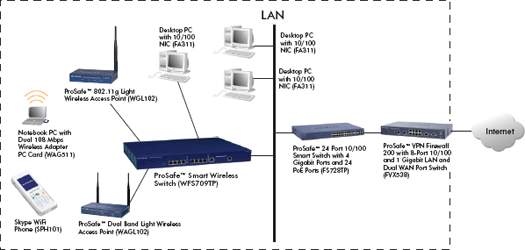

- Part of the NETGEAR ProSafe Smart Wireless Solution, the 802.11a/g Dual Band Light Wireless Access Point will only work with the NETGEAR ProSafe Smart Wireless Switch.
- Not a standalone access point, managed by WFS709TP.
Intelligent Networking Features for a Scalable, Secure Solution
NETGEARs ProSafe Dual Band Wireless Access Point WAGL102 delivers the secure, reliable, high performance wireless local area networks (WLANs) todays mobile workforce demands. The WAGL102 Access Point supports both 5 GHz and 2.4 GHz 54 Mbps radio transmission in both 802.11g and 802.11a in turbo mode. It supports up to 128 simultaneous wireless clients and client types within the same coverage area. Managed and configured by the NETGEAR Prosafe Smart Wireless Switch, the WAGL102 is a light wireless access point which is part of the overall NETGEAR ProSafe Smart Wireless Solution. The WAGL102 supports integrated IEEE 802.3af Power over Ethernet (PoE) and Wi-Fi certification.
Secure
Managed and configured by the NETGEAR ProSafe Smart Wireless Switch (WFS709TP), the WAGL102 is a light wireless access point that implements the 802.11 standard. As part of the centralized architecture, much of the security configuration such as WPA2-Enterprise (802.11i), WPA2 and 802.1x support happens at the NETGEAR ProSafe WFS709TP. The NETGEAR ProSafe Smart Wireless Switch also supports MAC address authentication, support for multiple BSSID/ VLANs and guest/contractor access.
Versatile
As part of the NETGEAR ProSafe Smart Wireless Solution, the WAGL02 is cost-effective and simple to install and use. In addition, its Wi-Fi certified and plenum ratedappropriate for placement above drop-down ceilings and under raised floors. Fitted with two powerful detachable 5 dBi antennas and compatible with NETGEARs ProSafe 2.4 GHz antennas for expanded wireless capacity and range. Protected with a NETGEAR Lifetime Warranty, the WAGL102 includes the embedded IEEE 802.3af Power over Ethernet (PoE) port which expands installation options by eliminating the need to locate the Light Wireless Access Point near a power outlet.
Wireless
- Standard: IEEE 802.11a up to 108 Mbps; 802.11g up to 108 Mbps Wireless Access Point
- Antennas: Two (2) detachable antennas: (1) 5 dBi, 2.4 GHz and (1) 5 dBi 5 GHz
Physical Interfaces
- LAN Port: One (1) 10/100BASE-T Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
- Power adapter: 12V DC, 1.0A power supply; plug is localized to country of sale
- Six (6) LEDs: Power, test, 100 Mbps, link/ACT, and WLAN 802.11g
- Antenna connector: Two (2) reverse SMA antenna connectors
Managed by NETGEAR ProSafe Smart Wireless Switch (WFS709TP)
Receive Sensitivity
- 802.11b
| 2 Mbps |
- 94 dBm |
| 5.5 Mbps |
- 92 dBm |
| 11 Mbps |
- 90 dBm |
- 802.11g
| 6 Mbps |
- 91 dBm |
| 9 Mbps |
- 91 dBm |
| 12 Mbps |
- 90 dBm |
| 18 Mbps |
- 87 dBm |
| 24 Mbps |
- 85 dBm |
| 36 Mbps |
- 80 dBm |
| 48 Mbps |
- 75 dBm |
| 54 Mbps |
- 70 dBm |
- 802.11a
| 6 Mbps |
- 92 dBm |
| 9 Mbps |
- 91 dBm |
| 12 Mbps |
- 90 dBm |
| 18 Mbps |
- 86 dBm |
| 24 Mbps |
- 84 dBm |
| 36 Mbps |
- 79 dBm |
| 48 Mbps |
- 72 dBm |
| 54 Mbps |
- 70 dBm |
Power Over Ethernet Required
Standards, Safety and Electromagnetic Conformance
- IEEE 802.11g (2.4 GHz Frequency Band, DSSS Modulation Type)
- IEEE 802.3af Power over Ethernet (PoE)
- FCC Part 15 Subpart B and Subpart C
- CE EN 60950-1 (2001), EN 301 489-17 V1.2.1 (2002), EN 301 489-1 V1.4.1 (2002), EN 300 328-1 (2001-12), EN 300 328-2 (2001-12), R&TTE Directive
- 99/5/EC, CSIPR22 (B), AS/NZS 3548 (B)
- Plenum Rated
- IEEE 802.11g (2.4 GHz Frequency Band, DSSS Modulation Type)
- IEEE 802.11a IEEE 802.3af Power over Ethernet (PoE)
- FCC Part 15 Subpart B , Subpart C and E
- C-Tick: AS/NZ 3548 Class B
- CE EN 60950-1 (2001), EN 301 489-17 V1.2.1 (2002-08), EN 301 489-1 V1.4.1 (2002-08), EN 300 328-1 (2001-12), EN 300 328-2 (2003-4), EN 301893(5GHz), EN 60601, R&TTE Directive 99/5/EC
Physical Specifications
- Dimensions (h x w x d): 32 x 190.5 x 122 mm (1.25 x 7.5 x 4.8 in)
- Weight: .62 kg (1.3 lb)
Environmental Specifications
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 90% maximum relative humidity, non-condensing
Warranty
- Access point: NETGEAR Lifetime Warranty
- Power adapter: NETGEAR 3-year Warranty
Package Contents
- ProSafe Dual Band Wireless Access Point (WAGL102)
- Two (2) 5 dBi Detachable Antennas
- Power adapter
- Ethernet cable
- Installation guide
- Warranty/support information card
