Network Standard
|
IEEE 802.11bIEEE 802.11gIEEE 802.3IEEE802.3xIEEE 802.3uIEEE 802.1xIEEE 802.11iIPv4IPv6CSMA/CACSMA/CDICMP
|
|
Features
|
Wi-Fi Enhancement:
- BroadRangeTM delivers 300% more signal coverage than standard 802.11g
- 125 High Speed Mode(HSM) technology enables 135% transfer speed compared to standard 11g product

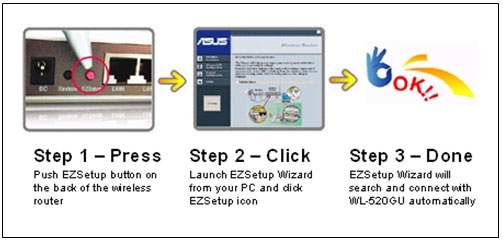

EZSetup Button:
- Automatically SSID and WEP or WPA configuration
Quality of Service:

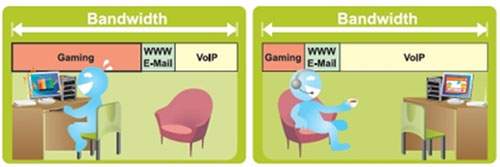

- EZQoS BODTM (Bandwidth-On-Demand)
- WMM (Wi-Fi multimedia)
|
|
Operating Frequency
|
2.4G ~ 2.5GHz
|
|
Data Rate
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps
|
|
Operation Channel
|
11 for N. America, 14 Japan, 13 Europe (ETSI)
|
|
LAN Ports
|
WAN x 1, LAN x 4 RJ45 for 10/100 BaseT
|
|
Antenna
|
Support Antenna Diversity, 1 internal antenna on board, 1 external detachable antenna
|
|
USB Interface
|
1 x USB2.0 for printer sharing
|
|
LED Indicator
|
Power x 1, AIR x 1, WAN x 1, LAN x 4
|
|
Security
|
64/128-bit WEP, WPA, WPA2, WPA-TKIP/AES, WPA-PSK, WPA-ENT, Radius with 802.1x
|
|
Authentication
|
MAC address, 802.1x
|
|
Firewall
|
NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN ping control, Single Port and Port Range filter, URL based filter, MAC Address filter
|
|
VPN Features
|
IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through
|
|
Network Protocol
|
Support UPnP, DHCP, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through, WDS
|
|
Utilities
|

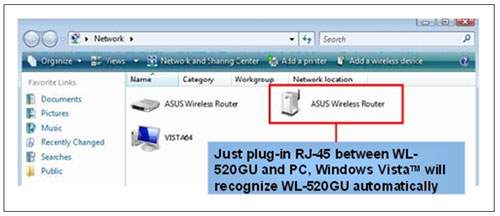

- Device Discovery: Discovers WL520GU in network and help user invoke Web Configuration page
- Firmware Restoration: Restores firmware while system enters rescue mode
- EZSetup: Helps user setup wireless and Internet connection easily
All PC utilities support Microsoft XP, 2000, Vista
|
|
Power
|
WL-520GU: DC Output: +5V with max. 2A current Note: Use only the adapter included in the package. Using other adapters may damage the device.
|
|
Temperature
|
Operating: 0~40 C;
Storage: -30~50C
|
|
Humidity
|
Operating: 50~90%;
Storage: 20~90%
|
|
Dimensions
|
164 x 116.5 x 31 (L x W x H) mm
|
|
Weight
|
262g
|
|
Networking
