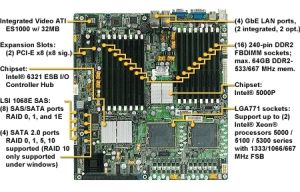

Processor
Dual LGA771 sockets
Supports up to two Intel Xeon processors
5000/5100/5300 series; dual-core
1333/1066/667MHz FSB; VRD 11.0
Chipset
Intel 5000P chipset
Intel 6321ESB I/O Controller Hub
Winbond 83627HF Super I/O chip
Memory
(16) 240-pin DDR2 FBDIMM sockets
Supports maximum of 64GB of DDR2-533/667
Expansion Slots
(1) PCI-E x8 slot (w/ x8 signals from MCH)
(1) PCI-E x8 slot (w/ x8 signals from ESB2)
Total of two expansion slots
Integrated I/O
(1) IDE port
(1) floppy port
(1) 9-pin serial port (pin header)
(2) USB 2.0 ports (via cable)
(8) SAS/SATA ports
(SAS 4 in 1 & four standard connectors)
(4) Standard SATA connectors
Back Panel I/O ports
Stacked PS/2 mouse & keyboard ports
Stacked two USB 2.0 ports
(1) 9-pin COM (serial) port
(1) 15-pin VGA port
(2) side-by-side RJ45 (GbE LAN) ports
System Management
Winbond W83793G Hardware Monitoring IC
CPU thermal & voltage monitor support; PECI
circuit for "Woodcrest" processor thermal monitor
Multiple 4-pin fan monitoring headers
Infineon SLB9635 TPM
(Trusted Platform Module); option
Integrated SAS Controller
LSI 1068E SAS controller
(8) SAS ports; RAID 0, 1, and 1E supported
Supports Integrated Mirroring, Integrated
Enhanced Mirroring, and Integrated Stripping
|
|
|
Integrated SATA Controller
Four (4) SATA 2.0 ports from Intel ESB2
RAID 0, 1, 5 and 10 support
(RAID 10 only supported under Window)
Integrated Video Controller
ATI ES1000; PCI interface
32MB DDR frame buffer of video memory
Integrated LAN Controllers
One Intel "Gilgal" (82563EB) PHY
- Direct link to ESB2
- Two Gigabit LAN ports
- Two front panel LED pin headers
One Intel "Ophir" (82571EB); optional
- Link to MCH
- Two Gigabit LAN ports
- Two front panel LED pin headers
Intelligent Platform Management Interface (optional)
Baseboard Management Controller (BMC)
- BMC from daughter card M3291 (optional)
Server Management Daughter card via built-in
2x25 header
Tailored for IPMI 2.0 specification
Supports remote Power on/off and reset support
(IPMI-over-LAN)
BIOS
Phoenix BIOS on 8Mbit Flash ROM
Supports APM 1.2, ACPI 1.0b
Serial Console Redirect
PXE via Ethernet, USB device boot
PnP, DMI 2.0, WfM 2.0 Power Management
User-configurable H/W monitoring
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support
Form Factor
SSI / Extended ATX footprint (12" x 13")
Power
EPS12V / SSI (24 + 8 +4 pin) power connectors
Regulatory
FCC Class B (Declaration of Conformity)
European Community CE (DoC); BSMI (opt.)
|
|
