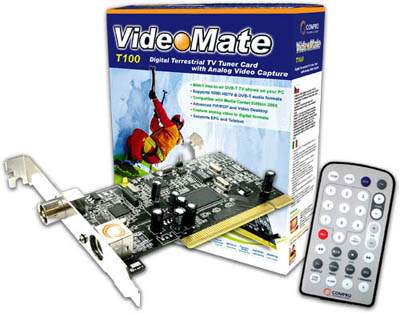

Compro VideoMate T100 TV Tuner Card - Digital DVB-T, Analog Video Capture, Low Profile, Remote - PCI
Cart
Quantity:
Add Compro VideoMate T100 TV Tuner Card - Digital DVB-T, Analog Video Capture, Low Profile, Remote - PCI to your wishlist
Click here to write a review on Compro VideoMate T100 TV Tuner Card - Digital DVB-T, Analog Video Capture, Low Profile, Remote - PCI

Large image is available
Product May Vary From Image

Our Price:
$60.70

Techbuy Part No:75696
Usually Ships: 1-3 Days Details
Brand:Compro
Manuf No:
Shipping Weight:2 KG How Much?
Date Added:28/8/2007
Rating: Not Rated
Currency:AUD Convert

Product Description


VideoMate T100
Introduction
Compro VideoMate T100 is an advanced silicon digital TV tuner card with Philips 9-bit ADC chip and low-profile card design; which can easily fit barebone or mini PC cases to provide free-to-air HDTV quality digital terrestrial TV reception. VideoMate T100 accompanied by Compros exclusive ComproDTV 2 software to provide superior video quality. It brings a world of enhanced TV services directly to your PC, turning your computer into a home entertainment center by bringing digital TV viewing and personal digital video recording capabilities to your PC.
In addition, VideoMate T100 provides many useful features in software: Advanced Picture in/out Picture not only allow you to watch live TV and playback video files at the same time, but also let you open up to 1 main channel and 3 sub channel windows at once; customize channel order and my favorite channel list for more easy-to-use; Video Desktop to setup the live TV screen in wallpaper mode, customize brightness, hue, saturation, contrast, sharpness, language selection in each TV channel; and support digital EPG, Subtitle, and Teletext in available area for better digital TV experience.
Complete with a card design remote and bundled with Compros exclusive ComproDTV 2 and ComproDVD 2 software, VideoMate T100 gives users a complete and convenient control solution for easy viewing and recording. With these powerful features, VideoMate T100 DVB-T tuner card is undoubtedly your best digital TV and video capture choice.
Key Features
Watch Free-to-Air DVB-T digital TV shows on your PC
Silicon digital TV tuner with Philips 9-bit ADC chip
Supports SDTV and 1080i HDTV (where available)
Advanced PIP/POP features up to 4 sub channels watching
Video Desktop to setup the live TV screen as wallpaper
Customize Brightness, Hue, Saturation, Contrast, and audio selection in each TV channel
Digital TV supports MPEG-2 and Transport Stream recording/playback
Capture analog video from S-Video to digital files
Analog video capture supports MPEG-1/2/4 formats recording
Analog video capture supports pause while recording and automatic spilt file size
Timeshifting, channel surfing, and still frame capture
Supports audio and language selection in available channels
Supports EPG, subtitle and Teletext (where available)
Fully functional IR remote control for TV and DVD playback
Microsoft BDA driver


Specifications
Layout
Dimension 120 x 65 mm
PCB Color Black
Video System ( Analog Capture )
Capture Format
NTSC/PAL
Video ADCs 9-bit Video CMOS Analog-to-Digital Converters (ADCs)
Resolution (Screen size) PAL 720*576 max
NTSC 720*480 max
Video bit-rate 0.2M ~10M bit / second
Video Compression ISO / IEC 13818-2 (MPEG-2)
ISO / IEC 11172-2 (MPEG-1)
Audio System ( Analog Capture)

Stereo Format

Stereo (through sound card)

Audio ADCs

16-bit audio ADCs support capture of audio signals

Audio Sample Rate

44.1KHz / 48KHz (depending on sound card)

Audio bit-rate

128k~384k bit/second

Audio Compression

ISO/IEC 11172-3 Layer 2 (The real time software compression)

Video/Audio System ( Digital TV )

DVB Standard

DVB-T

Video/Audio Formats

Video : MPEG-2 Main Profile & Main Level
Audio : MPEG-2 Audio Level I & II
Tuner ( Digital TV )

Impedance

75 Ohm

Frequency Range

48.25 - 863.25 MHz
I/O Connector

External

DVB-T digital TV signal input (I-type connector)
S-Video connector
IR receiver connector







Product Warranty


1 Year Return to Base
