Intel DG31PR - OEM Motherboard
  • LGA775, G31, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX

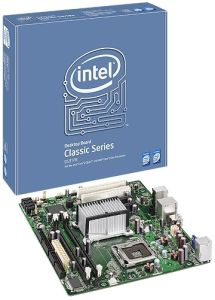

IMG 1 of 1
No Longer Available
Part Number:
75910
(?) Brand:
Intel Web Site
Manuf No:
BLKDG31PR
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BLKDG31PR

Intel  Desktop Board DG31PR

The Intel Desktop Board DG31PR Classic Series has been optimized to deliver new levels of performance and reliability for home and business users.

The Intel Desktop Board DG31PR is built to support a range of processors including the Intel Core2 Quad processor (95W TDP) and the Intel Core2 Duo processor. This board can support up to 4GB of dual channel DDR2 800/667 MHz SDRAM. It also offers Intel High Definition Audio with support for 5.1 surround sound, integrated 10/100/1000 Network connection and ample USB connectors for all your computer paraphernalia.

Features and benefits

Form factor microATX (8.60 inches by 9.60 inches [218.44 millimeters by 243.84 millimeters])
Processor
  • Support for an Intel Core2 Quad processor (95 W TDP) in an LGA775 socket with an 1066 MHz system bus
  • Support for an Intel Core2 Duo processor in an LGA775 socket with an 1333, 1066 or 800 MHz system bus
  • Support for an Intel Pentium Dual-Core processor in an LGA775 socket with an 800 MHz system bus
  • Support for an Intel Celeron 400 sequence processor in an LGA775 socket with an 800 MHz system bus
Memory
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
  • Support for up to 4 GB of system memory
Chipset
  • Intel G31 Express Chipset
Audio Intel High Definition Audio subsystem in the following configuration:

  • 6-channel (5.1) audio subsystem using the Realtek* ALC888 audio codec
Video Intel Graphics Media Accelerator 3100 onboard graphics subsystem
I/O control Legacy I/O controller for diskette drive, serial header, and PS/2* ports
LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek* RTL8111-GR Gigabit Ethernet Controller
Peripheral interfaces
  • Eight USB 2.0 ports
  • Four Serial ATA IDE interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
  • One serial port header
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion capabilities
  • Two PCI Conventional* bus add-in card connectors
  • One PCI Express* x1 bus add-in card connectors
  • One PCI Express x16 bus add-in card connectors

Features BOX/BLKDG31PR
Board series Classic series
BIOS ID string PRG3110H.86A
AA# (altered assembly) D97573-xxx
Processor Intel Core2 Quad processor (95W TDP)
Intel Core2 Duo processor
Intel Pentium dual-core processor
Intel Celeron 400 Sequence processor
Performance
(04B/05B)/mainstream
(04A/05A) vreg support 		95W FMB
FSB support 1333/1066/800 MHz
Processor socket LGA775
Chipset Intel G31 Express Chipset
Integrated graphics Yes
Form factor microATX
Memory - maximum supported 4 GB
Memory frequency (refer to TPS for configuration requirements) Dual Channel DDR2 800/667 MHz
Audio Intel High Definition Audio (RealTek* ALC888*)
S/PDIF S/PDIF Out Audio header (3x1)
LAN controller 10/100/1000 LAN (RealTek* RTL 8111*)
USB connectors 8 USB 2.0 (4-F, 4-B)
PCI slots 2
PCI Express x16 1
PCI Express x1 1
SATA (ports) 4 (black)
PATA (ports) 1 port, 2 devices
IEEE-1394a ports None
TPM None
Intel Matrix Storage Technology (RAID) None
Hyper-Threading Technology support Yes
Instantly Available PC Yes
Supports Intel Viiv processor technology Yes

No additional files, specification sheets, guides or documentation found for product.
