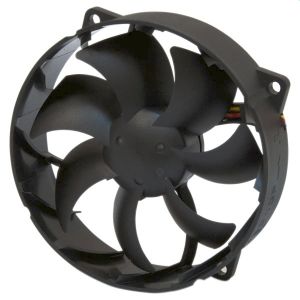

SilverStone FN83 Case Fan - 80x80x25mm, 92mm Fan Blades, Dual Ball Bearings, 1600rpm, 19.8dBA - Black

IMG 1 of 1
No Longer Available
Part Number:
76522
(?) Brand:
SilverStone Web Site
Manuf No:
G42FN083B00020
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
G42FN083B00020, FN83
  FN83

Special Feature
  Bullet hub design for aerodynamic airflow
Rifling wind tunnel for better and more accurate wind direction
Low acoustic thermal solution
Extend bearing design


DIMENSION 80 x 80 x 25mm (mounting frame)
92 x 92 x 25mm (overall)
ITEMS STANDARD REMARKS
RATE VOLTAGE
  12V DC

START VOLTAGE
  6V DC
  POWER ON / OF
OPERATING RANGE
  6.0V~13.8V DC

SPEED
  1600 rpm +_ 10% rpm
  IN FREE AIR AT RATED VOLTAGE
AIRFLOW
  31.52 CFM
  AT RATED VOLTAGE
STATIC PRESSURE
  1.13mmH2O
  AT RATED VOLTAGE AT ZERO AIRFLOW
NOISE LEVEL
  19.8 dB(A)
  IN FREE AIR AT RATED VOLTAGE
CONSUMING CURRENT
  0.13 Amp MAX
  IN FREE AIR AT RATED VOLTAGE
CUNSUMING POWER
  1.56W MAX
  IN FREE AIR AT RATED VOLTAGE

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
