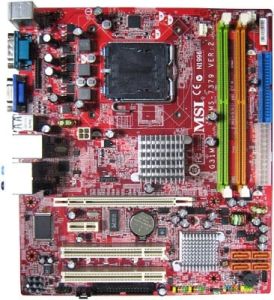

MSI G31M-F Motherboard
LGA775, G31, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 8Chl, VGA, mATX

CPU

Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.

Please refer to CPU Support for compatible CPU; the above description is for reference only.



Chipset


Intel G31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.

Intel ICH7/ICH7R (optional) Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to8 ports.
-4 SATA ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- SATA1~4 support RAID 0/ /1/ 10/ 5 mode(optional)



Main Memory

Supportstwo unbuffered DIMM of 1.8 Volt DDR2 SDRAM
Supports up to 4GB memory size.
Supports dual channel DDR2 memory architecture.
Supports DDR2 667/800 memory interface.
Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.



Slots

1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
1 x PCI Express x1 slot (PCI Express Bus SPEC V1.0a compliant)
2 x PCI slots (support 3.3V/ 5V PCI bus Interface)





On-Board IDE/SATA

One Ultra DMA 66/100 IDE controller integrated inICH7/ICH7R
- Supports PIO, Bus Master operation modes.
- Can connect up totwo Ultra ATA drives.

SATA controller integrated in ICH7/ICH7R
- Up to 300MB/sec transfer speed.
- Supports four SATA ports.



Audio

Chip integrated by Realtek ALC888/ 883 (optinal)/ 861 (optional)
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium SPEC



LAN

Supports 10/ 100 Fast Ethernet by Realtek 8101E
Or Supports PCIE LAN 10/100/1000 Fast Ethernet by Realtek 8111B (optional)/ 8111C (optional)



TPM (Trusted Platform Module)

The Trusted Platform Module Solution



On-Board Pinheaders/ Connectors

- 1 Parallel port pinheader supporting SPP/EPP/ECP mode
- 2 USB 2.0 pinheaders
- 1 CD-In pinheader
- 1 Front Panel Audio pinheader
- 1 SPDIF-Out pinheader
- 1 Chassis Intrusion Switch pinheader



Back Panel I/O Ports

- 1 x PS/2 keyboard

- 1 x PS/2 mouse
-  1 x 6 in 1 audio jack
-4 x USB 2.0 ports
- 1 x RJ45 LAN jack
-1 x Serial port
- 1 x Graphics Crad port



BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.



Dimension

24.4cm(L) x 21.5cm(W) micro-ATX Form Factor

Mounting

6 mounting holes.







MSI Reminds You... The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.
