Features
- Universal Design for Intel LGA775 and AMD AM2/754/939/940 socket
- Complete Cooling Solution: Cools CPU and the surrounding components
- New 90 mm fan blade and frame design produces greater airflow as 100 mm fan
- Easy installation design without removing the motherboard
- Copper-based and aluminum heat sink with 3 embedded heat pipes design provides excellent heat dissipation
- Super silent CPU cooler at only 22 dBA

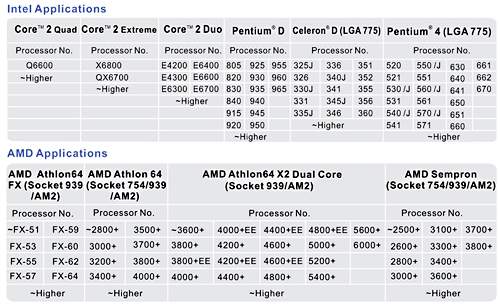

Applications

| Socket Type |
Intel LGA 775/ AMD K8/ AM2 |
| Heat Sink Dimensions |
90 x 44 x 136.5mm |
| Heat Sink Material |
Aluminum Fin/ 3 heat pipes/ Copper base |
| Fan Dimension (W / H / D) |
92 x 92 x 25mm |
| Fan Speed |
1800 R.P.M. |
| Fan Airflow |
41.76 CFM |
| Bearing Type |
Long life bearing |
| Fan Life Expectancy |
40,000 hours |
| Fan Noise Level (dB-A) |
22dBA |
| Connector |
3 pin |
| Weight |
482 g |
| Voltage |
12 V |
