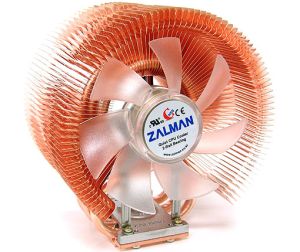

Zalman CNPS9500ALED (Copper) CPU Cooler, 2-Ball bearing, Multi Socket, Ultra Quiet 92mm Fan with blue LEDs

IMG 1 of 1
No Longer Available
Part Number:
77225
(?) Brand:
Zalman Web Site
Manuf No:
CNPS9500ALED
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/10/2007
Details Files Images & Video
All stock codes associated to this product
CNPS9500ALED
Compatible CPUs

  Socket CPU CPU Compatibility
Intel 478 Celeron Supports all speeds
Celeron D
Pentium 4
775 Celeron D Supports all speeds
Pentium 4
Pentium D
Core 2 Duo
Core 2 Quad
Core 2 Extreme
AMD AM2 Sempron Supports all speeds
Athlon 64
Athlon 64 X2
Athlon 64 FX
754 Sempron Supports all speeds
Athlon 64
939 Athlon 64 Supports all speeds
Athlon 64 X2
Athlon 64 FX
Opteron
Dual-Core Opteron
940 Athlon 64 FX Supports all speeds
Opteron
Dual-Core Opteron
Specifications

CNPS9500A LED

  - Dimensions : 85(L) x 112(W) x 125(H) mm
  - Weight : 530g
  - Base Material : Pure Copper
  - Dissipation Area : 3,698
  - Bearing Type : 2 Ball-Bearing
  - Speed : 1,350rpm 10% ~
: 2,600rpm 10%
  - Thermal
Resistance		 : 0.12 ~ 0.16C/W
  - Noise Level : 18dB 10% ~ 27.5dB 10%
FAN Speed Controller (FAN MATE 2)

  - Dimensions : 70(L) x 26(W) x 26(H)mm
  - Weight : 20g
  - Output Voltage : 5V ~ 11V 2%
  - Allowable Power : 6W or lower
  - Connector : 3-Pin
  Directions for Use


1. Does not generate noise or vibration in Silent Mode.

2. Pure copper heatsink with component layout optimized for maximum cooling efficiency.

3. Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with the use of just three.

4. Ultra slim fins (0.2mm) for minimized weight and reduced airflow resistance.

5. Equipped with Zalmans low noise 92mm fan.

6. Supports all single and dual core CPUs of Intels Socket 775/478 and all single and dual core
CPUs of AMDs Socket AM2/754/939/940.

7. The adjustable fan speed controller (FAN MATE 2) enables control of noise and cooling
performance.

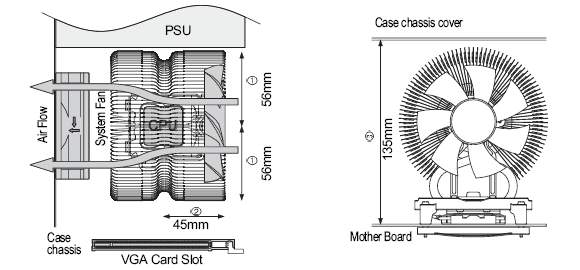

Installation Requirements

Cases equipped with an Air Guide must have their Air Guide Ducts removed before installation. Install only on systems meeting the following conditions.
1. There must be no interfering components (e.g. PSU, VGA card) within 56mm distance from the center of the PSU.

2. There must be no interfering components (e.g. ODD) within 45mm distance from the center of the CPU.

3. Case chassis cover must be distanced at least 135mm away from the motherboard.

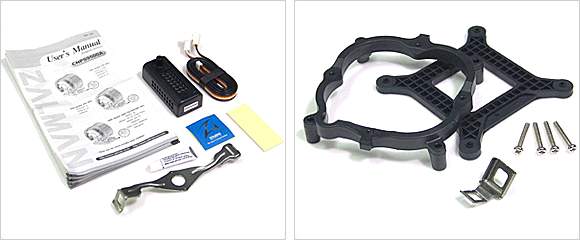

Common Components

 Cooler (CNPS9500A LED)
 Thermal Grease
 Fan Speed Controller (FAN MATE 2)
 Double-sided Tape (for Fan Mate 2 attachment)
 Cable for Fan Mate 2
 Users Manual (in English and Korean)
 Clip
 Components for Intel Socket 775

 Clip Lever A
 Clip Support for Socket 775
 Backplate for Socket 775
 Four(4) Clip Support Fixing Bolts for Socket 775

Components for Intel Socket 478

 One pair of Clip Supports for Socket 478

* Clip Lever A 		Component for AMD Socket AM2/754/939/940

 Clip Lever B

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
