| WL-330gE |
| World's Smartest Wireless Access Point |
| Innovative Integration of Access Point, Ethernet Adapter, Gateway and Universal Repeater |
|
|
Isnt it so frustrating to find out that the last Internet connection or LAN point has been taken when you just have to access the Internet?
Well, fret no more, as ASUS has released the new WL-330gE Wireless Access Point. This nifty little gadget is able to combine 4 wireless functions, namely Access Point, Ethernet Adapter, Gateway and Universal Repeater, into 1 - providing you with connectivity wherever you are.

Compact Pocket-size for Portability The ASUS WL-330gE is compact and portable - weighing in at only 2.2 oz and being only 85 mm(L)* 60 mm(W)* 17 mm(H) in size. This petite size makes it easy to carry and implement under any situation and truly makes the ASUS WL-330gE shine. With such portability, it is able to provide wireless access to the Internet easily and without hassle.
Numerous Functions To utilize the WL-330gE under AP or Gateway mode, users just have to simply connect it to the Ethernet port on the modem or a LAN connection, and it is ready to go. This is crucial when a meeting room has only one Ethernet connection and there is a need for multiple connections to the Internet. Whats more, the WL-330gE can provide superior flexibility when building a wireless network by supporting NAT and DHCP servers to enable Internet sharing. This is especially useful when you are in an outside hotspot. With the WL-330gEs "hotspot mode" under the Gateway mode, not only can your laptop access the Internet, your (or your friends) other WiFi devices like PDAs, PSPs or WiFi phones can access it as well with no extra cost.
|

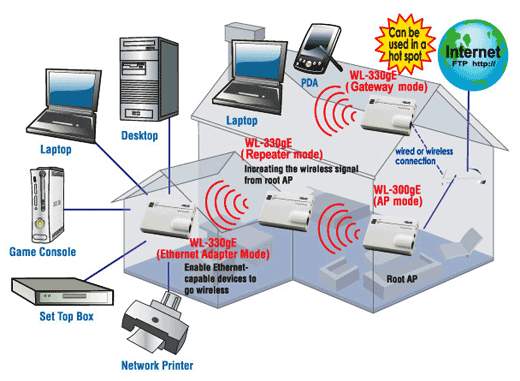

Easy to carry and easy to implement under any circumstance.
|
In the meeting room: Only one Ethernet cable in the meeting room? Use WL-330gE to share the internet access wirelessly.
|
In the hotel room: With WL-330gEs 130ft(40m) indoor range, you can work with your notebook wherever you feel most confortable.
|
In the hotspot: With WL-330gEs "hotspot mode" under gateway mode, not only your laptop can get on the internet but your (or your friends) other WiFi devices (PDA, PSP, or WiFi phone) can access the Internet without extra cost.
|
In the office: Under WL-330gEs Ethernet adapter mode, you can convert all the Ethernet-capable devices (printer, desktop,..) into wireless.
|
Additionally, in Ethernet adapter mode, the WL-330gE can convert Ethernet-capable devices (desktop, network printer, game console, set top box) into wireless ones. It can even become a universal repeater to extend the wireless signal coverage.
Easy and User-Friendly Setup With an easy-to-use setup user interface, you will just require a few clicks to finish setting up for easy wireless Internet access. You only need to find the WL-330gE using "Device Discovery", then click on "Configure" and choose the mode you require, and the WL-330gE is ready to go. Featuring a driver-free Plug n Play function, Just plug your configured WL-330gE to your modem/router or the Ethernet-capable device, then your WL-330gE is ready to go! Wireless Internet access has never been easier.
|
|
|
|
|
Ethernet Port
|
LAN, 1 x RJ45 for 10/100 BaseT Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
|
|
Wireless Port
|
Transmit Power: 11b 19+-1.5 dBm, 11g 17+-1.5 dBm at nominal temperature. Receiver Sensitivity: -95+-1dBm@1Mbps, -85+-1dBm@11Mbps, -73+-1dBm@54Mbps Antenna Gain in 1.25dBi 2 x internal IFA antenna Range: Indoor 130ft (40m), semi-open 330ft (100m), outdoor (LOS, Line-Of-Sight) 1500ft (457m) Range and throughput may vary by different environment
|
|
Power
|
AC input: 100V~240V(50~60HZ); DC output: 5V with max. 1A current
|
|
Buttons
|
Reset Button: Push for 5 seconds to restore factory setting
|
|
Size
|
86 mm L* 62 mm W* 17 mm H
|
|
Weight
|
62g (2.187oz, not including power adaptor and cables)
|
|
Wireless
|
802.11g/802.11b Compliant Operation Channels: Ch1~11 for N. America, Ch1~14 Japan, Ch1~13 Europe (ETSI) Wi-Fi Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x WMM: WMM (Wi-Fi Multimedia) support MAC Access Control RADIUS Setting: Required in Radius with 802.1x, WPA, WPA2 mode. SSID Isolation: Support SSID hiding. Wireless Separation: Prevent wireless clients from communicating with each other. Guest Account: Provide a second SSID for wireless access in Gateway mode. Infrastructure Mode: - AP Only - WDS - Hybrid - Client - URE AfterBurner BroadRange
|
|
Network Architecture Types
|
Port Trigger: Open certain TCP or UDP ports to communicate with the computers connected to WL330gE. Virtual Server: Provide services, like WWW, FTP by a server in local network accessible for outside users. Virtual DMZ: Expose one computer to Internet, so that all the inbounds packets will be redirected to the exposed computer. ALG:FTP,SIP,VPN Passthrough-IPSec(1), PPTP/L2TP(4)
|
|
Firewall
|
NAT and SPI (Stateful Packet Inspection) Firewall Filtering: Single Port and Port Range & URL based
|
|
Routing
|
Static Route
|
|
Management
|
Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, Bigpond Service Support UPnP IGD DHCP Server: - supports up to 253 IP addresses - changeable DHCP lease time, IP pool, domain name DNS Proxy NTP Client DDNS: DynDNS, ZoneEdit, TZO Web-based administration:
- Managed from LAN and Internet - Password Setting System Event Log Firmware Upgrade: Web Interface, Bootloader Save/Restore Configuration File
|
|
Utilities
|
Device Discovery, support XP, 2000, Vista Firmware Restoration, support XP, 2000, Vista
|
|
Standards
|
IEEE802.11g, IEEE802.11b, IEEE802.11d, IEEE802.3, IEEE802.3u, IEEE802.1X, WPA, WMM, IPv4, IPv6
|
|
Certification Compliant
|
Wi-Fi, WPA, WMM, UPnP IGD
|
|
|
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. * PCB color and bundled software versions are subject to change without notice. * Brand and product names mentioned are trademarks of their respective companies.
|
|
