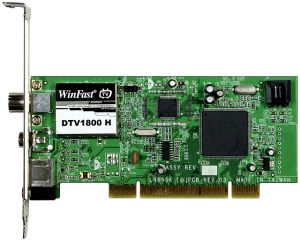

IMG 1 of 1
1 image(s) are available
for this product
Note: physical product may
vary from images displayed.
No Longer Available

Part Number:
77460
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
L-DTV1800H
LDTV1800H
Shipping Weight:
1.5 KG (Includes product packaging)
The Windows Vista support list



Watch Analog or High Quality Digital TV, Listen to FM radio or DVB-T radio and Record videos on your PC!


Feature
Enjoy digital terrestrial TV and digital radio * with HDTV/AC3 support in full screen or a scalable window for your high quality entertainment
Fully-functional Remote Control with user -friendly interface : With use of a single Power up/off button users can now switch on/ off PC at ease.
Supports EPG*2 (Electronic Programs Guide) for easily gather daily or weekly TV program information
Industrial fastest - 23*2 sec full-channel scan
Picture-In-Picture (PIP), Picture-On-Picture (POP), Picture-And-Picture(PAP) :
2 channel programs processing at same time and master video can be alternative. The slave video can be displayed with any size and anywhere
Time-Shifting:
you can pause, rewind live television and instant replays. Take your breaks during a TV show or movie and never have to miss a scene again.
DirectBurn:
let you easy to make your own high quality DVD/VCD directly
  DVD Burner compatibility list
  CD-R/RW Compatibility List
Capture format profile:
Support friendly setting for MPEG-1/2/4*3, WMV/VCD/DVD video and MP3/WMA audio encoding format from analog capturing, digital TV recording in MPEG 2 format
NTSC/PAL analog reception from Composite and S-video
Exclusive M.V.P mode (Multiple-Video-Processing):
Enable 2 video cards; 4 channel programs processing simultaneously)
Powerful schedule:
You can schedule your digital TV recordings on a daily, weekly or once only according info from EPG. You can select Stand by/Hibernate (S3/S4) mode for scheduling power saving.
All-in-one control panel:
Friendly graphics user interface & free to change favorite control panel skin, not only support digital TV and digital radio programs online, also captured and recorded files playback in playlist
Support playlist for video/audio playback, several files can be played seamlessly as one file. It can play with a Cool Command remote control and hot-key with keyboard
Make pre-scheduled recordings of digital TV broadcasting programs, to achieve the features of Video & Audio On Demand
Multiple channel preview with "Channel Surfing in a Snap" Bridging video to PC from VCR, camcorder, LD/VCD/DVD player
Software Feature
Remote Support TV/DVD
MPEG Format 1/2/4
Direct-Burn V
PIP/POP/PAP V
Time-Shifting V
S-Video/CVBS V
Channel Scanning 23 sec
EPG V
HDTV and AC-3 V
Stereo V
TV Rec. Schedule V
Power up Scheduling S3/S4
Skin Changeable V
WinFast DTV1800 H is compatible with Microsoft Window XP Media Center Edition 2005
  * Not DAB
*2 Depending on the different country, location and local services provider.
*3 Required third party software

Hybrid TV solutions
  DTV1800 H DTV2000 H
Bus Type PCI 2.3 PCI 2.3
Tuner type Silicon Can
RF input connector 1 2
Input Source
TV DVB-T/Analog TV(Universal) DVB-T/Analog TV(PAL)
FM V V
Composite V V
S-Video V V
DirectBurn V V
AC-3 V V
HDTV V V
MVP(Multiple Video Processing). V V
PIP, POP, PAP V V
Time-Shifting V V
EPG(Electronic Program Guide) V V
Application skin style 3 3
Messenger V V
Remote control V V
Capture Format
Program stream V V
Transport stream V V
Bundle Software
WinFast PVR2 V V
Ulead VideoStudio 9.0   V
Ulead DVDMovieFactory 4.0   V
Ulead Cool3D 3.0   V
Driver support WindowsXP Windows XP
Language support 8 8
Chipset Conexant CX2388X + Intel CE6353
Tuner Xceive Tuner
Hardware Interface 32-bit PCI 2.3 bus mastering Plug-n-Play compliant
Graphics drivers must include DirectX 8.1 software Video Standards
TV Tuner Receiving Frequency range from 48.25 to 863.25 MHz(PAL/SEACM/NTSC)
FM radio band coverage from 87.50 MHz to 108.00 MHz
Connectors TV RF in connector for analog or digital TV signal
FM in connector
1 9-pin MiniDin for CVBS and S-Video input
1 phone jack for remote sensor
1 4-pin audio output connector
Package Contents DTV1800 H PCI Card x1
High sensitivity remote control (with batteries & sensor cable) x1
FM antenna cable x1
1 9-pin MiniDin cable
User's manual x1
Driver and utility CD x1
Minimum System Requirements Pentium 4 or AMD Athlon 1.8GHz or higher required, P4 2.4GHz recommended
256MB of system memory (512MB recommended)
Windows XP SP2
100MB free hard disk space for installation, additional space required for video capture and Time-shifting
VGA card/chipset with full support for DirectX 9.0c
AC 97 compatible sound card/chipset for audio playback
Available PCI slot
Digital TV antenna
CD-ROM drive ( for software installation)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (Leadtek) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
