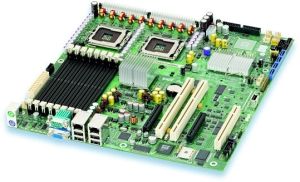

Intel S5000VSASASR Server Motherboard
  • 2xLGA771, iS5000V, 1333FSB, 8xDDR2-667 FB ECC, SATA-II, SAS, RAID, 2xGigLAN, VGA

IMG 1 of 1
No Longer Available
Part Number:
77730
(?) Brand:
Intel Web Site
Manuf No:
S5000VSASASR
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
S5000VSASASR
Multi-Core Intel Xeon Processor 5000 Sequence

A value server board for small and medium-sized businesses

Technical Specifications
Supported Chassis Intel Entry Server Chassis SC5299DP
Intel Entry Server Chassis SC5299BRP
Number of Processors Supported Two
Independent PCI Buses Four
Total PCI Slots Five
Integrated SAS 4-port SAS Via Integrated Controller on Motherboard supporting RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5
Integrated SATA Enhanced SATA provides two ports and RAID 0, 1, 10
Integrated SCSI None
Integrated ATA One channel supporting up to 2 IDE devices
Integrated LAN Two Intel 82563EB Gigabit Ethernet
Integrated Graphics ATI* ES1000 with 16MB SDRAM memory
USB Connections Two front and four back
Supported Operating System Microsoft* Windows* Server 2003 Enterprise Edition, Microsoft Windows 2000 Advanced Server, Red Hat* Linux* Enterprise 4.0, SuSE* Linux Enterprise Server 9.0
Dimension 12" X 13" (305mm X 330mm)
Integrated RAID Support Intel Embedded Server RAID Technology II provides RAID
0, 1, 10 with optional AXXRAKSW5 for RAID 5
Warranty Three-year limited
