Thermalright HR-11 VGA Cooler - Passive

IMG 1 of 1
No Longer Available
Part Number:
77844
(?) Brand:
Thermalright
Manuf No:
HR-11
HR11
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HR11, HR-11
VGA Backside Cooler HR-11

Origin

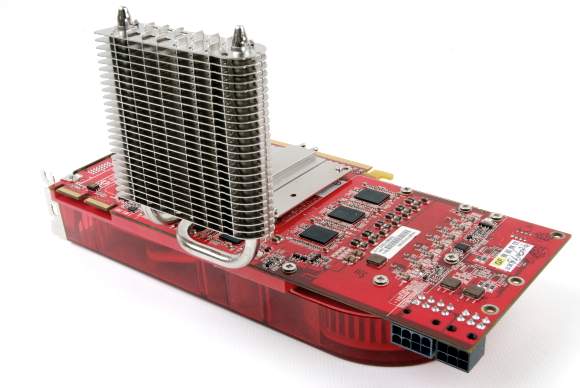

HR-11 backside cooler supports various types of VGA from the newest ATI HD2900 series to the nVidia's 8800 series video card. The HR-11 has dual heatpipes and 80mm of fins with proprietary thru holes so it doesn't matter if you've got HR-03 or stock cooler, you can install a set of HR-11 to further help cool you VGA. Installation is a cinch in that you get to choose and adjust to best fit your configuration and avoid any interference problem. With HR-11 passive cooling, you can take your video card performance up another notch! Of course, if your heart desires you can install an 80mm fan for that maximum performance!

So are you still stuck on stock cooling? Still getting your ears buzzed by the fan noise? Still hanging on the edge with temperature read of 80-90 Celsius degree? Aren't you tired of being worried? Get a HR-03 and HR-11. You'll be glad you did.

Features

 Cools GPU additionally from the back of VGA. Compatible with stock cooling, HR-03 series, and V2

Passively cooled heatsink design for no-noise operation Fan

 Proprietary through holes on fins for effiecient ventilation

Soldered fins to copper base (nickel plated) to make effective contact

 Light weight and easy installation


Technical Spec

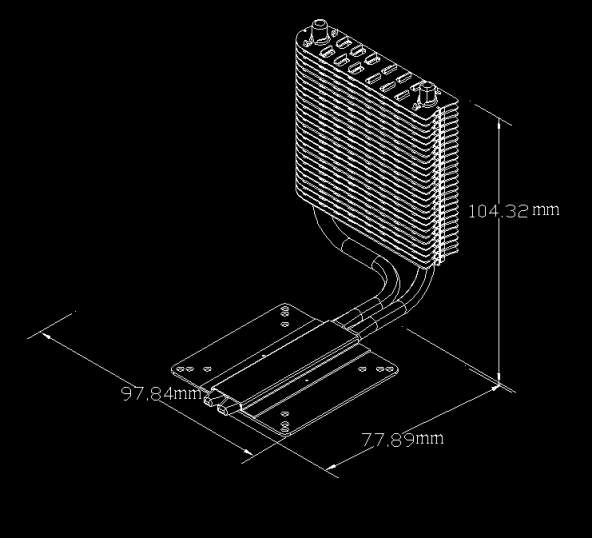

Dimension: L124.5 x W98 x H104 (mm)

Weight: 150g (heatsink only)

Graphics Card Compatibilities
6600 Series
6800 Series
7600 Series
7800 Series
7900 Series
8600 Series
8800 Series
More detail		 X1600 Series
X1800 Series
X1900 Series
HD2600 Series
HD2900 Series
More detail

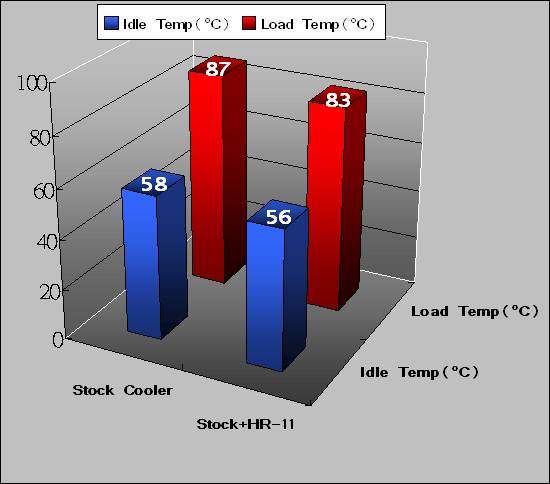

Performance Test


System Used

Processor: Intel E6600 1.2V
Processor Cooling: SI-128 SE (120mm ADDA 1600RPM)
Motherboard: Nvidia 680i
RAM: Teamgroup DDR2 800 1GB*2
Hard Drive: Seagate 80GB
Graphics Card: 8800GTX + Stock Cooler + HR-11
Software:3DMark06 Loop

HR-11 FAQ
If I have two video cards for either SLI or Crossfire mode, would I be able to install two HR-11?

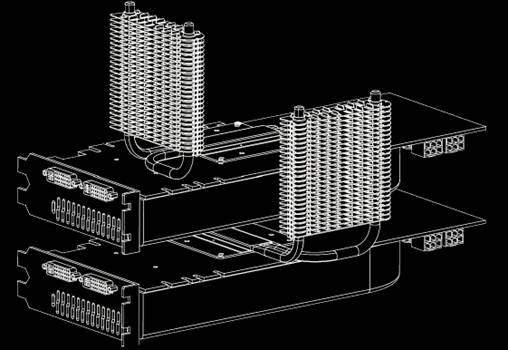

Yes, you can install two HR-11 in two different orientations for installation. For the first PCI-e slot install the HR-11 as depicted in illustration 1. For the second HR-11, install it as depicted in illustration 2.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
