ASUS P5E3 Deluxe Motherboard
LGA775, X38, 1333FSB, 4x DDR3-1333, 3x PCI-Ex16 v2.0, 6x SATA-II, 2x eSATA, RAID, 2x GigLAN, 8Chl, Firewire, ATX
Cart
Quantity:
Add ASUS P5E3 Deluxe Motherboard
LGA775, X38, 1333FSB, 4x DDR3-1333, 3x PCI-Ex16 v2.0, 6x SATA-II, 2x eSATA, RAID, 2x GigLAN, 8Chl, Firewire, ATX to your wishlist
Click here to write a review on ASUS P5E3 Deluxe Motherboard
LGA775, X38, 1333FSB, 4x DDR3-1333, 3x PCI-Ex16 v2.0, 6x SATA-II, 2x eSATA, RAID, 2x GigLAN, 8Chl, Firewire, ATX

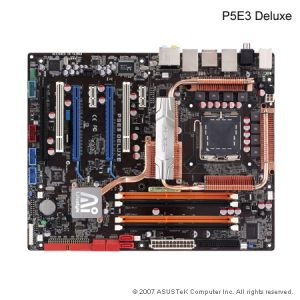

Large image is available
Product May Vary From Image

Our Price:
$380.70
RRP:$479.00
You Save:$98.30

Techbuy Part No:78008
Usually Ships: Order In (Call) Details
Brand:ASUS Web Site
Manuf No:P5E3-DELUXE
 P5E3DELUXE
Shipping Weight:2 KG How Much?
Date Added:14/11/2007
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

P5E3 Deluxe
Powerful Computing with Saving the Earth in Mind!
- Intel X38 chipset
- Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 Processors
- ASUS EPU (Energy Processing Unit)
- ASUS 3rd Generation 8-phase Power Design
- ASUS Q-Shield


CPU, Chipset and Graphics features
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1600 / 1333 / 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.

Intel X38 Chipset
The Intel X38 Express Chipset is the latest chipset designed to support 8GB of dual-channel DDR3 1333/1066/800 architecture, 1333/1066/800 FSB (Front Side Bus), Dual PCI Express 2.0 x16 graphics and multi-core CPUs. With the specially included Intel Fast Memory Access technology, available memory bandwidth usage is optimized and memory access latency is reduced - allowing faster memory speeds.

PCIe 2.0
Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

AMD CrossFire Technology
AMDs CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within AMDs Catalyst Control Center to rule your CrossFire system.
Memory Features
Dual-Channel DDR3 1800(O.C.)/1333
The motherboard supports DDR3 memory that features data transfer rates of 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 17 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution.

ASUS Quiet Thermal Solution
ASUS EPU
Enables the Most Energy Efficient Motherboard in the World
The ASUS EPU utilizes innovative technology to digitally monitor and tune the CPU power supply with improved VR responses in heavy or light loadings. It automatically provides power for higher performance or improve efficiency by 7% when the PC is running low intensity applications. Working together with AI Gear 3, this can help you attain the best possible power efficiency and energy savings up to 58.6% to help save the environment.
ASUS 3rd Generation 8 Phase Power Design
Longer Life, & Higher Efficiency!
With power efficiency so important to operating temperatures, ASUS 3rd generation 8-phase VRM design leads the industry with its 95% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss & lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy efficiency.
Up to 20C(36F) Cooler - Stack Cool 2
Effective Fanless Heat Dissipation at 0dB
Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20C.

Pure Copper Heat Pipe
Lowers Temperatures by up to 10C
The Pure Copper Heat Pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.

Q-Fan 2
Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
Uses 100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
ASUS EZ DIY
AI Direct Link
Lightning Fast Data Linkage between Your PC & Laptop AI Direct Link can easily and efficiently transfer large amounts of data via the network cable - saving up to 70% of the total time taken. With AI Direct Link, it becomes easy to backup or share large data files like movies or other media content.
Q-Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
AI Slot Detector
Assists in Proper Installation for PCIe/PCI Devices
When PCIe/PCI devices are installed, users can simply plug in the power cable and find out if these devices are successfully installed. Without even switching on the PC or entering the operating system, ASUSs innovative on-board LEDs provide an efficient way to identify the correct way to set up the PC.
Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
ASUS overclocking tools
Precision Tweaker 2
Super-fine Adjustments to Help Create a Brand New O.C Record!
Allows the user to adjust the NB Voltage, FSB termination Voltage, CPU PLL Voltage and the DRAM Voltage in 0.02v steps to finetune voltages to achieve the most precise setting for the ultimate customized overclocking configuration.

AI NOS
Boost performance when you need it the most!
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS reacts much faster to satisfy your unending need for speeds .
ASUS Crystal Sound
AI Audio 2
Unique Home Theather Technology on Board
AI Audio 2 creates a virtual center channel that expands the overall sound field without introducing a picket fencing effect. Preserving the dialogue or solo performances with downmixing from multichannels will allow you to experience true-to-life high quality audio.
Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
Other Innovative Features
MyLogo3
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
Interface Features
SATA on the Go
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

Dual RAID
The Intel ICH9R chipsets incorporate Six Serial ATA connectors with high performance RAID functions in RAID 0, 1, 10 and 5. The JMicron controller provides another two Serial ATA connectors for RAID 0, 1, and JBOD functions. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards.


Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.

IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.


High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.


RoHS & Operation System

GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
LGA775 socket for Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 Processors
Compatible with Intel 05B/05A/06 processors
Supports Intel next generation 45nm Multi-Core CPU
Chipset
Intel X38 / ICH9R with Intel Fast Memory Access Technology
Front Side Bus
1600/1333 / 1066 / 800 MHz
Memory
4 x DIMM, max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
3 x PCIe x16 (blue @PCIe2.0 x16 mode, black @PCIe x4 or x1 mode) supports CrossFire Technology
2 x PCIe x1
2 x PCI
Storage
Southbridge
- 6 x SATA 3.0 Gb/s ports
- Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10
JMicron JMB363(JMB368) PATA and SATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- 2 x External SATA 3.0 Gb/s port (SATA On-the-Go)
- Supports SATA RAID 0,1,JBOD
LAN
Dual Gigabit LAN controllers
Marvell88E8056 PCIe Gigabit LAN controller featuring AI NET2
RealtekRTL8110SC PCI Gigabit LAN controller featuring AI NET2
Audio
ADI AD1988B 8-channel High Definition Audio CODEC
- Support Jack-Sensing, Enumeration, Multi-streaming
- Coaxial / Optical S/PDIF out ports at back I/O
- AI Audio 2
- ASUS Noise Filter
IEEE 1394
Agere L-FW3227 1394a controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
USB
12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS AI Lifestyle Features
ASUS Power Saving Solution
- ASUS EPU (Energy Processing Unit)
- ASUS 3rd Generation 8-phase Power Design
- ASUS AI Nap
ASUS AI Lifestyle Features:
- ASUS AI Direct Link
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Q-Fan 2
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Special Features
ASUS MyLogo 3
Multi-language BIOS
Overclocking Features
ASUS AI Booster utility
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 64-step DRAM voltage control
- vChipset (N.B.): 33-step DRAM voltage control
- vFSB Termination: 15-step reference voltage control
- vCPU PLL: 64-step CPU PLL voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 800MHz up to 3200MHz
- PCI Express frequency tuning from 100MHz up to150MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x S/PDIF Out (Coaxial + Optical)
2 x External SATA
1 x IEEE1394a
2 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
4 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
2 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories
UltraDMA 133/100/66 cable
FDD cable
6 x Serial ATA cables
1 x 2-port Serial ATA power cable
ASUS Q-Shield
User's manual
3 in 1 Q-connector
1 x 2-port USB2.0 / 1-port IEEE1394 module
2 x Optional Fan for Water-Cooling or Passive-Cooling only
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Image-Editing Suite
Form Factor
ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
