Enjoy Quiet Cooling Solutions with Fan-less Design |
|
   LGA775 Intel Core2 and Quad-core Processor Ready

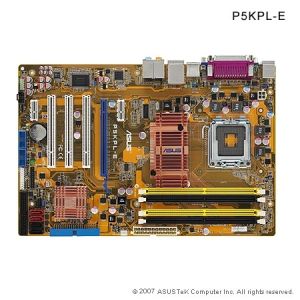

This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333/1066/800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world. |
| |
| |
|
 Dual channel DDR2 800 (O.C. DDR2-1066)
DDR2 800 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.
*Support max. 2 DIMMs when over-clock to DDR2-1066
|
|
 PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x8 bus performs much better in applications such as 3D gaming.
|
| |
 Uses 100% All High-quality Conductive Polymer Capacitors
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
|
| ASUS Quiet Thermal Solution |
|
 Save CPU Power - AI Gear 2
Power Savings for Environment-Friendly Computing
AI Gear2 allows users to choose profiles to adjust CPU frequency and vCore voltage to minimize system noise and power consumption. For example, users can change the mode in real-time in the operating system to max power saving mode and can save CPU power when using word processing applications.
|
 AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
| ASUS Overclocking Tools |
 O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
Precision Tweaker
 Achieve system maximum performance!
It offers ways to raise system performance inch-by-inch and step-by-step to achieve maximum performance! This is about getting the most out of your machine and taking pride in your customized computer.
(1)vDIMM - Take control of how much power is going into the memory modules. ASUS gives you 8-step voltage control to the DIMM
(2)vCore - Find out "exactly" how much power your CPU needs. Fine-tune it with 0.0625 volts at a time!
(3)SFS (Stepless Frequency Selection) allows
- FSB tuning from 133MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
|
| ASUS EZ DIY |
  ASUS Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
 ASUS CrashFree BIOS3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 EZ Flash2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
| Interface Features |
Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification.
|
High Definition Audio
Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality audio output, jack-detect feature automatically.
|
S/PDIF-out technology
This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) onboard connector. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
|
Max. 8 USB 2.0 ports supports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data.
|
| Other ASUS Unique features |
 ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. |
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
|
| RoHS |
|
 GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.
|
