Motherboards -> Server Boards -> ASUS

ASUS P5BV-C/4L
LGA775, Intel 3200, 1333FSB, 4x DDR2-800, PCI-Ex16, 8x SATA-II, RAID, 4x GigLAN, VGA, ATX
Cart
Quantity:
Add ASUS P5BV-C/4L
LGA775, Intel 3200, 1333FSB, 4x DDR2-800, PCI-Ex16, 8x SATA-II, RAID, 4x GigLAN, VGA, ATX to your wishlist
Click here to write a review on ASUS P5BV-C/4L
LGA775, Intel 3200, 1333FSB, 4x DDR2-800, PCI-Ex16, 8x SATA-II, RAID, 4x GigLAN, VGA, ATX

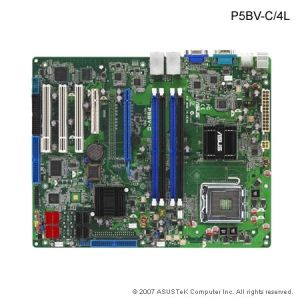

Large image is available
Product May Vary From Image

Our Price:
$385.85
RRP:$419.00
You Save:$33.15

Techbuy Part No:78147
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:P5BV-C/4L
 P5BVC/4L
Shipping Weight:3 KG How Much?
Date Added:19/11/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

ECO Quad-LAN 1P Server Board!

The ASUS server board P5BV-C/4L supports the Multi-Core Intel Xeon processor at FSB1333 MHz based on the Intel 3200 server chipset, providing high performance and great reliability at reasonable cost for entry-level server users. P5BV-C/4L is also featured with up to 8GB DDR2 800/667 memory capacity and PCI-E expansion slots support.



All New 1P Platform with Latest Technology
Ready for Next-Generation 45nm Intel Xeon Processor
- Offering higher frequency and great energy efficiency
- The Best Performance/Watt 1P Platform

FSB 1333MHz Support
- Provides 25% throughput improvement compared to FSB 1066MHz

DDR2 800 memory support

Provides mature & well-validated drivers support, especially for Quad-LAN & SATA RAID (of ICH) drivers
- Reserves 2 IDE connectors for legacy storage devices

Quad-LAN Teaming
Enhances networking transfer rate around 4 times faster than the Single-LAN Platform
Load-balance & Fault-tolerance function provides reliable network connections
Multiple Network Segments: the four ports can be used in individual sub-nets to enhance network security and communication efficiency

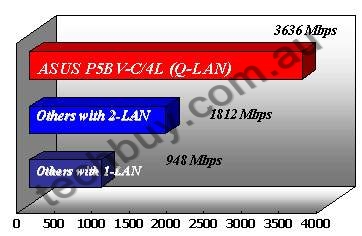

IxChariot Benchmark based on 100% Sequential Write/Send
(64K Data Transfer Buffer Size)


Double Quad-SATA RAID
 Built-in 2 sets of Quad-SATA offer doubled storage capacity
Double Quad-SATA RAID support RAID 0, 1 & 10 for better data protection
RAID driver support for Linux OS

KEY SPECIFICATIONS

Processor Support

Intel CoreTM 2 Duo series
Dual-Core Intel Xeon 3000 series
Quad-Core Intel Xeon 3200 series
Next-Generation 45nm Intel Xeon Processor

FSB

FSB 1333/1066/800MHz

Core Logic

Intel 3200 MCH + Intel ICH7R

Memory

4-DIMM support up to 8GB DDR2 800/667 Unbuffered, ECC / Non ECC

SATA

Total 8-port SATA
Intel ICH7R: 4-port SATA
Marvell 6145 SATA Controller: 4-port SATA

IDE

2 * IDE UltraATA 33/66/100

RAID Support

4-port SATA (ICH7R)
RAID 0,1,10 & 5 for Windows (Intel Matrix Storage)
RAID 0,1 & 10 for Linux (LSI MegaRAID Driver)

4-port SATA (Marvell 6145)
RAID 0,1 & 10 for both Windows & Linux

NIC

4 * Marvell 8056 PCI-E GbE LAN

Onboard Gfx

XGI Z9s (32MB DDR2)

Expansion Slots

1* PCI-E x16 (x8 link)
1* PCI-E x8 (x1 link)
3* PCI 32bit/33MHz

Form Factor

ATX, 12" * 9.6"


The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.



Specification
Processor / System Bus
1 * Socket LGA775
Intel CoreTM 2 Duo series
Dual-Core Intel Xeon 3000 series
Quad-Core Intel Xeon 3200 series
Next-Generation 45nm Intel Xeon Processor
Dual Core/Quad Core
FSB 800/1066/1333
Core Logic
Intel 3200 Memory Contoller Hub (MCH)
Intel ICH7R
Form Factor
ATX, 12" * 9.6"
ASUS Features
Smart Fan I
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 8GB
Memory Type: DDR2 667 / 800 Unbuffered , ECC / Non ECC
Memory Size: 256MB, 512 MB, 1 GB, 2GB
Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots: 5
Slot Location 1: 1 * PCI 32bit/33 MHz
Slot Location 2: 1 * PCI 32bit/33 MHz
Slot Location 3: 1 * PCI 32bit/33 MHz
Slot Location 4: 1 * PCI-E x8 (x1 link)
Slot Location 6: 1 * PCI-E x16 (x8 link)
Storage
IDE Controller
Intel ICH7R:
1 * IDE, support UltraATA 33 / 66 / 100
Marvell 6145:
1 * IDE, support UltraATA 33 / 66 / 100

SATA Controller
Intel ICH7R:
4 SATA2 300MB/s ports -
Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5 for Windows only
LSI MegaRAID driver supports software RAID 0, 1& 10 for Windows and Linux

Marvell 6145:
4 SATA2 300MB/s ports -
Support software RAID 0, 1& 10 for Windows and Linux
Networking
LAN: 4 * Marvell 8056 PCI-E GbE LAN
Graphic
VGA: XGI Z9s DDR2 32MB
Onboard I/O Connectors
Floppy Connector: 1
PSU Connector: 24-pin ATX power connector + 4-pin ATX 12V power connector
USB Connectors: 1 (support 2 USB port)
Fan Header: 5 * 4pin
SMBus: 1
Chassis Intruder: 1
Serial Port Header: 1
Rear I/O Connectors
External Serial Port: 1
External USB Port: 2
VGA Port: 1
RJ-45: 4
PS/2 KB/Mouse: 1
Management Solution
Software: ASWM2.0
Monitoring
CPU Temperature
FAN RPM
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories
Standard Gift Box Pack (3pcs per Carton)
Manual, SCD, I/O shield, SATA Cable, SATA Power Cable, IDE/Floppy Cable(3 in 1)

Standard Bulk Pack (10pcs per Carton)
Manual, SCD, I/O shield


Product Warranty


3-year RTB
