ASUS Triton 70 - Intel LGA775, AMD S939/940/AM2, 2300rpm, 36.5CFM


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:78339
Usually Ships: No Longer Available Details
Brand:ASUS Web Site
Manuf No:TRITON-70
 TRITON70
Shipping Weight:1 KG How Much?
Date Added:27/11/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

Triton 70
Best Choice for Slim PC
- The second fan allowance design satisfies the gamers requirements
- 20% space saving for installation
- Thoughtful push pin and clip for easy installation without removing the MB


Best Choice for Slim PC

Advantages and Benefits

Mutiple Application with PWM Function

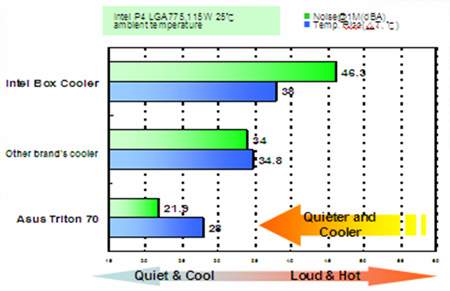

Triton 70 supports the Intel LGA775 and AMD K8 939/940/AM2 platforms. PWM function automatically modulates fan speed according to CPU temperature and delivers a quiet cooling at a mere 22dBA.

Ideal Cooling with DIY Enjoyment
Triton 70 provides the possibilities for users to shift 8 & 9cm Fans, also expandable for a second optional fan. Performance and silence at your control.

*Connect 2nd optional fan by 3 to 4 pin connector with Power Supply cable will disable the PWM function.
**In order to achieve better performance, it is highly recommended that the 2nd fan speed be higher than the 1st one.

Smart Design on Installation
Innovation in assembly with push pins and clip makes fastening easier than ever for both Intel and AMD users. No need to remove motherboard.

User friendly

Push Pin design for Intel LGA775 Platform

Smart Clip design for AMD K8 & AM2 Platform

Space-saving
The Triton 70, light weight with small dimension, can save 20% space for users to choose for slim PC.





Specification
CPU Support
Intel Core2 Extreme (Conroe)/Core2 Quad
Intel Core2 Duo/ Pentium Dual-core
Intel Pentium 4 HT/Celeron D CPU
AMD Athlon 64 X2 (AM2/939) / FX (939)
AMD Athlon 64/ Sempron
CPU Socket

Dimensions (L x W x H)

Net Weight (g)
350g (Heatsink only)
Heatsink Material
Dimension (mm)
90 x 78 x 125
Material
Cu. Base + Al Fins + 3 Heat Pipes
Fan
Dimension (mm)
92 x 92 x 25
Bearing Type
Vapo(Long Life Sleeve)
Speed
2,300 rpm 10% with PWM Control
Max. Airflow
36.5 CFM
Max. Air Pressure
2.8 mm-H2O
Certification
CE, TUV, UL

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
