Motherboards
->
Server Boards
->
ASUS
ASUS KFSN4-DRE
2x S1207, nForce Professional 2200, 16x DDR2-667, 1x PCI-Ex16, 4x SATA-II, RAID, 2x GigLAN, VGA, SSI EEB
Cart
Quantity:
Add
ASUS KFSN4-DRE
2x S1207, nForce Professional 2200, 16x DDR2-667, 1x PCI-Ex16, 4x SATA-II, RAID, 2x GigLAN, VGA, SSI EEB
to your wishlist
Click here to write a review on
ASUS KFSN4-DRE
2x S1207, nForce Professional 2200, 16x DDR2-667, 1x PCI-Ex16, 4x SATA-II, RAID, 2x GigLAN, VGA, SSI EEB

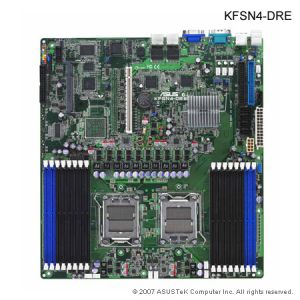

Large image is available
Product May Vary From Image
Our Price:
$532.00
RRP:
$625.00
You Save:
$93.00
Techbuy Part No:
78380
Usually Ships:
1-3 Days
Details
Brand:
ASUS
Web Site
Manuf No:
KFSN4-DRE
KFSN4DRE
Shipping Weight:
3 KG
How Much?
Date Added:
28/11/2007
Rating:
Not Rated
Currency:
AUD
Convert
Product Description
KFSN4-DRE
Precision-node for Building Computing Farm
ASUS KFSN4-DRE is a 2-way server board which supports the next-generation Quad-Core AMD Opteron processors. Featured with the latest Dual Dynamic Power Management and "Dual Link" technology, KFSN4-DRE is optimized for leading-edge native quad-core performance, targeting at HPC market and enterprise-class applications.
Precision-node for Building Computing Farm
ASUS KFSN4-DRE is a 2-way server board which supports the next-generation Quad-Core AMD Opteron processors. Featured with the latest "Dual Dynamic Power Management" and "Dual Link" technology, KFSN4-DRE is optimized for leading-edge native quad-core performance, targeting at HPC market and enterprise-class applications.
Next-Generation Quad-Core AMD Opteron Processor Ready
Supports 1~2 Dual-Core or Quad-Core AMD Opteron processors to offer up to 8-Core Computing Power.
Powered by Latest Technology "Split Power*" and "Dual Link"
Provides the best performance-per-watt for AMD processor-based platform via "Dual Dynamic Power Management" and "Dual Link" technology implemented.
Offers additional 14% performance gain & 66% CPU power saving for next-generation Quad-Core AMD Opteron processor.
16-DIMM Expandability
16-DIMM with 64GB memory scalability helps achieve the maximum AMD Quad-Core Opteron computing power, optimal memory resource increase and efficiency for virtual workloads of Virtualization applications.
Optimal Thermal Placement for 1U Rack
Front "Parallel-Balance" design with dual processors and 16-DIMM memory helps increase 20~30% thermal efficiency.
Two PCI-E expansion cards can be supported in 1U rack.
Key Spec of KFSN4-DRE
Model Name
KFSN4-DRE
Processor
Support
2 * Quad-Core AMD Opteron 2x00 series processors
Core Logic
NVIDIA nForce Professional 2200
Memory
16 * DDR2 533/667 Reg. ECC, maximum up to 64GB
Storage
Built-in 4-port SATA
RAID Support
4 * SATA Ports, RAID 0, 1, 10, 5 (Windows)
NIC
2 * Broadcom BCM 5721 PCI-E GbE LAN
Onboard Gfx
XGI Z9s VGA Controller / 32MB DDR2 VRAM
Expansion
1 * PCI-E x16 (x16 Link) or 2 * PCI-E x16 (x8 Link) with riser card
Board Size
SSI EEB 3.61 Footprint Compliant, 12 x 13
Product SKU Comparisons
SKU
Model Name
KFSN4-DRE
KFSN4-DRE
/SAS
4-port SATA
(Support Software RAID 0, 1, 10, 5 for Windows)
V
V
4-port SAS Controller
(Support Integrated RAID 0,1 & 1E)
V
4 * 7-pin SAS Connector
V
1 * PCI-E x16 or 2 * PCI-E x8 Support
V
Specification
Processor / System Bus
2 * socket 1207
Quad-Core AMD Opteron 2x00 series ready
Dual-Core AMD Opteron 2000 series processor "
Quad Core / Dual Core
HyperTransport Technology 1.0, 1GHz
512KB L2 cache/Per core, 2MB L3
Core Logic
nVIDIA nForce Professional 2200
Form Factor
SSI EEB 3.61 Footprint Compliant, 12" x 13"
Chassis Support
N/A
ASUS Features
Smart Fan:
Smart Fan II
Rack Ready (Rack and Pedestal dual use):
Rack Optimized (Dedicated for Rack):
ASWM2.0:
Memory
Total Slots:
16 (2-channel per CPU)
Capacity:
Maximum up to 64GB
Memory Type:
DDR2 533/667 Reg. ECC
Memory Size:
512 MB, 1 GB, 2GB, 4GB
Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots:
1
Slot Loacation 6:
1 * PCI-E x16 (x16 Link) or 2 * PCI-E x16 (x8 Link) with riser card
Additional Slot 1:
1* SO-DIMM socket for optional ASMB3-SOL
Storage
IDE Controller
nVIDIA nForce 2200 Professional:
Dual Channel Bus Master IDE support UltraATA 100 / 133
SATA Controller
nVIDIA nForce 2200 Professional:
4 * SATA2 Ports, RAID 0, 1, 10, 5, JBOD (Windows)
Networking
LAN:
2 * Broadcom BCM5721 PCI-E GbE LAN
Graphic
VGA:
XGI Z9s VGA Controller / 32MB DDR2 VRAM
Onboard I/O Connectors
Floppy Connector:
1
PSU Connector:
24-pin ATX power connector + 8-pin ATX 12V power connector
Management Connector:
1* SO-DIMM socket for optional ASMB3-SOL
USB Connectors:
1 (support 2 USB ports)
Fan Header:
10 * 4pin
SMBus: 2
Chassis Intruder: 1
Front LAN LED:
2
Serial Port Header:
1
Rear I/O Connectors
External Serial Port:
1
External USB Port:
2
VGA Port:
1
RJ-45:
2
PS/2 KB/Mouse:
1
Management Solution
Software:
ASWM2.0
Out of Band Remote Management:
Optional (ASMB3-SOL)
Monitoring
CPU Temperature:
FAN RPM:
Safety
N/A
EMI
US (FCC, CFR47 Part 15, Class B):
Europe (CE, EN55022 & EN55024):
Anti-virus Software
N/A
OS Support
N/A
Environment
Operation temperature:
10 ~ 35
Non operation temperature:
-40 ~ 70
Non operation humidity:
20% ~ 90% ( Non condensing)
Optional Items
N/A
Product SKUs
N/A
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
Product Warranty
3-year Manufact.
