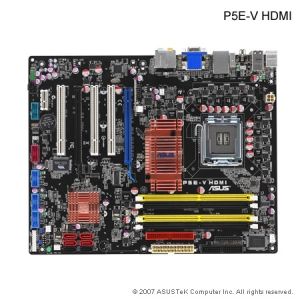

ASUS P5E-V HDMI Motherboard
LGA775, G35, 1333FSB, 4x DDR2-800, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, Firewire, VGA, HDMI, ATX
Cart
Quantity:
Add ASUS P5E-V HDMI Motherboard
LGA775, G35, 1333FSB, 4x DDR2-800, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, Firewire, VGA, HDMI, ATX to your wishlist
Click here to write a review on ASUS P5E-V HDMI Motherboard
LGA775, G35, 1333FSB, 4x DDR2-800, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, Firewire, VGA, HDMI, ATX

Large image is available
Product May Vary From Image

Our Price:
$220.55
RRP:$259.00
You Save:$38.45

Techbuy Part No:78528
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:P5E-V-HDMI
 P5EVHDMI
Shipping Weight:2 KG How Much?
Date Added:4/12/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

P5E-V HDMI
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
- Support Intel next generation 45nm Multi-core CPU
- Intel LGA775 Platform
- Intel G35 chipset
- Onboard HDMI Connector
- Dual-channel DDR2 800/667/533 MHz
- Quad Display
- 12xUSB 2.0
- All High-quality Conductive Polymer Capacitors

Enjoy Full HD 1080p Multimedia Home-Theater Entertainment

LGA775 Intel Quad-core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
Intel G35 Chipset
The Intel G35 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator X3500. It supports the latest 1333MHz FSB multi-core processors and 384MB video shared memory; and delivers breakthrough advances in 2D and 3D graphics and video capabilities. Featuring the Intel Clear Video Technology, Enhanced Post-processing and Windows Vista compatibility, this chipset meets the changing display requirements of visually rich applications and provides smooth playback of High-Definition Videos, superb 3D effects and performance, crisp imaging, and accurate color control.
DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
ATI CrossFire Technology
ATIs CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFire system.

HDMI/DVI interface
High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.

With bundled HDMI to DVI conversion adapter, this motherboard can also support DVI output. DVI (Digital Visual Interface) provides high quality visuals for digital display devices like LCD monitors. The interface of this motherboard supports dual VGA outputs for both HDMI/DVI and RGB.

*Due to Intel VGA driver for Windows XP does not include screen scraper defense, so HD-DVD and Blu-Ray can only run under Windows Vista OS
ASUS Splendid
ASUS exclusive Splendid Video Intelligence Technology carefully evaluates every pixel in every frame and dynamically adjusts them according to conditions most favorable to the human eye. With intelligent optimization for Contrast, Saturation, Hue and Brightness, a dedicated chipset engine with lower CPU utilization built into ASUS MB delivers vivid colors and detail image comparable to the very best visual experience.

*Splendid only support D-sub VGA output with a resolution up to 1600x1200

Quad Display
Allows you to utilize 4 monitors for increased multi-tasking work efficiency by not wasting time alt-tabbing between programs. You can easily work on 4 different applications in full screen mode and instantly quad desktop space. For example, you can browse your picture library thumbnails on one monitor, use the second to view them in full screen, edit them on a third, and browse the Internet / read emails on the fourth.

*The quad-display feature is supported by Windows XP 32-bit OS only.
**This motherboard comes with quad-VGA outputs for four different monitors simultaneously. You can connect two monitors to the onboard VGA and HDMI ports, and another two to your graphics card outputs. Install the VGA card to the PCIeX16_2(black) slot.
Precision Tweaker 2
Allows the user to adjust the NB Voltage, FSB termination Voltage, CPU PLL Voltage and the DRAM Voltage in 0.02v steps to finetune voltages to achieve the most precise setting for the ultimate customized overclocking configuration.
Q-Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
Q-Fan 2
Adjusts both CPU fan and chassis fan speeds according to system loading
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
Serial ATA 3Gb/s RAID
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard Intel ICH9R allows RAID 0, RAID 1, RAID 0+1, RAID 5 six SATA connectors.

AI Direct Link
AI Direct Link can easily and efficiently transfer large amounts of data via the network cable - saving up to 70% of the total time taken. With AI Direct Link, it becomes easy to backup or share large data files like movies or other media content.
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
Save CPU Power - AI Gear 2
Power Savings for Environment-Friendly Computing
AI Gear2 allows users to choose profiles to adjust CPU frequency and vCore voltage to minimize system noise and power consumption. For example, users can change the mode in real-time in the operating system to max power saving mode and can save power for the CPU when using word processing applications.
High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

AI Slot Detector
Assists in Proper Installation for PCIe/PCI Devices
When PCIe/PCI devices are installed, users can simply plug in the power cable and find out if these devices are successfully installed. Without even switching on the PC or entering the operating system, ASUSs innovative on-board LEDs provide an efficient way to identify the correct way to set up the PC.
AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
AI NOS
Boost performance when you need it the most!
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS reacts much faster to satisfy your unending need for speeds.

C.P.R. (CPU Parameter Recall)
Protect your BIOS data when overclocking
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
MyLogo3
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows digital audio transfer without converting to analog format and keeps the best signal quality.

Uses 100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
ASUS two-slot thermal design (ASUS exclusive)
ASUS exclusive two-slot thermal design
ASUS two-slot thermal design provides better air-flow and lower VGA cards temperature than other brands one-slot design, which also ensures better system stability and longer component life cycle.
GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.



Specification
CPU
Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium Extreme/Pentium D/Pentium 4/ Processors
Compatible with Intel 05B/05A/06 processors
Support Intel next generation 45nm CPU
Chipset
Intel G35
ICH9R
Intel Fast Memory Access Technology
Front Side Bus
1333/1066/800/ MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533/ Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts)
Expansion Slots
2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
1 x PCIe x1
3 x PCI
VGA
Integrated Intel Graphics Media Accelerator X3500
Quad VGA output support
Supports RGB with max. resolution 2048 x 1536@75Hz
Supports HDMI with max. resolution 1920 x 1200@60Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Maximum shared memory of 384 MB
Supports Microsoft DirectX 10, OpenGL 2.0, Pixel Shader 4.0
With bundled HDMI-DVI conversion adapter this model can support DVI output
*The DirectX 10 driver will be provided by the chipset vendor later.
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 01510
JMicron JMB368 PATA controller
1 xUltraDMA 133/100/66/ for up to 2 PATA devices
LAN
Atheros L1 PCIe Gigabit/ LAN controller
Audio
Realtek ALC 883 8 -Channel High-Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming
IEEE 1394
VIA VT6308P controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB
12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS AI Lifestyle Features
ASUS AI Lifestyle
- ASUS Splendid ASUS Quiet Thermal Solution
- ASUS AI Gear 2
- ASUS AI Nap
- ASUS Q-Fan 2

ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Special Features
ASUS MyLogo 3
Overclocking Features
Intelligent overclocking tools
- ASUS AI Booster Utility
Precision Tweaker 2
- vDIMM: 33 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0125V increment
- vChipset (N.B.): 24-step DRAM voltage control
- vFSB Termination: 16-step DRAM voltage control
- vCPU PLL:16-step Chipset voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 533MHz up to 1333MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x HDMI port
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
1 x COM connector
1 x LPT Port connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
Accessories
User's manual
1 x UltraDMA 133/100/66 cables
1 x Floppy disk drive cables
I/O Shield
3 in 1 Q-connector
4 x Serial ATA cables
1 x 2-port Serial ATA power cable
1 x HDMI to DVI conversion adapter
1 x 2-port USB2.0 / 1-port IEEE1394 module
Support Disc
Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.



Product Warranty


1 Year Return to Base
