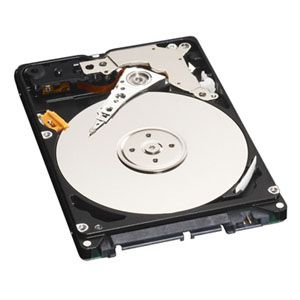

IMG 1 of 1
No Longer Available

Part Number:
79130
(?) Brand:
Manuf No:
WD3200BEVT
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
WD3200BEVT

  WD Scorpio




2.5-inch SATA Hard Drives
320 GB, 3 Gb/s, 8 MB Cache, 5400 RPM

High-performance
Low power consumption
Ultra-cool and quiet

WD Scorpio 2.5-inch drives offer high-performance, low power consumption and cool operation, making them ideal for notebooks and other portable devices.

WD Scorpio delivers best-in-class performance with low power consumption and cool operation. In addition, you'll get one of the quietest 2.5-inch drives on the market with real-time data protection technology to help keep your data safe.

Key Features
Massive capacity - Whether they are in an external drive or a notebook computer, WDs 320 GB 2.5-inch drives offer the most available capacity for space-hungry operating systems like Windows Vista, plus plenty of room left over for photos, music, and video.

Fast and efficient - With 5400 RPM spin speed and 12 ms access time, even the most demanding customer will appreciate the performance achieved by WD Scorpio drives.

Quiet - In a notebook drive, silence is golden. WDs exclusive WhisperDrive combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.

Reliable and Rugged - WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non- operational shock tolerance.

Tested for Compatibility - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.

Ideal For

Portable digital devices of all kinds, including notebook computers, external storage, digital media players, GPS and navigation systems, and other automotive and industrial applications.


Performance Specifications
Rotational Speed 5,400 RPM (nominal)
Buffer Size 8 MB
Average Latency 4.20 ms (nominal)
Seek Times
Read Seek Time 12.0 ms
Track-To-Track Seek Time 2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Buffer To Disk 850 Mbits/s (Max)
Physical Specifications
Formatted Capacity 320,072 MB
Capacity 320 GB
Interface SATA 3 Gb/s
Physical Dimensions
English
Height 0.374 0.008 inch
Length 3.94 0.010 inch
Width 2.75 0.010 inch
Weight 0.26 Pounds
Metric
Height 9.5 0.20 mm
Length 100.2 0.25 mm
Width 69.85 0.25 mm
Weight 0.117 kg
Environmental Specifications
Acoustics
Idle Mode 24 dBA (average)
Seek Mode 0 26 dBA (average)
Temperature (English)
Operating 41 F to 140 F
Non-operating -40 F to 149 F
Temperature (Metric)
Operating 5 C to 60 C
Non-operating -40 C to 65 C
Humidity
Operating 8-90% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating
Linear 10-500 Hz, 1.0G (0 to peak)
Random 10-500 Hz (0.309 g / Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write 500 mA
Idle 400 mA
Standby 50 mA
Sleep 20 mA
Power Dissipation
Read/Write 2.50 Watts
Idle 2.00 Watts
Standby 0.25 Watts
Sleep 0.10 Watts

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
