Thermalright HR-03 GT Heatsink VGA Cooler for 8800GT

No Longer Available

Part Number:

79289

(?) Brand:

Thermalright

Manuf No:

HR-03-GT
HR03GT

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

HR03GT, HR-03 GT, HR-03-GT

Origin

The HR-03 series started in the beginning of 2007 and was beloved by many computer hardware enthusiasts. It doesnt matter if its the HR-03 PLUS or the HR-03/R600, they were all able to bring out the best in your high end video card with unprecedented overclocking results by providing maximum cooling protection.

New video cards are constantly on the horizon. The most noticeable ones are the Nvidia G92 and the ATI RV670. Thermalright, of course, is right there again to welcome the new change of guard for extreme cooling and low noise. The new solution is HR-03 GT! HR-03 GT using 6 heatpipes and a double sided heatsink base, can work with any 92mm low noise fan. So if you are not prepared for the onslaught of heat and noise stock coolers generate, get the new HR-03 GT!

Features

A maximum of 6 heatpipes for maximum amount of heat transfer to work with any of 92mm or smaller fans for best configuration to suit your needs

Proprietary two-heatsinks-soldered-to-form-as-one design to maximize cooling capacity

6 heatpipes soldered immensely close to heatsink fins to increase heat transfer efficiency

Two ways of mounting the cooler on video card for best space and configuration management in ATX and BTX form factor cases

Light weight and easy no-tool installation

SLI compatible for serious gaming enthusiasts

Cosmetically contoured design for that vanity look

Technical Spec

Dimension: L133 x W156 x H38 mm (heatsink only)

Weight: 410g (heatsink only) Recommended Fan (92x25mm)

Graphics Cards Compatibilities

6800 Series
X1800 Series

7800 Series X1900 Series

8600GTS Series HD 3850 Series

8800GT 512MB HD 3870 Series

8800GTS 512MB (G92) Compatible List

Compatible List

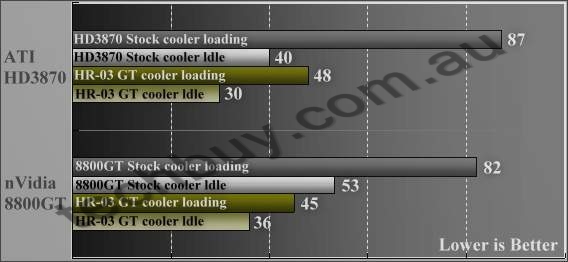

Performance Test

System Used
Processor: Intel E6600 (Duo Core) 1.2V
Processor Cooling: SI-128 SE
Motherboard: Nvidia680i
Graphics Card : Gigabyte 8800GT
VGA Cooler: Nvidia 8800GT HD3870 / Stock Cooler & HR-03 GT
RAM: TeamGroup DDR800 1GB*2Hard Drive: Seagate 80GB

HR-03 GT FAQ

We have a Support Question about compatibility of NEW 8800GT and Thermalright HR-03 PLUS. Is the cooler compatible? What about HR-03 Rev.
A?

HR-03 PLUS mounting mechanism is not compatibly aligned with the mounting holes on the 8800GT so installation is not possible. As for HR-03 Rev. A, technically it can be installed on the 8800 GT but because the PWN IC on the back of the card is not covered by the HR-03 Rev. A, plus the fact that the heat generated by the new 8800 GT far surpasses the 7000-series, we would strongly recommend our new HR-03 GT.

more FAQ?

Awards & Accolades Find out why we are the best.

OCIA

HardOCP

No additional files, specification sheets, guides or documentation found for product.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product

Click on a thumbnail to view it below
