Asrock Wolfdale1333-D667 Motherboard
LGA775, 945GC A2, 1333FSB, 2x DDR2-667, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX

Cart
Quantity:
Add Asrock Wolfdale1333-D667 Motherboard
LGA775, 945GC A2, 1333FSB, 2x DDR2-667, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX to your wishlist
Click here to write a review on Asrock Wolfdale1333-D667 Motherboard
LGA775, 945GC A2, 1333FSB, 2x DDR2-667, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX

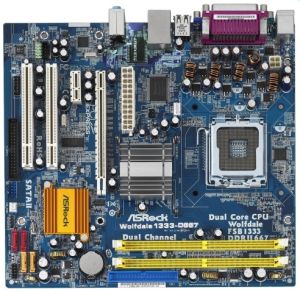

Large image is available

Product May Vary From Image

Our Price:
$61.70
RRP:$69.00
You Save:$7.30

Techbuy Part No:80080
Usually Ships: Same Day Details
Brand:Asrock Web Site
Manuf No:Wolfdale1333-D667 R2
 Wolfdale1333D667 R2
Shipping Weight:2 KG How Much?
Date Added:30/1/2008
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

  Wolfdale1333-D667 R2.0 Product Overview


    Certified for Windows Vista Designed for Microsoft Windows XP / XP 64-bit

Wolfdale1333-D667 R2.0
  1. LGA 775 for Intel  Dual Core Core 2 Extreme / Core 2 Duo / Pentium  Dual Core / Celeron , supporting Dual Core Wolfdale processors
  2. Intel  945GC A2 Chipset
  • Compatible with all FSB1333/1066/800/533MHz CPUs except Quad Core
  • Supports Dual Channel DDR2 667/533 x 2 DIMM slots with max. capacity up to 4GB
  • Intel  Graphics Media Accelerator 950, DirectX 9.0 and Max. shared memory 224MB
  • 1 x PCI Express x16 slot
  • Hybrid Booster - Safe Overclocking Technology
  • Untied Overclocking : During overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
  • 4 x Serial ATAII 3.0 Gb/s connectors, 10/100 Ethernet LAN
  • Windows  Vista Premium 2007 Logo Ready
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
(Intel) Conroe Ready (Intel) Wolfdale (FSB) 1333MHz (Intel) GMA 950 (Vista) Premium 2007 (HD) SATAII (RAM) 667
Product Specifications
General
CPU - LGA 775 for Intel  Dual Core Core 2 Extreme / Core 2 Duo / Pentium  Dual Core / Celeron , supporting Dual Core Wolfdale processors
- Compatible with all FSB1333*/1066/800/533MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.
Chipset - Northbridge: Intel  945GC A2
- Southbridge: Intel  ICH7
Memory - Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533 non-ECC, un-buffered memory
- Max. capacity: 4GB*

*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows  XP, Windows  XP 64-bit, Windows  Vista and Windows  Vista 64-bit.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics - Intel  Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
Audio - 5.1 CH Windows  Vista Premium Level HD Audio (Realtek ALC662 Audio Codec)
LAN - Realtek PCIE x1 LAN 8101E
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x WiFi header
Rear Panel I/O ASRock 6CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
OS - Microsoft  Windows  2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant
Certifications - FCC, CE, WHQL

Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.



Product Warranty


2-year Manufacturer
