Deluxe series features, mainstream price! |

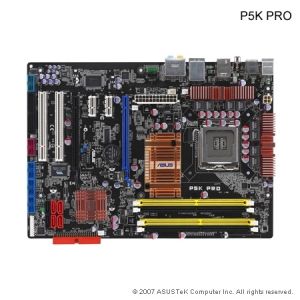

The P5K PRO is an Intel P35 chipset-based motherboard that supports FSB 1333 and DDR2 1066 and combines better overclocking performance with great energy efficiency. Featuring the cutting-edge ASUS EPU and ASUS 3rd Generation 8-Phase Power Design, the P5K PRO triumphs over other competitive MB solution. With improved VRM efficiency, ASUS EPU digitally monitors and fine-tunes the CPU power supply in heavy or light loadings, while ASUS 3rd Generation 8-Phase Power Design ensures better power efficiency and thermal performance over competitors 6-phase design with higher temperatures.
|
    LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
|
  Intel P35 Chipset
The Intel P35 Express Chipset is the latest chipset designed to support the next generation 45nm CPU; and up to 8GB of dual-channel DDR3 1066/800 MHz and DDR2 800/667 MHz memory architecture. It also supports 1333/1066/800 FSB (Front Side Bus), PCI Express x16 graphics and multi-core CPUs.
|
ASUS Super Memspeed Technology
  Surpass the Limit with Easy Overclocking Choices
Surpass the Limit with Easy Overclocking Choices ASUSs Super Memspeed Technology keeps you one step ahead by breaking through current FSB and DRAM ratio proportions with full support of native DDR2 1066. With support for future memory trends, your purchase investment is protected; and it is the best stage for overclocking options when compared to other technologies that run at reduced frequencies of DDR2 800 or require overclocking to reach DDR2 1066. It is also the only technology that allows overclocking to be more convenient and smart - providing better compatibility and the ability to overclock up to 1370MHz - an enhancement of up to 71% - granting great performance for 3D graphics and other memory demanding applications.
|
ASUS EPU
 Enables the Most Energy Efficient Motherboard in the World
The ASUS EPU utilizes innovative technology to digitally monitor and finetune the CPU power supply with improved VR responses in heavy or light loadings.
Working together with AI Gear 3, it automatically provides power for higher performance or improves efficiency by 50% when the PC is running low intensity applications - helping you attain the best possible power efficiency and energy savings of up to 80.23% to help save the environment.
|
 ASUS 3rd Generation 8-Phase Power Design
Longer Life, & Higher Efficiency!
With power efficiency so important to operating temperatures, ASUS 3rd generation 8-phase VRM design leads the industry with its 95% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss & lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy efficiency.
|
 Precision Tweaker 2
Super-fine Adjustments to Help Create a Brand New O.C Record!
Allows the user to adjust the NB Voltage, FSB termination Voltage, CPU PLL Voltage and the DRAM Voltage in 0.02v steps to finetune voltages to achieve the most precise setting for the ultimate customized overclocking configuration.
|
 ATI CrossFire TechnologyATIs CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFire system. |
 Q-Fan 2
Adjusts both CPU fan and chassis fan speeds according to system loading
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
|
 IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
High Definition Audio
 Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
|
 AI Nap
Minimize noise and power consumption when temporarily away
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
 Q-Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
|
 Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
 O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
 CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
 Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
|
 MyLogo3
The ASUS MyLogo3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos.
|
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows digital audio transfer without converting to analog format and keeps the best signal quality.
|
 Uses 100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
|
ASUS two-slot thermal design (ASUS exclusive)
ASUS exclusive two-slot thermal design
ASUS two-slot thermal design provides better air-flow and lower VGA cards temperature than other brans one-slot design, which also ensures better system stability and longer component life cycle. |
|
 GreenASUS The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment. |
