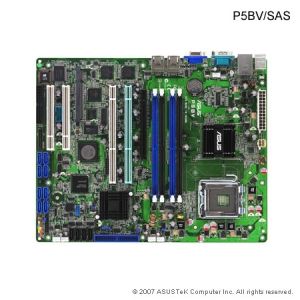

ASUS P5BV/SAS
  • LGA775, Intel 3200, 4x DDR2-800, PCI-Ex16 (x8), 4x SATA-II, 8x SAS, RAID, 2x GigLAN, VGA, ATX

IMG 1 of 1
No Longer Available
Part Number:
80556
(?) Brand:
ASUS Web Site
Manuf No:
P5BV/SAS
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
P5BV/SAS
P5BV/SAS
45nm Ready Server Board with High Storage Capacity & Expandability
ASUS new platform sever board the P5BV/SAS supports the 45nm Multi-Core Intel Xeon processor at FSB1333MHz based on the Intel 3200 MCH, features up to 8GB DDR2 800/667 memory capacity and various expansion choices.


45nm Ready Server Board with High Storage Capacity &
  Expandability

ASUS new platform sever board the P5BV/SAS supports the 45nm Multi-Core Intel Xeon processor at FSB1333MHz based on the Intel 3200 MCH, features up to 8GB DDR2 800/667 memory capacity and various expansion choices.

All New 1P Platform with Latest Technology
Single Quad-Core/Dual-Core Intel Xeon 3200/3000 Series Processors support
Upgradeable to next-generation 45nm Intel Xeon processors
FSB 1333MHz support
Up to 8GB DDR2 800/667 Unbuffered, ECC /Non ECC memory capacity

Fast and Reliable Network Connections
Two professional Gigabit LAN provides higher transferring bandwidth
High communication efficiency - even if an error occurs to one port, the networking connection will not be affected in any way

High Storage Capacity and Data Protection
Expandable with 4 SATA2 HDDs
4-port SATA support RAID 0, 1, 10, 5 (for Windows)
8-port SAS from LSI1068 support RAID 0, 1, 1E (ZCR)
Optional LSI ZCR (Zero-Channel-RAID) PCI-X card is upgradeable to support hardware RAID 0, 1, 10, 5, 50

Flexible Expansion Choices
Support one PCI-Ex16 (x8 link) slot for higher bandwidth
Protect users investment by supporting two PCI 32 bit/33Mhz and two PCI-X slots for legacy device

KEY SPECIFICATIONS

Processor Support

1 * LGA775 socket
Quad-Core Intel Xeon 3200 Series
Dual-Core Intel Xeon 3000 Series
Next-Generation 45nm Intel Xeon Processors support

FSB

FSB 1333/1066/800 MHz

Core Logic

Intel 3200 MCH
Intel ICH7R
NEC UPD 720404 (I/O Bridge)

Memory

4-DIMM support up to 8GB DDR2 800/667 Unbuffered , ECC/ Non ECC

Storage

1 * IDE UltraATA 33/66/100

Intel ICH7R: 4-port SATA2

LSI 1068: 8 SAS ports

RAID Support

4 SATA2 300MB/s ports:
Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5)
Optional LSI ZCR (Zero-Channel-RAID) PCI-X card is upgradeable to support hardware RAID 0, 1, 10, 5, 50

LSI1068: 8 SAS ports support RAID 0, 1, 1E (ZCR)

NIC

2 * Broadcom BCM5721 PCI-E GbE LAN

Onboard Gfx

XGI Z9s (32MB DDR2)

Expansion Slot

1 * PCI-E x16 (x8 link)
2 * PCI 32bit/33MHz
2 * PCI-X

Form Factor

ATX, 12" * 9.6"




Specification
Processor / System Bus
1 * Socket LGA775
Intel CoreTM 2 Duo series
Dual-Core Intel Xeon 3000 series
Quad-Core Intel Xeon 3200 series
Next-Generation 45nm Intel Xeon Processor
Dual Core/Quad Core
FSB 1333/1066/800 MHz
Core Logic
Intel 3200 Memory Contoller Hub (MCH)
Intel ICH7R
NEC UPD 720404 (I/O Bridge)
Form Factor
ATX, 12" * 9.6"
ASUS Features
Smart Fan I
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 8GB
Memory Type: DDR2 667 / 800 Unbuffered , ECC / Non ECC
Memory Size: 256MB, 512 MB, 1 GB, 2GB
Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots: 5
Slot Location 1: 1 * PCI 32bit/33 MHz
Slot Location 2: 1 * PCI 32bit/33 MHz
Slot Location 3: -
Slot Location 4: -
Slot Location 5: 1 * PCI-X link
Slot Location 6: 1 * PCI-X link
Slot Location 7: 1 * PCI-E x16 (x8 link)
Additional Slot: 1* SO-DIMM socket for optional ASMB3-SOL
Storage
IDE Controller
Intel ICH7R:
1 * IDE support UltraATA 33 / 66 / 100

SATA Controller
Intel ICH7R:
4 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5)
Optional LSI ZCR (Zero-Channel-RAID) PCI-X card is upgradeable to support hardware RAID 0, 1, 10, 5, 50

SAS Controller
LSI 1068 (RAID 0, 1, 1E, ZCR) (8 SAS ports)
Networking
LAN: 2 * Broadcom BCM5721 PCI-E GbE LAN
Graphic
VGA: XGI Z9s DDR2/ 32MB
Onboard I/O Connectors
Floppy Connector: 1
PSU Connector: 24-pin ATX power connector + 4-pin ATX 12V power connector
Management Connector: 1 * SO-DIMM socket for optional ASMB3-SOL
USB Connectors: 1 (support 4 USB ports)
Fan Header: 5 * 4pin
SMBus: 1
Chassis Intruder: 1
Rear I/O Connectors
External Serial Port: 1
External USB Port: 4
VGA Port: 1
RJ-45: 2
PS/2 KB/Mouse: 1
Management Solution
Software: ASWM2.0
Out of Band Remote Management: Optional (ASMB3-SOL)
Monitoring
CPU Temperature
FAN RPM
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
