All stock codes associated to this product
916SWABLACK, 916SWA-BLACK, MTAO916SWAB

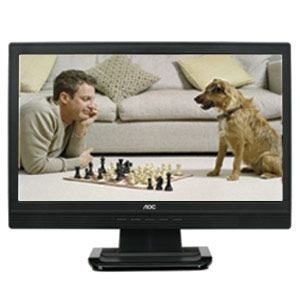

LCD MONITOR 916Swa
OVERVIEW:
The AOC 916Swa offers premium picture quality for graphics-intensive applications. It comes with 2000:1 (DCR) contrast ratio, which delivers exceptional image clarity, and 160-degree viewing angle to provide increased visibility from side viewpoints. Its response time is 5ms, a key feature that prevents fast moving objects from becoming blurred.
The AOC 916Swa offer consumers brilliant large screen performance at highly competitive price.
PRODUCT DETAILS
- Analogue input
- 1440x900 maximum resolution
- Special features:
- DCB-Dynamic
- Color Boost
- Contrast Ratio 2000:1 (DCR)
- High Brightness 300cd/m (typ)
- Typ. Response Time (tr+tf): 5ms
- Built-in Speakers
Product specifications are subject to change without notice.
TECHNICAL SPECIFICATIONS
Cabinet colour Silver / Black
Pixel / Dot Pitch 0.285mmx0.285mm
Display Area 410.4 mmx256.5 mm
Viewable Image Size 481mm
Brightness(typ) 300 cd/m
Response Time (typ) 5ms
Viewing Angle H / V CR=10: 170/160
Compatibility VESA, VGA, SVGA, XGA, SXGA, WXGA+, Mac®Equipped With VGA Port
Input Signal Analogue: 0.7Vp-p(standard), 75 OHM, Positive
Input Connector Signal: D-Sub 15-pin, Power: 3-pin Plug
HDCP Compatible No
Power Supply Power Input: Universal 110~240VAC, 50/60HzPower
Power Consumption 37 W (Max)
Plug & Play DDC 1/2B/CI
User Control AUTO Config, Volume/down, Volume/up, Menu, Power
OSD Function
Brightness, Contrast, EcoMode, Gamma(1,2,3), DCR, Focus, Clock, H/VPosition, Color Temperature(Cool, Warm, Normal, sRGB, RGBYCM),
ColorBoost(Full Enhance, Nature Skin, Green Field, SkyBlue, Auto Detect, Demo), Picture Boost(FrameSize, Brightness, Contrast, Hue, Saturation, H/VPosition, Bright Frame on/off), OSD Setup(H/Vposition, Timeout, Language), AUTO Config, Reset, Information
OSD Languages English, French, Spanish, Portuguese, Simple Chinese, Traditional Chinese, Korea, Russian
Speakers 1W x 2
Safety & Regulations cUL, FCC, CE, CCC, TCO03, TUV-GS, ISO 13406-2, Windows Vista
Wall-Mount* VESA 100mm
Special Features DCB, DCR(2000:1), Eco mode, Narrow edge
Dimensions (Monitor) 362.9(W)x438.5(H)x210(D)mm
Dimensions (Carton) 509(W)x442(H)x150(D)mm
Weight (Net/Gross) 4.4Kg / 5.8Kg
