2 CCTV Cameras & Recording Solution
The DVR4-Business Surveillance Kit is an affordable do-it-yourself (DIY) safety and security solution. You won't believe the versatility of this pack. Cover every angle, indoors, outdoors, day and night with a twin pack of Swann OutdoorCams - one of the world's best selling security cameras!
Once mounted, connect the cameras to the any television or security monitor and record what the cameras see. With motion detection, a built-in 160GB hard drive, password protection and touch button navigation it has all the features you need to safeguard your business or home 24/7. Everything you need in one box!

|
|
| Product Info |
Features
- Fight back against theft, lost productivity & false insurance claims
- Deter shoplifters & vandals before they strike
- Set & forget with high capacity 160GB hard drive
- Motion detection only records when there is activity & never runs out
- USB connection for easy back up of recorded files to your PC
|
|
|
| Specifications |
| DVR4-Business |
|
Video Format:
|
NTSC / PAL |
|
Operation System:
|
Custom Embedded OS |
|
Camera Input Channel:
|
4 channel Composite BNC |
|
Video Output Channel:
|
1 channel Composite BNC |
|
Display Frame Rate:
|
NTSC: 120 fps, PAL: 100 fps |
|
Recording Frame Rate:
|
NTSC: Max 30 fps (Quad), PAL: Max 25 fps (Quad) |
|
Recording Frame Rate (Each Mode):
|
NTSC: Each Channel = 30 fps Number of Source
PAL: Each Channel = 30 fps Number of Source |
|
Record Mode:
|
Continuous , Time Schedule, Motion Triggered |
|
Resolution:
|
Display: NTSC: 720 x 480, PAL: 720 x 576
Record: NTSC: 320 x 112, 640 x 224
PAL: 320 x 136, 640 x 272 |
|
Video Compression Format (Each Channel):
|
Modified Motion-JPEG (12-20K bytes/frame) |
|
HDD Support:
|
Up to 400G Byte |
|
Estimated Record Length:
|
160G Hard disk @ 7 fame per second @
Normal Quality = 332 Hours |
|
Search Methods:
|
Time, Date, Event |
|
Full Screen:
|
Yes |
|
MDimension (L x W x H):
|
10 x 5 x 3 / 257mm x 132mm x 80mm |
| OutdoorCam |
|
Camera Sensor:
|
1/3 / 8.5mm CMOS |
|
TV System:
|
PAL (AU, UK) or NTSC (USA) -
Country Dependant |
|
Effective Element:
|
PAL: 628 (H) x 582 (V)
NTSC: 510 (H) x 492 (V) |
|
Definition:
|
380 TV Lines |
|
Scanning Frequency:
|
PAL: 50HZ
NTSC: 60HZ |
|
Minimum Illumination:
|
3 Lux (Color) / 0 Lux (B&W) |
|
Signal Noise Ratio:
|
>+40dB |
|
Electronic Shutter:
|
1/60 ~ 1/15000 second |
|
Noise:
|
<0.03% Peak Value |
|
Power Supply:
|
8V ~ 12V DC |
|
Infra-red Range:
|
Up to 16ft / 5m to 8m |
|
View Angle:
|
40 |
|
IR Power Control:
|
CDS Light Sensor |
|
Power Consumption:
|
1.5 Watts |
|
Window:
|
2mm Heat-Resisting Glass |
|
Construction:
|
Aluminium |
|
Operation Temperature:
|
-4F - 140F / -20C - 60C |
|
|
| What's in Box? |
 Actual colour of contents may vary. Pictures used on packaging are for illustration purposes only. |

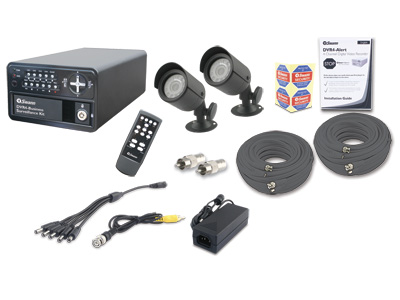

Contents
-DVR4-Business with Accessories
-160GB HDD fitted
-Remote Control (batteries included)
-OutdoorCams x 2
-60ft (18m) BNC Cables x 2
-BNC to RCA Adapters x 2
-BNC to RCA Cable
-Security Stickers x 4
-Manual & Swann Security DVD
|
| |
|
*Note: Product contents may change without notice.
|
|
|
|
