Nimble, meet quick.
The new, more powerful MacBook Pro.
The latest Intel processor, a bigger hard drive, plenty of memory and even more new features all fit inside a liberating 2.59 cm. The new MacBook Pro has the performance, power and connectivity of a desktop computer. Without the desk part.
Pure beauty. Pure power.
MacBook Pro is a full-featured notebook inside one inch of sturdy aluminium. Starting at just 2.45 kg, MacBook Pro is designed to keep up with you.
Multi-Touch trackpad.
The amazing Multi-Touch technology now comes to MacBook Pro in the all-new, Multi-Touch trackpad. Pinch, swipe or rotate to enlarge text, advance through photos or adjust an image.
It goes where you go.
MacBook Pro has advanced wireless capabilities built in. So you can be productive from across the globe or across the room.
Multi-Touch meets MacBook Pro.
Multi-Touch technology from iPhone, iPod touch and MacBook Air comes to MacBook Pro in an amazing new Multi-Touch trackpad. Now you can pinch, swipe or rotate to enlarge text, advance through photos or adjust an image.
Room for more.
MacBook Pro has a standard hard drive up to 250GB and up to 4GB of RAM. So there's more room for even bigger ideas.
Power duo.
The new Intel Core 2 Duo processors run at speeds up to 2.6GHz on a groundbreaking 45-nm process technology with up to 6MB L2 cache. And the powerful NVIDIA GeForce 8600M GT graphics processor now includes up to 512MB of video memory.

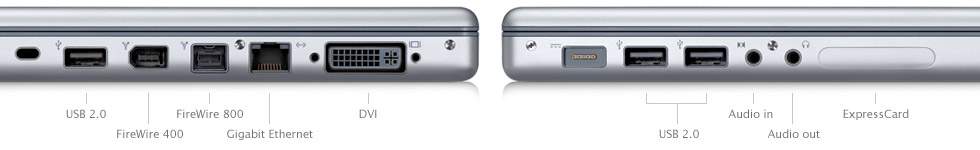

Ins and outs.
Connect storage, multimedia devices and high-speed peripherals to your MacBook Pro. Along the sides, youll find a FireWire 400 port, a FireWire 800 port, a DVI port, optical audio in and out ports and an ExpressCard slot. There are three USB 2.0 ports on the 17-inch MacBook Pro and two on the 15-inch models.

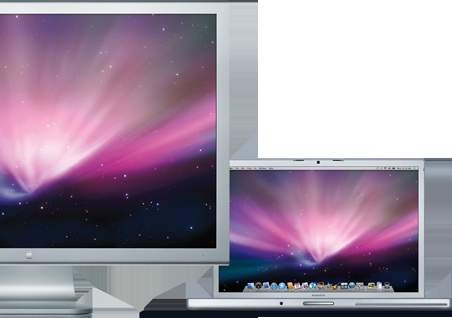

Supersized display.
Connect an Apple Cinema Display to expand your desktop and lose nothing in translation. Thats because the DVI connection gives you a pure digital signal from system to display. View more than 4 million pixels on a 30-inch Apple Cinema HD Display, powered by the NVIDIA GeForce 8600M GT graphics processor.
Even the power cord is a feature.
The MacBook Pro power adapter with MagSafe connector is a magnetic connection instead of a physical one. So, if you happen to trip over the power cord, you wont send MacBook Pro flying. The cord simply disconnects, without damage to either the cord or the notebook.
Sounds all around.
MacBook Pro sounds as good as it looks, with unprecedented attention to audio detail. For musicians on the go, MacBook Pro offers pristine sound through crisp, clear stereo speakers, a built-in microphone and optical digital audio on both input and output.
Built-in iSight.
Strategically placed in the center of the MacBook Pro display bezel is a small but powerful iSight camera. Wherever you go, you can video conference with iChat, make a movie with iMovie and experiment in Photo Booth.
Technical Specifications
Display
15-inch MacBook Pro
15.4-inch (diagonal) antiglare widescreen TFT LED backlit display with support for millions of colours; optional glossy widescreen display
Supported resolutions: 1440 by 900 (native), 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched
17-inch MacBook Pro
17-inch (diagonal) antiglare widescreen TFT display with support for millions of colours; optional glossy widescreen display
Supported resolutions: 1680 by 1050 (native), 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio stretched; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched
Optional 17-inch (diagonal) antiglare TFT widescreen LED backlit display with support for millions of colours; optional glossy widescreen display
Supported resolutions: 1920 by 1200 (native), 1680 by 1050, 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio stretched; 1600 by 1200, 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1600 by 1200, 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched
Graphics and video support
15-inch MacBook Pro
NVIDIA GeForce 8600M GT graphics processor with dual-link DVI support; 256MB of GDDR3 memory on 2.4GHz configuration; 512MB of GDDR3 memory on 2.5GHz and 2.6GHz configurations
17-inch MacBook Pro
NVIDIA GeForce 8600M GT graphics processor with dual-link DVI support and 512MB of GDDR3 memory
- Dual display and video mirroring: Simultaneously supports full native resolution on the built-in display and up to 2560 by 1600 pixels on an external display, both at millions of colours
- DVI output port
- VGA output using included DVI to VGA adapter
 Built-in iSight camera
Processor and memory
15-inch MacBook Pro
2.4GHz Intel Core 2 Duo processor with 3MB on-chip shared L2 cache running 1:1 with processor speed; or 2.5GHz or 2.6GHz Intel Core 2 Duo processor with 6MB L2 cache
17-inch MacBook Pro
2.5GHz or 2.6GHz Intel Core 2 Duo processor with 6MB on-chip shared L2 cache running 1:1 with processor speed
- 2GB (two 1GB SO-DIMMs) of PC2-5300 (667MHz) DDR2 memory; two SO-DIMM slots support up to 4GB
- 800MHz frontside bus
Storage
15-inch MacBook Pro
- 200GB or 250GB 5400-rpm Serial ATA hard drive; optional 200GB 7200-rpm drive3
- 8x slot-loading SuperDrive (DVDR DL/DVDRW/CD-RW)
Maximum write: 8x DVD-R, DVD+R; 4x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD-R; 10x CD-RW
Maximum read: 8x DVD-R, DVD+R, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD
17-inch MacBook Pro
- 250GB 5400-rpm Serial ATA hard drive; optional 200GB 7200-rpm drive3; optional 300GB 4200-rpm
- 8x slot-loading SuperDrive (DVDR DL/DVDRW/CD-RW)
Maximum write: 8x DVD-R, DVD+R, DVD+RW; 6x DVD-RW; 4x DVD-R DL (double layer), DVD+R DL (double layer); 24x CD-R; 16x CD-RW
Maximum read: 8x DVD-R, DVD+R, DVD+RW, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW; 24x CD
Battery and power4
15-inch MacBook Pro
60-watt-hour lithium-polymer battery
17-inch MacBook Pro
68-watt-hour lithium-polymer battery
- 85W MagSafe Power Adapter with cable management system
- MagSafe power adapter port
* Up to 5 hours when configured with optional 1920x1200 LED backlit display
Electrical and operating requirements
- Line voltage: 100V to 240V AC
- Frequency: 50Hz to 60Hz
- DC input: 18.5 Vdc, 4.6A maximum
- Operating temperature: 10 to 35 C (50 to 95 F)
- Storage temperature: -24 to 45 C (-13 to 113 F)
- Relative humidity: 0% to 90% noncondensing
- Maximum operating altitude: 3,000 m (10,000 feet)
- Maximum storage altitude: 4,500 m (15,000 feet)
- Maximum shipping altitude: 10,997 m (35,000 feet)
Installed software
- Mac OS X v10.5 Leopard (includes Time Machine, Quick Look, Spaces, Spotlight, Dashboard, Mail, iChat, Safari, Address Book, QuickTime, iCal, DVD Player, Photo Booth, Xcode Developer Tools)
- iLife 08 (includes iTunes, iPhoto, iMovie, iDVD, iWeb, GarageBand)
Configurations
| |
15.4-inch: 2.4GHz
(MB133X/A) |
15.4-inch: 2.5GHz
(MB134X/A) |
17-inch: 2.5GHz
(MB166X/A) |
| Display |
15.4-inch (diagonal), 1440 by 900 resolution, TFT widescreen |
17-inch (diagonal), 1680 by 1050 resolution, TFT widescreen |
| Processor |
2.4GHz Intel Core 2 Duo |
2.5GHz Intel Core 2 Duo |
| Memory |
2GB (two SO-DIMMs) 667MHz DDR2 memory (PC2-5300) |
| PCI Express graphics |
NVIDIA GeForce 8600M GT with 256MB of GDDR3 memory and dual-link DVI |
NVIDIA GeForce 8600M GT with 512MB of GDDR3 SDRAM and dual-link DVI |
| Hard disk drive3 |
200GB Serial ATA; 5400 rpm |
250GB Serial ATA; 5400 rpm |
| Slot-loading optical drive |
8x SuperDrive (DVDR DL/DVDRW/CD-RW) |
| Expansion |
One FireWire 400, one FireWire 800, two USB 2.0 ports and ExpressCard/34 slot |
One FireWire 400, one FireWire 800, three USB 2.0 ports and ExpressCard/34 slot |
| Video |
Built-in iSight camera, DVI, VGA (DVI to VGA adapter included) |
| Audio |
Combined optical digital input/audio line in, combined optical digital output/audio line out, stereo speakers, microphone |
| Ethernet |
Built-in 10/100/1000BASE-T (Gigabit) |
| Wireless2 |
Built-in AirPort Extreme (802.11n); built-in Bluetooth 2.1 + EDR |
| Modem |
Apple USB Modem (sold separately) |
| Input |
Full-size, illuminated keyboard with ambient light sensor; Multi-Touch trackpad |
| Weight1 |
2.45 kg |
3.08 kg |
| Footprint |
35.7 by 24.3 cms |
39.2 by 26.5 cm |
| Thickness |
2.59 cm |
| Video accessories |
DVI to VGA adapter (other adapters sold separately) |
| Hardware accessories |
85W MagSafe Power Adapter, AC wall plug, power cord, lithium-polymer battery |
|
