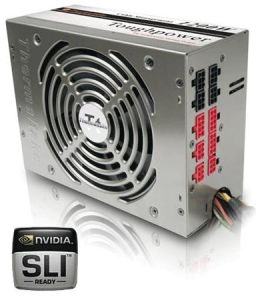

ThermalTake 1500W Toughpower - ATX 12V v2.3, EPS 12V 2.91, 140mm Fan, Modular Cables, SLI Ready
  • 8x SATA, 4x PCI-E 8-Pin, 4x PCI-E 6-Pin

IMG 1 of 1
No Longer Available
Part Number:
82051
(?) Brand:
ThermalTake Web Site
Manuf No:
W0171
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
W0171, W0171R

ATX
12V 2.3
EPS 12V
AMD / Intel
Quad Core Support
Quad
GPU
Ready
PCI Express
Connectors
X8
S-ATA
Connectors
X8
Intel ATX 12V 2.3 and EPS 2.91 compatible
Stable 1500W continuous output, peak power at 1600W (at 50 operating environment)
Four 8pin and four 6pin PCI-E connectors design supports multiple high-end graphic card setup
Support Dual core CPU, Quad core CPU, NVIDIA SLI and all Multi-Core GPU Technology
Four independent +12V rails provides superior performance

(Total Combined load of +12V is 120A)
Modularized Cable Management to eliminate clutter and improve airflow inside the case.
Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Quiet and reliable 14cm ball-bearing fan.
Protections: Over Current, Over Voltage, Under Voltage, Over Temperature,

Over Power, and Short-Circuit protection.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

Total Output Connector:
20+4pin Main Power
Connector x 1
4+4pin CPU Power
Connector x 1
8pin CPU Power
Connector x 1
4pin Peripheral
Connector X 8
Floppy
Connector X 2
5pin S-ATA
Connector X 8
8pin PCI-E
Connector X 4
6pin PCI-E
Connector X 4


Technology Features:
Quad +12V Rails and EPS Structure
Hi-Tech Black Coating
8 S-ATA Connectors
Silent 140mm Fan
Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%


Embedded Socket Design:



Model
W0171
Power
1500W
Dimension
200mm(L)x150mm(W)x86mm(H)
Switches
ATX Logic on-off additional power rocker switch
PFC
Active PFC (PF > 0.9)
Cooling System
140mm Fan, 2300RPM 10%
Noise
16 dBA at 1300 RPM
P. G. Signal
100-500 ms
Efficiency
up to 87%
Hold-up Time
16ms

INPUT
Input Voltage
230 Vac
Input Frequency Range
47 ~ 63 Hz
MTBF
120,000 hrs minimum (at 25 )
Input Current
10A

ENVIRONMENT
Operating Temp.
10 to 50
Storage Temp.
-20 to 70
Operating Humidity
20% to 90%, non-condensing
Storage Humidity
5% to 95%, non-condensing

PROTECTION

DC rail
Trigger Point/Range
Over Voltage Protection
+3.3V trip point
4.5 Vmax
+5.0V trip point
7.0 Vmax
+12.0V trip point
15.6 Vmax
Over Current Protection
+3.3V
33A ~ 50A
+5.0V
33A ~ 50A
+12V1 & +12V2
22A ~ 35A
+12V3 & +12V4
42A ~ 60A
Under Voltage Protection
+3.3V trip point
2.0 Vmin
+5.0V trip point
3.3 Vmin
+12.0V trip point
8.5 Vmin
Short Protection
All output to GND

OUTPUT
Voltage
+12V1
+12V4
+3.3V
+12V2
+12V3
+5V
-12V
+5Vsb
Max load
20A
40A
30A
20A
40A
30A
0.8A
3.5A
Min load
1A
1A
0.5A
1A
1A
0.5A
0A
0A
Ripple & Noise
240mV
240mV
100mV
240mV
240mV
100mV
240mV
100mV
Regulation
+3,-3%


 +3,-3%
+3,-3%

 +3,-3% +3,-3% +3,-3%
+10,-10%
+3,-5%
Max output power
750W
750W
9.6W
17.5W
Total power
1500W
Peak Power
1600W
* Add 0.1uF and 47uF capacitors across output terminal during ripple & noise test.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
