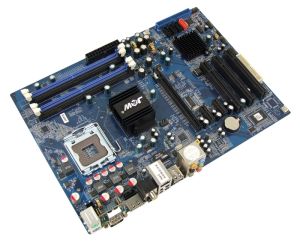

| CPU |
LGA775 for Intel Core 2 Extreme/ Quad/ Duo, Pentium Dual Core, Pentium D, Pentium 4, Celeron (Conroe-L) and next generation 45nm Processors
|
| Chipset |
1. Intel P35 + ICH9 Chipset |
| 2. Super I/O: W83627DHG |
| 3. Integrated Peripherals |
| 1. Marvell 88E8056 Gigabit LAN |
| 2. Realtek ALC883 8-CH HD Audio Codec |
| Memory |
1. 4 DDR2 DIMM memory slots |
| 2. Supports Dual Channel DDR2 800/667 |
| |
| Internal I/O Connectors |
1. One 24-pin ATX power connector |
| 2. One 8-pin ATX 12V power connector |
| 3. One floppy connector |
| 4. One IDE connector (for 2 PATA devices) |
| 5. Four SATA 3Gb/s connectors (when IDE device is connected, only 3 will be active) |
| 6. One CPU fan connector |
| 7. Two system fan connectors |
| 8. One front panel connector |
| 9. One front audio connector |
| 10. One CD In connector |
| 11. Four USB 2.0 headers for additional 8 USB 2.0 ports |
| 12. One IR connector |
| 13. One eSATA connector |
| 14. One COM connector |
| 15. One S/PDIF connector |
| |
| Expansion Slots |
1. Two PCI Express x 1 slot |
| 2. One PCI Express x 16 slot |
| 3. Three PCI slots |
| |
| Back Panel Connectors |
1. One PS/2 keyboard port |
| 2. One PS/2 mouse port |
| 3. One eSATA port |
| 4. Four USB 2.0 ports |
| 5. One RJ-45 ports |
| 6. Six audio jacks (Line In / Line Out / MIC In/ Rear Speaker Out / Center / Subwoofer Speaker Out / Side Speaker Out) |
| 7. Two S/PDIF ports |
| 8. One Debug Diagnosis LED* |
| |
9. One COM port |
| |
|
| Power |
ATX power connector and ATX 12V connector |
| Form Factor |
ATX form factor; 220mm x 305mm |
| BIOS |
1. One 8Mbit flash ROM* |
| 2. Use of licensed AWARD BIOS |
| |
| Remark |
Solid Capacitors on PWM Area, SPDIF, eSATA, Debug LED |
