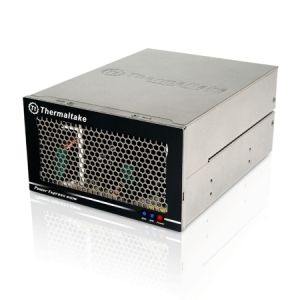

ThermalTake 650W Toughpower Videocard Power Supply - Fits 2x 5.25" Bays, 2x 80mm Fan, for Graphics Cards
  • 2x PCI-E 8-pin, 2x PCI-E 6-pin

IMG 1 of 1
No Longer Available
Part Number:
84028
(?) Brand:
ThermalTake Web Site
Manuf No:
W0158R
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
30/4/2008
Details Files Images & Video
All stock codes associated to this product
W0158R



PCI Express x4
Dual GPU Ready
Support NVIDIA SLI & other multi-GPU technologies
TWO 6-pin & TWO 8-pin PCI-Express connectors support up to four graphic card setup
Excellent and stable output maximize the performance of the graphic card(s)
Share the loading and increase the lifespan of existing main power supply
Money Saving: greatly increase the output wattage and no need to purchase a new
high-end power supply
Three LED display: red LED for power, two blue LED for 12V1 and 12V2.
Great reliability: MTBF > 100,000 hours.
Protections: Short-Circuit , Over Voltage Protection, and Over Current protections.
Safety / EMI Approvals: UL, CUL, TUV, FCC, BSMI and CE certified.



Connectors
24-pin adapter: to connect main PSU & MB & Power Express


8-pin PCI-E Connector X 2
6-pin PCI-E Connector X 2 2-pin Connector: receive signal from Main PSU for synchronal Power ON/OFF.

Technology Features
Elegant Appearance
3 LED indicate the single of power, +12V1, and +12V2
AC power cord: connect through the PCI-Slot.

Performance
OUTPUT
Voltage
+12V1
+12V2
Max. Load
30A
30A
Min. Load
0.1A
0.1A
Output Voltage
650W

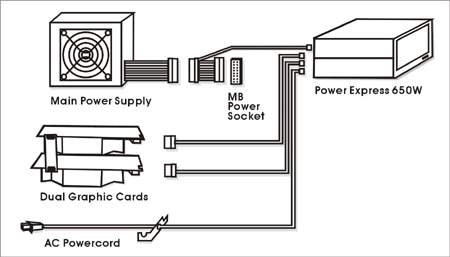

Power Express Installation Loop

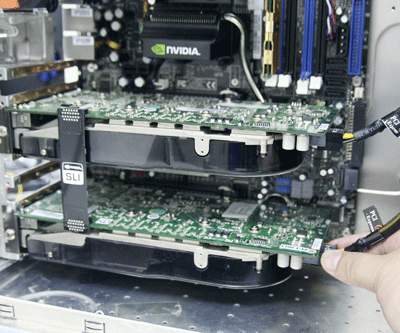

Application for PC System




Model
W0158
Maximum Power
650 Watts (Peak Load: 750Watts)
Color
High-tech Black

Switches
ATX Logic on-off additional power rocker switch
PFC
Active PFC

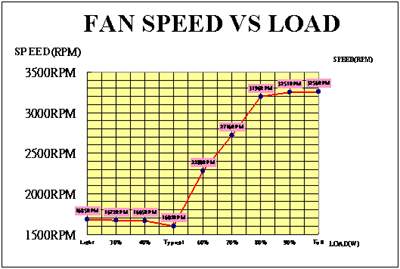

Cooling System
8 cm Fan
SPEED: 3100 (+/- 10%) RPM
DIMENSION: 80 X 80 X 25 mm
AIR FLOW: 39.6 CFM
TEMP. AUTO CONTROL
Noise
Less than 30db in average
Over Current Protection
+12V1 35A~45A
+12V2 35A~45A

Dimensions

Unit Size
18.5cm(L)x14.8cm(W)x8.4cm(H)

INPUT
Input Voltage
100~230VAC (Range:90VAC~264VAC)
Input Frequency Range
47 ~ 63 Hz
Input Current
9A Max.
Hold-up Time
16ms
Efficiency
80% at full load

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]
